Suzuki DF 115BT Parts Listings - 2023
S/N 11506F-340001 to 11506F-34XXXX
S/N DF 115BTZ 11506Z-340001 to 11506Z-34XXXX

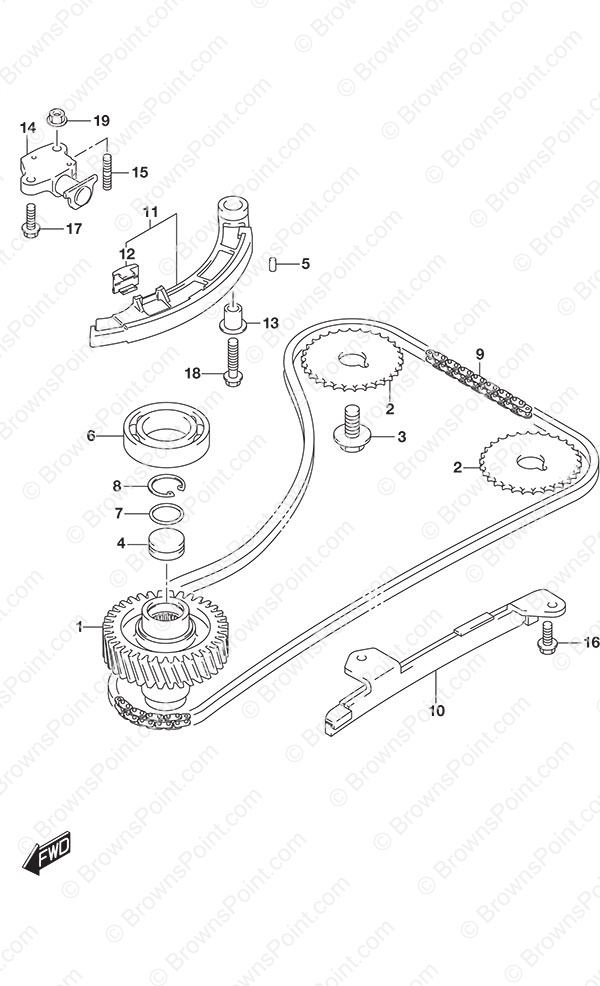

Fig. 119 - Timing Chain
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12732-90J01 GEAR,DRIVEN
SKU: 12732-90J01 Weight: 1.500000 Brand: Price: $ 168.29 |
GEAR,DRIVEN | 1 | $ 168.29 | ||
| 2 | 12741-90J01 Camshaft Timing Sprocket
SKU: 12741-90J01 Weight: 0.100000 Brand: Price: $ 21.84 |
Camshaft Timing Sprocket | 2 | $ 21.84 | ||
| 3 | 09103-12049 Bolt (12x25)
SKU: 09103-12049 Weight: 0.060000 Brand: Price: $ 4.27 |
Bolt (12x25) | 2 | $ 4.27 | ||
| 4 | 12733-90J00 Driven Gear Plug
SKU: 12733-90J00 Weight: 0.100000 Brand: Price: $ 8.02 |
Driven Gear Plug | 1 | $ 8.02 | ||
| 5 | 04221-05109 PIN
SKU: 04221-05109 Weight: 0.125000 Brand: Price: $ 1.49 |
PIN | 2 | $ 1.49 | ||
| 6 | 09262-35068 Bearing (35x62x14)
SKU: 09262-35068 Weight: 0.340000 Brand: Price: $ 55.94 |
Bearing (35x62x14) | 1 | $ 55.94 | Upper | |
| 7 | 09280-22022 O-Ring
SKU: 09280-22022 Weight: 0.060000 Brand: Price: $ 4.92 |
O-Ring | 1 | $ 4.92 | ||
| 8 | 08331-41269 Circlip
SKU: 08331-41269 Weight: 0.100000 Brand: Price: $ 2.37 |
Circlip | 1 | $ 2.37 | ||
| 9 | 12761-90J00 Timing Chain
SKU: 12761-90J00 Weight: 0.700000 Brand: Price: $ 95.23 |
Timing Chain | 1 | $ 95.23 | ||
| 10 | 12771-90J00 Timing Chain Guide
SKU: 12771-90J00 Weight: 0.400000 Brand: Price: $ 54.59 |
Timing Chain Guide | 1 | $ 54.59 | ||
| 11 | 12810-90J00 Timing Chain Tensioner
SKU: 12810-90J00 Weight: 0.100000 Brand: Price: $ 78.25 |
Timing Chain Tensioner | 1 | $ 78.25 | ||
| 12 | 12813-73G00 Timing Chain Tensioner Pad
SKU: 12813-73G00 Weight: 0.100000 Brand: Price: $ 4.09 |
Timing Chain Tensioner Pad | 1 | $ 4.09 | ||
| 13 | 12812-90J00 Timing Chain Tensioner Spacer
SKU: 12812-90J00 Weight: 0.100000 Brand: Price: $ 7.10 |
Timing Chain Tensioner Spacer | 1 | $ 7.10 | ||
| 14 | 12831-90J02 Tensioner Adjuster Assembly
SKU: 12831-90J02 Weight: 0.320000 Brand: Price: $ 108.92 |
Tensioner Adjuster Assembly | 1 | $ 108.92 | ||
| 15 | 01421-0616A BOLT,STUD
SKU: 01421-0616A Weight: 0.100000 Brand: Price: $ 1.91 |
BOLT,STUD | 1 | $ 1.91 | ||
| 16 | 01550-0616A BOLT
SKU: 01550-0616A Weight: 0.100000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 | ||
| 17 | 01550-0620A BOLT
SKU: 01550-0620A Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 1 | $ 1.97 | ||
| 18 | 01550-0835A BOLT
SKU: 01550-0835A Weight: 0.060000 Brand: Price: $ 3.09 |
BOLT | 1 | $ 3.09 | ||
| 19 | 08316-1006A Nut
SKU: 08316-1006A Weight: 0.100000 Brand: Price: $ 2.21 |
Nut | 1 | $ 2.21 |
