Suzuki DF 350A Parts Listings - 2023
S/N 35001F-340001 to 35001F-34XXXX

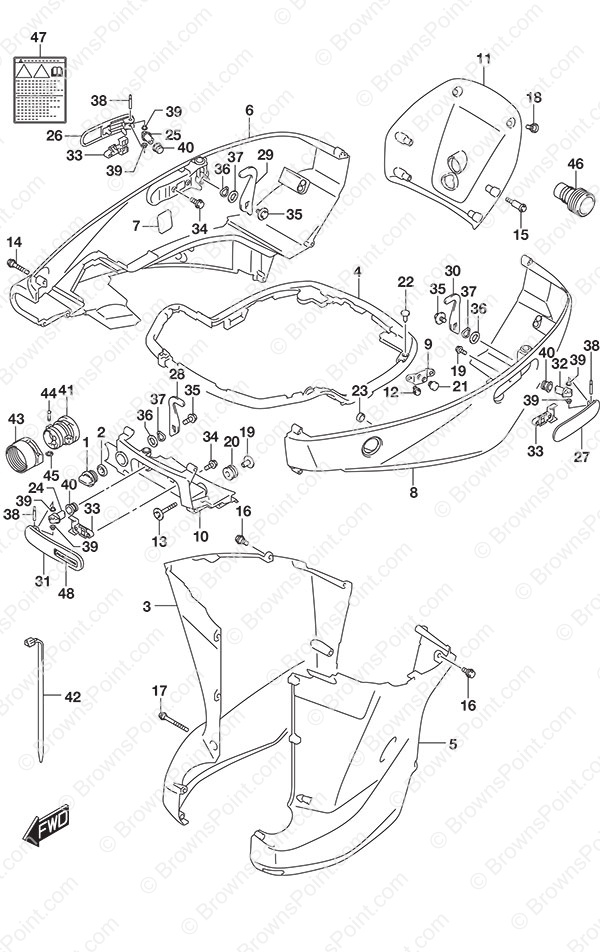

Fig. 410 - Side Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17913-93J00 Water Flush Plug
SKU: 17913-93J00 Weight: 0.060000 Brand: Price: $ 4.56 |
Water Flush Plug | 1 | $ 4.56 | ||
| 2 | 17914-93J01 Water Flush Plug Gasket
SKU: 17914-93J01 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Flush Plug Gasket | 1 | $ 2.28 | ||
| 3-1 | 61131-98L02-YAY Starboard Oil Pan Cover
SKU: 61131-98L02-YAY Weight: 8.000000 Brand: Price: $ 498.58 |
Starboard Oil Pan Cover | 1 | $ 498.58 | Black | |
| 3-2 | 61131-98L02-QTN COVER,OIL PAN S
SKU: 61131-98L02-QTN Weight: 0.000000 Brand: Price: $ 438.82 |
COVER,OIL PAN S | 1 | $ 438.82 | White | |
| 4 | 61134-98L00 Engine Holder Seal
SKU: 61134-98L00 Weight: 0.500000 Brand: Price: $ 79.33 |
Engine Holder Seal | 1 | $ 79.33 | ||
| 5-1 | 61140-98L02-YAY Port Oil Pan Cover
SKU: 61140-98L02-YAY Weight: 8.000000 Brand: Price: $ 532.39 |
Port Oil Pan Cover | 1 | $ 532.39 | Black | |
| 5-2 | 61140-98L02-QTN COVER COMP,OIL
SKU: 61140-98L02-QTN Weight: 0.000000 Brand: Price: $ 482.63 |
COVER COMP,OIL | 1 | $ 482.63 | White | |
| 6-1 | 61810-98L00-YAY Starboard Side Cover
SKU: 61810-98L00-YAY Weight: 8.000000 Brand: Price: $ 361.07 |
Starboard Side Cover | 1 | $ 361.07 | Black | |
| 6-2 | 61810-98L00-QTN COVER,SIDE STBD
SKU: 61810-98L00-QTN Weight: 0.000000 Brand: Price: $ 311.99 |
COVER,SIDE STBD | 1 | $ 311.99 | White | |
| 7 | 61814-98L00 Side Cover Protector
SKU: 61814-98L00 Weight: 0.060000 Brand: Price: $ 3.64 |
Side Cover Protector | 2 | $ 3.64 | ||
| 8-1 | 61820-98L00-YAY Port Side Cover
SKU: 61820-98L00-YAY Weight: 8.000000 Brand: Price: $ 355.53 |
Port Side Cover | 1 | $ 355.53 | Black | |
| 8-2 | 61820-98L00-QTN COVER COMP,SIDE
SKU: 61820-98L00-QTN Weight: 0.000000 Brand: Price: $ 315.94 |
COVER COMP,SIDE | 1 | $ 315.94 | White | |
| 9 | 61827-98L00 Side Cover Holder
SKU: 61827-98L00 Weight: 0.060000 Brand: Price: $ 18.07 |
Side Cover Holder | 1 | $ 18.07 | ||
| 10-1 | 61830-98L00-YAY Front Panel
SKU: 61830-98L00-YAY Weight: 0.250000 Brand: Price: $ 144.18 |
Front Panel | 1 | $ 144.18 | Black | |
| 10-2 | 61830-98L00-QTN PANEL COMP,FRON
SKU: 61830-98L00-QTN Weight: 0.000000 Brand: Price: $ 124.42 |
PANEL COMP,FRON | 1 | $ 124.42 | White | |
| 11 | 61861-98L00-20H Rear Panel
SKU: 61861-98L00-20H Weight: 1.000000 Brand: Price: $ 101.30 |
Rear Panel | 1 | $ 101.30 | Silver | |
| 12 | 01550-0816C Bolt
SKU: 01550-0816C Weight: 0.060000 Brand: Price: $ 0.00 |
Bolt | 2 | $ 0.00 | ||
| 13 | 09116-08170 Bolt (8x60)
SKU: 09116-08170 Weight: 0.060000 Brand: Price: $ 4.89 |
Bolt (8x60) | 2 | $ 4.89 | ||
| 14 | 09139-06249 SCREW
SKU: 09139-06249 Weight: 0.000000 Brand: Price: $ 1.96 |
SCREW | 8 | $ 1.96 | ||
| 15 | 09111-06253 Bolt
SKU: 09111-06253 Weight: 0.060000 Brand: Price: $ 9.11 |
Bolt | 4 | $ 9.11 | ||
| 16 | 09139-06135 Oil Pan Cover Screw (6x17)
SKU: 09139-06135 Weight: 0.060000 Brand: Price: $ 5.02 |
Oil Pan Cover Screw (6x17) | 9 | $ 5.02 | S/N 910001 to 910017 | |
| 17 | 09139-06136 Oil Pan Cover Screw (6x65)
SKU: 09139-06136 Weight: 0.125000 Brand: Price: $ 15.01 |
Oil Pan Cover Screw (6x65) | 2 | $ 15.01 | ||
| 18 | 09139-06135 Oil Pan Cover Screw (6x17)
SKU: 09139-06135 Weight: 0.060000 Brand: Price: $ 5.02 |
Oil Pan Cover Screw (6x17) | 2 | $ 5.02 | ||
| 19 | 09169-08050 Front Panel Washer
SKU: 09169-08050 Weight: 0.060000 Brand: Price: $ 6.25 |
Front Panel Washer | 2 | $ 6.25 | ||
| 20 | 09320-11023 CUSHION,FRONT P
SKU: 09320-11023 Weight: 0.000000 Brand: Price: $ 2.91 |
CUSHION,FRONT P | 2 | $ 2.91 | ||
| 21 | 09321-10049 CUSHION,SIDE CO
SKU: 09321-10049 Weight: 0.000000 Brand: Price: $ 1.99 |
CUSHION,SIDE CO | 2 | $ 1.99 | ||
| 22 | 09409-05302 09409-05302
SKU: 09409-05302 Weight: Brand: Price: $ 0.89 |
09409-05302 | 2 | $ 0.89 | ||
| 23 | 09329-14003 Side Cover Cushion
SKU: 09329-14003 Weight: 0.100000 Brand: Price: $ 2.72 |
Side Cover Cushion | 1 | $ 2.72 | ||
| 24 | 61632-93J00 Engine Cover Hook Shaft
SKU: 61632-93J00 Weight: 0.125000 Brand: Price: $ 37.52 |
Engine Cover Hook Shaft | 1 | $ 37.52 | ||
| 25 | 61632-98L00 Starboard Engine Cover Hook Shaft
SKU: 61632-98L00 Weight: 0.060000 Brand: Price: $ 29.26 |
Starboard Engine Cover Hook Shaft | 1 | $ 29.26 | ||
| 26-1 | 61633-93J00-YAY Starboard Rear Hook Lever
SKU: 61633-93J00-YAY Weight: 0.200000 Brand: Price: $ 173.31 |
Starboard Rear Hook Lever | 1 | $ 173.31 | Black | |
| 26-2 | 61633-93J00-QTN LEVER,HOOK RR S
SKU: 61633-93J00-QTN Weight: 0.000000 Brand: Price: $ 94.25 |
LEVER,HOOK RR S | 1 | $ 94.25 | White | |
| 27-1 | 61634-93J00-YAY Port Rear Hook Lever
SKU: 61634-93J00-YAY Weight: 0.180000 Brand: Price: $ 137.77 |
Port Rear Hook Lever | 1 | $ 137.77 | Black | |
| 27-2 | 61634-93J00-QTN LEVER,HOOK RR P
SKU: 61634-93J00-QTN Weight: 0.000000 Brand: Price: $ 94.25 |
LEVER,HOOK RR P | 1 | $ 94.25 | White | |
| 28 | 61641-93J10 Engine Cover Hook
SKU: 61641-93J10 Weight: 0.080000 Brand: Price: $ 27.45 |
Engine Cover Hook | 1 | $ 27.45 | ||
| 29 | 61641-93J10 Engine Cover Hook
SKU: 61641-93J10 Weight: 0.080000 Brand: Price: $ 27.45 |
Engine Cover Hook | 1 | $ 27.45 | Rear Starboard | |
| 30 | 61641-93J20 Engine Cover Hook
SKU: 61641-93J20 Weight: 0.140000 Brand: Price: $ 28.38 |
Engine Cover Hook | 1 | $ 28.38 | Rear Port | |
| 31-1 | 61645-93J01-YAY Front Hook Lever
SKU: 61645-93J01-YAY Weight: 0.200000 Brand: Price: $ 136.50 |
Front Hook Lever | 1 | $ 136.50 | Black | |
| 31-2 | 61645-93J01-QTN LEVER,HOOK FRON
SKU: 61645-93J01-QTN Weight: 0.000000 Brand: Price: $ 94.25 |
LEVER,HOOK FRON | 1 | $ 94.25 | White | |
| 32 | 61652-98L00 Port Engine Cover Hook Shaft
SKU: 61652-98L00 Weight: 0.060000 Brand: Price: $ 28.72 |
Port Engine Cover Hook Shaft | 1 | $ 28.72 | ||
| 33 | 61673-93J02 LATCH,HOOK LEVE
SKU: 61673-93J02 Weight: 0.000000 Brand: Price: $ 9.52 |
LATCH,HOOK LEVE | 3 | $ 9.52 | ||
| 34 | 09103-05026 Bolt (5x10)
SKU: 09103-05026 Weight: 0.060000 Brand: Price: $ 1.94 |
Bolt (5x10) | 6 | $ 1.94 | ||
| 35 | 09116-06127 Bolt (6x12)
SKU: 09116-06127 Weight: 0.060000 Brand: Price: $ 2.98 |
Bolt (6x12) | 3 | $ 2.98 | ||
| 36 | 09160-13014 Washer (13.2x25x1.0)
SKU: 09160-13014 Weight: 0.060000 Brand: Price: $ 2.99 |
Washer (13.2x25x1.0) | 3 | $ 2.99 | ||
| 37 | 09164-14008 Wave Washer
SKU: 09164-14008 Weight: 0.060000 Brand: Price: $ 2.04 |
Wave Washer | 3 | $ 2.04 | ||
| 38 | 09202-04022 Hook Lever Pin
SKU: 09202-04022 Weight: 0.060000 Brand: Price: $ 2.82 |
Hook Lever Pin | 3 | $ 2.82 | ||
| 39 | 09306-04005 Hook Lever Bushing
SKU: 09306-04005 Weight: 0.060000 Brand: Price: $ 3.19 |
Hook Lever Bushing | 6 | $ 3.19 | ||
| 40 | 09306-13007 Bushing
SKU: 09306-13007 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 3 | $ 2.81 | ||
| 41 | 61124-98L20 Remocon Cable Grommet
SKU: 61124-98L20 Weight: 0.250000 Brand: Price: $ 23.96 |
Remocon Cable Grommet | 1 | $ 23.96 | ||
| 42 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 43 | 67361-90J10 Rigging Hose Adapter
SKU: 67361-90J10 Weight: 0.500000 Brand: Price: $ 8.36 |
Rigging Hose Adapter | 1 | $ 8.36 | ||
| 44-1 | 09208-06009 Hose Adapter Pin
SKU: 09208-06009 Weight: 0.125000 Brand: Price: $ 1.88 |
Hose Adapter Pin | 2 | $ 1.88 | Use with E Ring | |
| 44-2 | 09208-06011 PIN,HOSE ADAPTE
SKU: 09208-06011 Weight: 0.000000 Brand: Price: $ 1.96 |
PIN,HOSE ADAPTE | 2 | $ 1.96 | ||
| 45 | 09383-04002 E Ring
SKU: 09383-04002 Weight: 0.060000 Brand: Price: $ 0.76 |
E Ring | 2 | $ 0.76 | ||
| 46 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.07 |
Water Flush Connector | 1 | $ 10.07 | ||
| 47 | 61458-90J01 Engine Cover Label
SKU: 61458-90J01 Weight: 0.125000 Brand: Price: $ 4.27 |
Engine Cover Label | 1 | $ 4.27 | ||
| 48-1 | 61649-93J00 Hook Lever Label
SKU: 61649-93J00 Weight: 0.060000 Brand: Price: $ 5.65 |
Hook Lever Label | 1 | $ 5.65 | For Black | |
| 48-2 | 61649-93J10 Hook Lever Label
SKU: 61649-93J10 Weight: 0.060000 Brand: Price: $ 4.95 |
Hook Lever Label | 1 | $ 4.95 | For White |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
