Suzuki DF 350A Parts Listings - 2023
S/N 35001F-340001 to 35001F-34XXXX

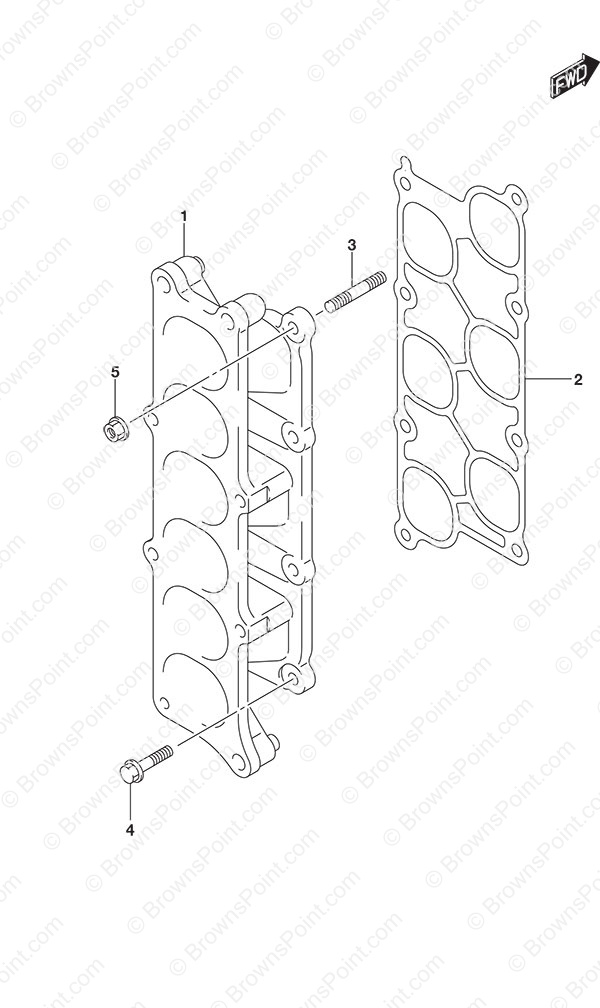

Fig. 122 - Intake Manifold
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13111-98L00 Intake Manifold
SKU: 13111-98L00 Weight: 0.000000 Brand: Price: $ 558.43 |
Intake Manifold | 1 | $ 558.43 | ||
| 2 | 13119-98L00 Intake Manifold Gasket
SKU: 13119-98L00 Weight: 0.250000 Brand: Price: $ 30.75 |
Intake Manifold Gasket | 1 | $ 30.75 | ||
| 3 | 09108-08143 Stud Bolt
SKU: 09108-08143 Weight: 0.060000 Brand: Price: $ 0.00 |
Stud Bolt | 2 | $ 0.00 | ||
| 4 | 09116-08158 Bolt (8x35)
SKU: 09116-08158 Weight: 0.250000 Brand: Price: $ 7.60 |
Bolt (8x35) | 6 | $ 7.60 | ||
| 5 | 08316-1008C Nut
SKU: 08316-1008C Weight: 0.060000 Brand: Price: $ 0.00 |
Nut | 2 | $ 0.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
