Suzuki DF 300B Parts Listings - 2023
S/N 30003F-340001 to 30003F-34XXXX

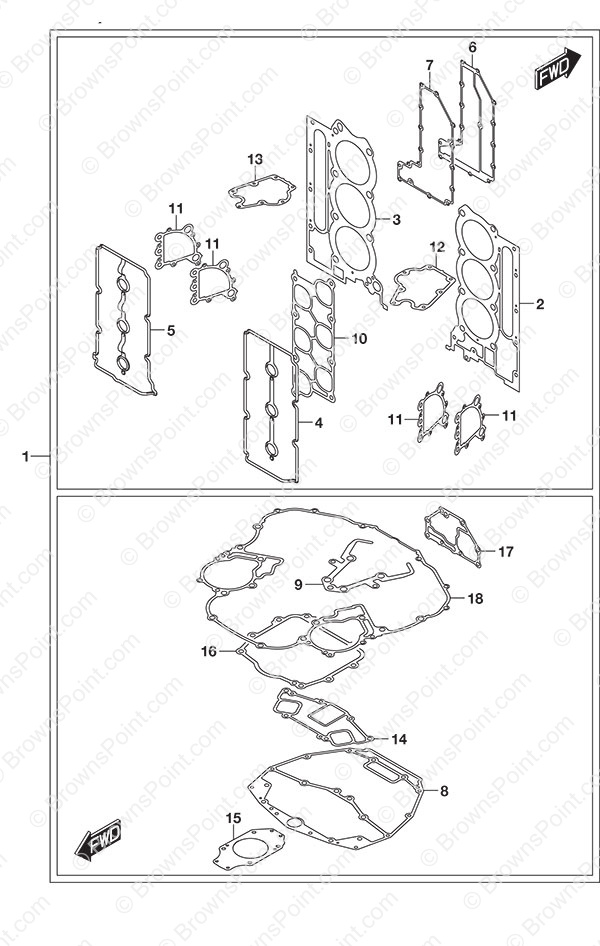

Fig. 585 - Opt: Gasket Set
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11410-98841 Engine Gasket Set
SKU: 11410-98841 Weight: 5.000000 Brand: Price: $ 438.56 |
Engine Gasket Set | 1 | $ 438.56 | ||
| 2 | 11141-98L00 Cylinder Head Gasket - Starboard
SKU: 11141-98L00 Weight: 1.000000 Brand: Price: $ 85.09 |
Cylinder Head Gasket - Starboard | 1 | $ 85.09 | ||
| 3 | 11142-98L00 Cylinder Head Gasket - Port
SKU: 11142-98L00 Weight: 1.000000 Brand: Price: $ 88.32 |
Cylinder Head Gasket - Port | 1 | $ 88.32 | ||
| 4 | 11179-93J00 Cylinder Head Cover Gasket - Starboard
SKU: 11179-93J00 Weight: 0.125000 Brand: Price: $ 22.76 |
Cylinder Head Cover Gasket - Starboard | 1 | $ 22.76 | ||
| 5 | 11189-93J00 Cylinder Head Cover Gasket - Port
SKU: 11189-93J00 Weight: 0.125000 Brand: Price: $ 22.00 |
Cylinder Head Cover Gasket - Port | 1 | $ 22.00 | ||
| 6 | 11332-98L00 Crankcase Water Jacket Cover Gasket
SKU: 11332-98L00 Weight: 0.250000 Brand: Price: $ 28.02 |
Crankcase Water Jacket Cover Gasket | 1 | $ 28.02 | ||
| 7 | 11333-98L00 Crancase Oil Cover Gasket
SKU: 11333-98L00 Weight: 0.250000 Brand: Price: $ 26.93 |
Crancase Oil Cover Gasket | 1 | $ 26.93 | ||
| 8 | 11489-98L00 Oil Pan Gasket
SKU: 11489-98L00 Weight: 0.250000 Brand: Price: $ 52.11 |
Oil Pan Gasket | 1 | $ 52.11 | ||
| 9 | 12778-98L00 Guide Base Gasket
SKU: 12778-98L00 Weight: 0.125000 Brand: Price: $ 12.24 |
Guide Base Gasket | 1 | $ 12.24 | ||
| 10 | 13119-98L00 Intake Manifold Gasket
SKU: 13119-98L00 Weight: 0.250000 Brand: Price: $ 30.75 |
Intake Manifold Gasket | 1 | $ 30.75 | ||
| 11 | 14151-98L00 Exhaust Cover Gasket
SKU: 14151-98L00 Weight: 0.060000 Brand: Price: $ 11.66 |
Exhaust Cover Gasket | 4 | $ 11.66 | ||
| 12 | 14181-98L01 Starboard Upper Exhaust Cover Gasket
SKU: 14181-98L01 Weight: 0.120000 Brand: Price: $ 7.92 |
Starboard Upper Exhaust Cover Gasket | 1 | $ 7.92 | ||
| 13 | 14182-98L01 Port Upper Exhaust Cover Gasket
SKU: 14182-98L01 Weight: 0.120000 Brand: Price: $ 7.92 |
Port Upper Exhaust Cover Gasket | 1 | $ 7.92 | ||
| 14 | 14212-98L00 Exhaust Tube Gasket
SKU: 14212-98L00 Weight: 0.125000 Brand: Price: $ 11.25 |
Exhaust Tube Gasket | 1 | $ 11.25 | ||
| 15 | 17472-98L00 Water Pump Plate Gasket
SKU: 17472-98L00 Weight: 0.060000 Brand: Price: $ 8.02 |
Water Pump Plate Gasket | 1 | $ 8.02 | ||
| 16 | 51123-98L00 Mount Oil Seal Cover Gasket
SKU: 51123-98L00 Weight: 0.060000 Brand: Price: $ 7.21 |
Mount Oil Seal Cover Gasket | 1 | $ 7.21 | ||
| 17 | 51142-98L00 Engine Holder Cover Gasket
SKU: 51142-98L00 Weight: 0.060000 Brand: Price: $ 7.28 |
Engine Holder Cover Gasket | 1 | $ 7.28 | ||
| 18 | 51211-98L00 Engine Holder Gasket
SKU: 51211-98L00 Weight: 1.000000 Brand: Price: $ 71.43 |
Engine Holder Gasket | 1 | $ 71.43 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
