Suzuki DF 300B Parts Listings - 2023
S/N 30003F-340001 to 30003F-34XXXX

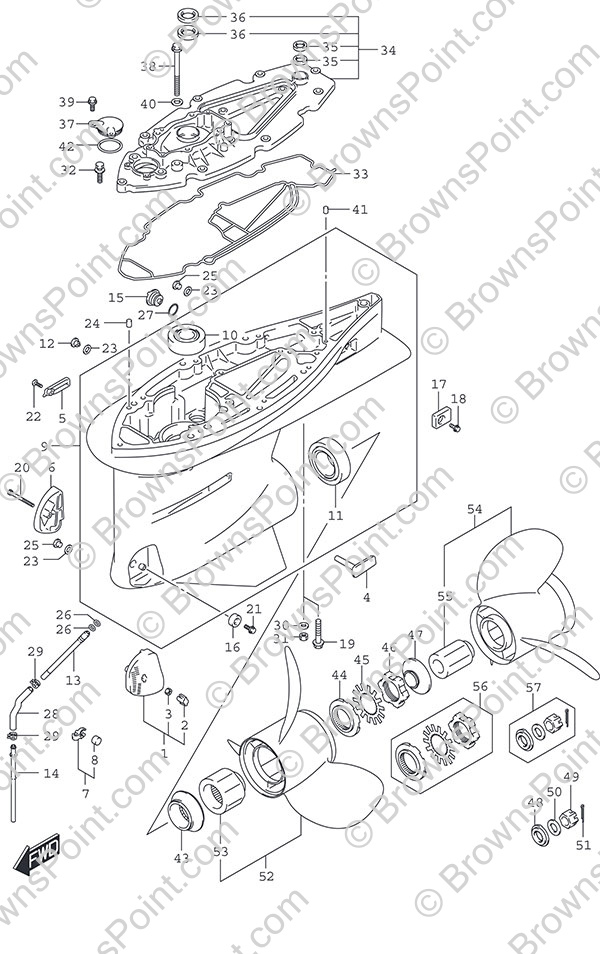

Fig. 407 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17630-87M00 FILTER COMP,WAT
SKU: 17630-87M00 Weight: 0.000000 Brand: Price: $ 21.90 |
FILTER COMP,WAT | 1 | $ 21.90 | ||
| 2 | 17633-87M00 CAP,WATER FILTE
SKU: 17633-87M00 Weight: 0.000000 Brand: Price: $ 6.40 |
CAP,WATER FILTE | 1 | $ 6.40 | ||
| 3 | 09140-04007 Nut
SKU: 09140-04007 Weight: 0.060000 Brand: Price: $ 2.28 |
Nut | 1 | $ 2.28 | ||
| 4 | 17631-87M00 FILTER,WATER PO
SKU: 17631-87M00 Weight: 0.000000 Brand: Price: $ 6.29 |
FILTER,WATER PO | 1 | $ 6.29 | ||
| 5 | 17632-87M00 FILTER,WATER ST
SKU: 17632-87M00 Weight: 0.000000 Brand: Price: $ 6.40 |
FILTER,WATER ST | 1 | $ 6.40 | ||
| 6 | 17638-87M00 FILTER,WATER ST
SKU: 17638-87M00 Weight: 0.000000 Brand: Price: $ 11.00 |
FILTER,WATER ST | 1 | $ 11.00 | ||
| 7 | 25230-94300 Gear Case Magnet Set
SKU: 25230-94300 Weight: 0.060000 Brand: Price: $ 17.66 |
Gear Case Magnet Set | 2 | $ 17.66 | ||
| 8 | 25232-94300 Gear Case Magnet
SKU: 25232-94300 Weight: 0.125000 Brand: Price: $ 3.25 |
Gear Case Magnet | 2 | $ 3.25 | ||
| 9-1 | 55100-87810-YAY CASE SET,GEAR
SKU: 55100-87810-YAY Weight: 0.000000 Brand: Price: $ 1,503.07 |
CASE SET,GEAR | 1 | $ 1,503.07 | Black | |
| 9-2 | 55100-87810-QTN CASE SET,GEAR
SKU: 55100-87810-QTN Weight: 0.000000 Brand: Price: $ 1,503.07 |
CASE SET,GEAR | 1 | $ 1,503.07 | White | |
| 10 | 57710-98L00 Contra Pinion Bearing
SKU: 57710-98L00 Weight: 0.250000 Brand: Price: $ 76.70 |
Contra Pinion Bearing | 1 | $ 76.70 | w/Transom (XX) | |
| 11 | 09265-50001 Bearing (50x90x32)
SKU: 09265-50001 Weight: 2.000000 Brand: Price: $ 138.71 |
Bearing (50x90x32) | 1 | $ 138.71 | w/Transom (XX) | |
| 12 | 55128-87M00 Drain Plug
SKU: 55128-87M00 Weight: 0.000000 Brand: Price: $ 8.71 |
Drain Plug | 1 | $ 8.71 | ||
| 13 | 55131-87M00 PIPE,OIL CHANGE
SKU: 55131-87M00 Weight: 0.000000 Brand: Price: $ 10.00 |
PIPE,OIL CHANGE | 1 | $ 10.00 | ||
| 14 | 55132-87M00 PIPE,OIL CHANGE
SKU: 55132-87M00 Weight: 0.000000 Brand: Price: $ 10.00 |
PIPE,OIL CHANGE | 1 | $ 10.00 | ||
| 15 | 55134-87M00 PLUG,OIL CHANGE
SKU: 55134-87M00 Weight: 0.000000 Brand: Price: $ 33.95 |
PLUG,OIL CHANGE | 1 | $ 33.95 | Includes Fig 220 Ref# 38 | |
| 16 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 17 | 55321-93J01 Protection Anode
SKU: 55321-93J01 Weight: 0.125000 Brand: Price: $ 15.13 |
Protection Anode | 4 | $ 15.13 | ||
| 18 | 09116-06236 Bolt (6x16)
SKU: 09116-06236 Weight: 0.060000 Brand: Price: $ 1.78 |
Bolt (6x16) | 4 | $ 1.78 | ||
| 19 | 09116-10150 Bolt (10x55)
SKU: 09116-10150 Weight: 0.200000 Brand: Price: $ 15.95 |
Bolt (10x55) | 6 | $ 15.95 | ||
| 20 | 09125-04020 Screw
SKU: 09125-04020 Weight: 0.060000 Brand: Price: $ 2.20 |
Screw | 1 | $ 2.20 | ||
| 21 | 09128-06094 BOLT,ANODE PROT
SKU: 09128-06094 Weight: 0.000000 Brand: Price: $ 0.82 |
BOLT,ANODE PROT | 1 | $ 0.82 | ||
| 22 | 09132-04034 Screw (4x18)
SKU: 09132-04034 Weight: 0.060000 Brand: Price: $ 2.21 |
Screw (4x18) | 1 | $ 2.21 | ||
| 23 | 09168-10038 GASKET,DRAIN PL
SKU: 09168-10038 Weight: 0.000000 Brand: Price: $ 2.23 |
GASKET,DRAIN PL | 3 | $ 2.23 | ||
| 24 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 25 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 2 | $ 6.59 | ||
| 26 | 09280-08005 O-Ring
SKU: 09280-08005 Weight: 0.060000 Brand: Price: $ 1.78 |
O-Ring | 2 | $ 1.78 | ||
| 28 | 09352-70119-100 HOSE(7X11X100)
SKU: 09352-70119-100 Weight: 0.000000 Brand: Price: $ 1.76 |
HOSE(7X11X100) | 1 | $ 1.76 | ||
| 29 | 09401-11424 Clip
SKU: 09401-11424 Weight: 0.000000 Brand: Price: $ 1.87 |
Clip | 2 | $ 1.87 | ||
| 30 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 6 | $ 2.04 | ||
| 31 | 09160-10165 WASHER,ATTACHME
SKU: 09160-10165 Weight: 0.000000 Brand: Price: $ 4.00 |
WASHER,ATTACHME | 6 | $ 4.00 | ||
| 32 | 29116-93J10 Bolt (8x35)
SKU: 29116-93J10 Weight: 0.060000 Brand: Price: $ 2.90 |
Bolt (8x35) | 11 | $ 2.90 | ||
| 33 | 55122-87M00 Drive Shaft Housing Seal
SKU: 55122-87M00 Weight: 0.000000 Brand: Price: $ 53.54 |
Drive Shaft Housing Seal | 1 | $ 53.54 | ||
| 34 | 56130-87M00 HOUSING COMP,DR
SKU: 56130-87M00 Weight: 0.000000 Brand: Price: $ 286.44 |
HOUSING COMP,DR | 1 | $ 286.44 | ||
| 35 | 51124-93J01 Oil Seal
SKU: 51124-93J01 Weight: 0.060000 Brand: Price: $ 7.75 |
Oil Seal | 2 | $ 7.75 | ||
| 36 | 09282-15010 Oil Seal
SKU: 09282-15010 Weight: 0.060000 Brand: Price: $ 5.16 |
Oil Seal | 2 | $ 5.16 | ||
| 37 | 09282-15010 Oil Seal
SKU: 09282-15010 Weight: 0.060000 Brand: Price: $ 5.16 |
Oil Seal | 1 | $ 5.16 | ||
| 38 | 09103-10461 Bolt (10x107)
SKU: 09103-10461 Weight: 0.125000 Brand: Price: $ 18.40 |
Bolt (10x107) | 4 | $ 18.40 | ||
| 39 | 09116-06236 Bolt (6x16)
SKU: 09116-06236 Weight: 0.060000 Brand: Price: $ 1.78 |
Bolt (6x16) | 2 | $ 1.78 | ||
| 40 | 09169-10023 Washer
SKU: 09169-10023 Weight: 0.060000 Brand: Price: $ 5.73 |
Washer | 4 | $ 5.73 | ||
| 41 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 1 | $ 2.07 | ||
| 42 | 09280-40019 O-Ring
SKU: 09280-40019 Weight: 0.060000 Brand: Price: $ 5.87 |
O-Ring | 1 | $ 5.87 | ||
| 43 | 58531-98L00 Front Propeller Stopper Bushing
SKU: 58531-98L00 Weight: 0.250000 Brand: Price: $ 59.98 |
Front Propeller Stopper Bushing | 1 | $ 59.98 | ||
| 44 | 58541-98L00 Front Propeller Nut Spacer
SKU: 58541-98L00 Weight: 0.250000 Brand: Price: $ 43.54 |
Front Propeller Nut Spacer | 1 | $ 43.54 | ||
| 45 | 58551-98L00 Front Propeller Nut Stopper
SKU: 58551-98L00 Weight: 0.200000 Brand: Price: $ 6.80 |
Front Propeller Nut Stopper | 1 | $ 6.80 | ||
| 46 | 58561-98L01 NUT,FRONT PROPE
SKU: 58561-98L01 Weight: 0.000000 Brand: Price: $ 127.24 |
NUT,FRONT PROPE | 1 | $ 127.24 | ||
| 47 | 58631-98L00 Rear Propeller Stopper Bushing
SKU: 58631-98L00 Weight: 0.250000 Brand: Price: $ 44.11 |
Rear Propeller Stopper Bushing | 1 | $ 44.11 | ||
| 48 | 58641-98L00 Rear Propeller Nut Spacer
SKU: 58641-98L00 Weight: 0.180000 Brand: Price: $ 34.76 |
Rear Propeller Nut Spacer | 1 | $ 34.76 | ||
| 49 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | ||
| 50 | 09160-18019 Washer (18.5x32x2.5)
SKU: 09160-18019 Weight: 0.060000 Brand: Price: $ 2.26 |
Washer (18.5x32x2.5) | 1 | $ 2.26 | ||
| 51 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 52-1 | 990C0-0091F-12P 990C0-0091F-12P
SKU: 990C0-0091F-12P Weight: Brand: Price: $ 0.00 |
990C0-0091F-12P | 1 | $ 0.00 | ||
| 52-2 | 990C0-0091F-15P 990C0-0091F-15P
SKU: 990C0-0091F-15P Weight: Brand: Price: $ 0.00 |
990C0-0091F-15P | 1 | $ 0.00 | ||
| 52-3 | 990C0-0091F-165 990C0-0091F-165
SKU: 990C0-0091F-165 Weight: Brand: Price: $ 0.00 |
990C0-0091F-165 | 1 | $ 0.00 | ||
| 52-4 | 990C0-0091F-18P 990C0-0091F-18P
SKU: 990C0-0091F-18P Weight: Brand: Price: $ 0.00 |
990C0-0091F-18P | 1 | $ 0.00 | ||
| 52-5 | 990C0-0091F-195 990C0-0091F-195
SKU: 990C0-0091F-195 Weight: Brand: Price: $ 0.00 |
990C0-0091F-195 | 1 | $ 0.00 | ||
| 52-6 | 990C0-0091F-21P 990C0-0091F-21P
SKU: 990C0-0091F-21P Weight: Brand: Price: $ 0.00 |
990C0-0091F-21P | 1 | $ 0.00 | ||
| 52-7 | 990C0-0091F-225 990C0-0091F-225
SKU: 990C0-0091F-225 Weight: Brand: Price: $ 0.00 |
990C0-0091F-225 | 1 | $ 0.00 | ||
| 52-8 | 990C0-0091F-24P 990C0-0091F-24P
SKU: 990C0-0091F-24P Weight: Brand: Price: $ 0.00 |
990C0-0091F-24P | 1 | $ 0.00 | ||
| 52-9 | 990C0-0091F-255 990C0-0091F-255
SKU: 990C0-0091F-255 Weight: Brand: Price: $ 0.00 |
990C0-0091F-255 | 1 | $ 0.00 | ||
| 52-10 | 990C0-0091F-27P 990C0-0091F-27P
SKU: 990C0-0091F-27P Weight: Brand: Price: $ 0.00 |
990C0-0091F-27P | 1 | $ 0.00 | ||
| 52-11 | 990C0-0091F-285 990C0-0091F-285
SKU: 990C0-0091F-285 Weight: Brand: Price: $ 0.00 |
990C0-0091F-285 | 1 | $ 0.00 | ||
| 52-12 | 990C0-0091F-30P 990C0-0091F-30P
SKU: 990C0-0091F-30P Weight: Brand: Price: $ 0.00 |
990C0-0091F-30P | 1 | $ 0.00 | ||
| 52-13 | 990C0-0091F-315 990C0-0091F-315
SKU: 990C0-0091F-315 Weight: Brand: Price: $ 0.00 |
990C0-0091F-315 | 1 | $ 0.00 | ||
| 53 | 58520-98L00 Front Propeller Bushing
SKU: 58520-98L00 Weight: 1.000000 Brand: Price: $ 217.03 |
Front Propeller Bushing | 1 | $ 217.03 | ||
| 54-1 | 990C0-0091R-12P PROP RR 3X15.5X
SKU: 990C0-0091R-12P Weight: 0.000000 Brand: Price: $ 892.71 |
PROP RR 3X15.5X | 1 | $ 892.71 | ||
| 54-2 | 990C0-0091R-15P PROP RR 3X15.5X
SKU: 990C0-0091R-15P Weight: 0.000000 Brand: Price: $ 892.71 |
PROP RR 3X15.5X | 1 | $ 892.71 | ||
| 54-3 | 990C0-0091R-165 PROP RR 3X15.5X
SKU: 990C0-0091R-165 Weight: 0.000000 Brand: Price: $ 892.71 |
PROP RR 3X15.5X | 1 | $ 892.71 | ||
| 54-4 | 990C0-0091R-18P S/S Propeller 3x15.5x18 Rear
SKU: 990C0-0091R-18P Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x18 Rear | 1 | $ 892.71 | ||
| 54-5 | 990C0-0091R-195 S/S Propeller 3x15.5x19.5 Rear
SKU: 990C0-0091R-195 Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x19.5 Rear | 1 | $ 892.71 | ||
| 54-6 | 990C0-0091R-21P S/S Propeller 3x15.5x21 Rear
SKU: 990C0-0091R-21P Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x21 Rear | 1 | $ 892.71 | ||
| 54-7 | 990C0-0091R-225 S/S Propeller 3x15.5x22.5 Rear
SKU: 990C0-0091R-225 Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x22.5 Rear | 1 | $ 892.71 | ||
| 54-8 | 990C0-0091R-24P S/S Propeller 3x15.5x24 Rear
SKU: 990C0-0091R-24P Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x24 Rear | 1 | $ 892.71 | ||
| 54-9 | 990C0-0091R-255 S/S Propeller 3x15.5x25.5 Rear
SKU: 990C0-0091R-255 Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x25.5 Rear | 1 | $ 892.71 | ||
| 54-10 | 990C0-0091R-27P PROP RR 3X15.5X
SKU: 990C0-0091R-27P Weight: 0.000000 Brand: Price: $ 892.71 |
PROP RR 3X15.5X | 1 | $ 892.71 | ||
| 54-11 | 990C0-0091R-285 PROP RR 3X15.5X
SKU: 990C0-0091R-285 Weight: 0.000000 Brand: Price: $ 892.71 |
PROP RR 3X15.5X | 1 | $ 892.71 | ||
| 54-12 | 990C0-0091R-30P PROP RR 3X15.5X
SKU: 990C0-0091R-30P Weight: 0.000000 Brand: Price: $ 892.71 |
PROP RR 3X15.5X | 1 | $ 892.71 | ||
| 54-13 | 990C0-0091R-315 PROP RR 3X15.5X
SKU: 990C0-0091R-315 Weight: 0.000000 Brand: Price: $ 892.71 |
PROP RR 3X15.5X | 1 | $ 892.71 | ||
| 55 | 58620-98L00 Rear Propeller Bushing
SKU: 58620-98L00 Weight: 1.000000 Brand: Price: $ 195.33 |
Rear Propeller Bushing | 1 | $ 195.33 | ||
| 57 | 58640-98L00 Rear Propeller Nut Kit
SKU: 58640-98L00 Weight: 1.000000 Brand: Price: $ 37.82 |
Rear Propeller Nut Kit | 1 | $ 37.82 | ||
| 58 | 25700-87M00 25700-87M10
SKU: 25700-87M00 Weight: 0.000000 Brand: Price: $ 124.85 |
25700-87M10 | 1 | $ 124.85 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
- Prices and Part Numbers subject to change without notice.
- All contents of this website apply to the continental U.S. market only.
- All trademarks or product names mentioned herein are the property of their respective owners.
