Suzuki DF 225 Parts Listings 2004 to S/N 22503Z-11XXXX

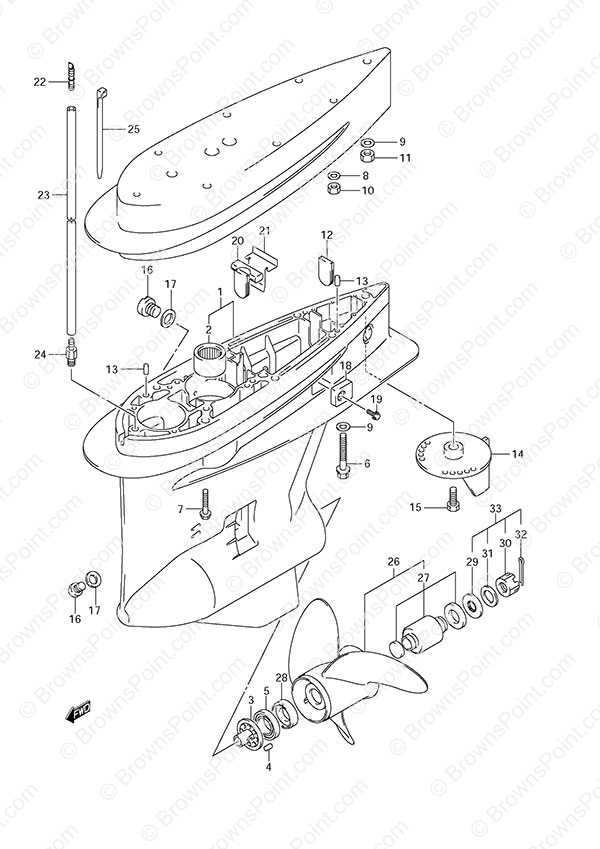

Fig. 48 - Gear Case Counter Rotation
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55110-93J30-0EP Gear Case Housing (C/R)
SKU: 55110-93J30-0EP Weight: 29.660000 Brand: Price: $ 2,261.77 |
Gear Case Housing (C/R) | 1 | $ 2,261.77 | ||
| 2-1 | 09263-32016 Pinion Bearing
SKU: 09263-32016 Weight: 0.500000 Brand: Price: $ 140.36 |
Pinion Bearing | 1 | $ 140.36 | ||
| 2-2 | 09263-32017 Pinion Bearing
SKU: 09263-32017 Weight: 0.460000 Brand: Price: $ 171.49 |
Pinion Bearing | 1 | $ 171.49 | S/N 510008 Newer | |
| 3 | 56145-93J00 Shift Cam Housing
SKU: 56145-93J00 Weight: 0.300000 Brand: Price: $ 59.78 |
Shift Cam Housing | 1 | $ 59.78 | ||
| 4 | 04221-08129 PIN 8X12
SKU: 04221-08129 Weight: 0.100000 Brand: Price: $ 1.99 |
PIN 8X12 | 1 | $ 1.99 | ||
| 5 | 09265-50002 Bearing (50x90x21.75)
SKU: 09265-50002 Weight: 1.500000 Brand: Price: $ 95.03 |
Bearing (50x90x21.75) | 1 | $ 95.03 | ||
| 6 | 09100-12052 Bolt (12x70)
SKU: 09100-12052 Weight: 0.160000 Brand: Price: $ 11.80 |
Bolt (12x70) | 1 | $ 11.80 | Type: X | |
| 7 | 09116-10150 Bolt (10x55)
SKU: 09116-10150 Weight: 0.200000 Brand: Price: $ 15.95 |
Bolt (10x55) | 6 | $ 15.95 | Type: X | |
| 8 | 09160-10141 Washer (10.5x19x2)
SKU: 09160-10141 Weight: 0.060000 Brand: Price: $ 3.41 |
Washer (10.5x19x2) | 6 | $ 3.41 | Type: XX | |
| 9 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 1 | $ 1.80 | ||
| 10 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 6 | $ 2.04 | Type: XX | |
| 11 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 1 | $ 5.04 | Type: XX | |
| 12 | 17566-87D12 GROMMET
SKU: 17566-87D12 Weight: 0.000000 Brand: Price: $ 6.66 |
GROMMET | 1 | $ 6.66 | ||
| 13 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 14 | 55125-98J00-0EP Trim Tab
SKU: 55125-98J00-0EP Weight: 0.280000 Brand: Price: $ 104.41 |
Trim Tab | 1 | $ 104.41 | ||
| 15 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 1 | $ 7.44 | ||
| 16-1 | 55128-93J10 Drain Plug
SKU: 55128-93J10 Weight: 0.060000 Brand: Price: $ 5.92 |
Drain Plug | 2 | $ 5.92 | ||
| 16-2 | 55128-93J10 Drain Plug
SKU: 55128-93J10 Weight: 0.060000 Brand: Price: $ 5.92 |
Drain Plug | 3 | $ 5.92 | S/N 510008 Newer | |
| 17-1 | 09168-10038 GASKET,DRAIN PL
SKU: 09168-10038 Weight: 0.000000 Brand: Price: $ 2.23 |
GASKET,DRAIN PL | 2 | $ 2.23 | ||
| 17-2 | 09168-10038 GASKET,DRAIN PL
SKU: 09168-10038 Weight: 0.000000 Brand: Price: $ 2.23 |
GASKET,DRAIN PL | 3 | $ 2.23 | S/N 510008 Newer | |
| 18 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 2 | $ 8.74 | ||
| 19 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 2 | $ 2.28 | ||
| 20 | 55332-87D12 Exhaust Seal Rubber
SKU: 55332-87D12 Weight: 0.060000 Brand: Price: $ 6.66 |
Exhaust Seal Rubber | 1 | $ 6.66 | ||
| 21 | 55333-87D10 Exhaust Seal Plate
SKU: 55333-87D10 Weight: 0.080000 Brand: Price: $ 10.93 |
Exhaust Seal Plate | 1 | $ 10.93 | ||
| 22 | 55127-87D00 Hose Union
SKU: 55127-87D00 Weight: 0.060000 Brand: Price: $ 3.83 |
Hose Union | 1 | $ 3.83 | ||
| 23-1 | 09355-40805-00B Hose (4x8x2000)
SKU: 09355-40805-00B Weight: 0.260000 Brand: Price: $ 29.37 |
Hose (4x8x2000) | 1 | $ 29.37 | Type: X L:2000->1600 L:2000->1700 2005 Newer | |
| 23-2 | 09355-40805-00B Hose (4x8x2000)
SKU: 09355-40805-00B Weight: 0.260000 Brand: Price: $ 29.37 |
Hose (4x8x2000) | 1 | $ 29.37 | Type: XX L:2000->1700 | |
| 24 | 09362-09008 Nipple
SKU: 09362-09008 Weight: 0.060000 Brand: Price: $ 2.92 |
Nipple | 1 | $ 2.92 | ||
| 25 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 26-1 | 990C0-0080L-17P Replaced by 990C0-0081L-17P
SKU: 990C0-0080L-17P Weight: 25.000000 Brand: Price: $ 696.48 |
Replaced by 990C0-0081L-17P | 1 | $ 696.48 | ||
| 26-2 | 990C0-0081L-185 S/S Watergrip Propeller 3x16x18-1/2 CC/R
SKU: 990C0-0081L-185 Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x18-1/2 CC/R | 1 | $ 696.48 | ||
| 26-3 | 990C0-0081L-20P S/S Watergrip Propeller 3x16x20 CC/R
SKU: 990C0-0081L-20P Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x20 CC/R | 1 | $ 696.48 | ||
| 26-4 | 990C0-0081L-215 S/S Watergrip Propeller 3x16x21-1/2 CC/R
SKU: 990C0-0081L-215 Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x21-1/2 CC/R | 1 | $ 696.48 | ||
| 26-5 | 990C0-0081L-23P S/S Watergrip Propeller 3x16x23 CC/R
SKU: 990C0-0081L-23P Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x23 CC/R | 1 | $ 696.48 | ||
| 26-6 | 990C0-0081L-245 S/S Watergrip Propeller 3x16x24-1/2 CC/R
SKU: 990C0-0081L-245 Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x24-1/2 CC/R | 1 | $ 696.48 | ||
| 26-7 | 990C0-0081L-26P S/S Watergrip Propeller 3x16x26 CC/R
SKU: 990C0-0081L-26P Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x26 CC/R | 1 | $ 696.48 | ||
| 26-8 | 990C0-0084L-20P S/S Watergrip Propeller 4x15x20 C/R (NLA)
SKU: 990C0-0084L-20P Weight: 25.000000 Brand: Price: $ 632.54 |
S/S Watergrip Propeller 4x15x20 C/R (NLA) | 1 | $ 632.54 | ||
| 26-9 | 990C0-0084L-22P S/S Watergrip Propeller 4x15x22 C/R (NLA)
SKU: 990C0-0084L-22P Weight: 25.000000 Brand: Price: $ 632.54 |
S/S Watergrip Propeller 4x15x22 C/R (NLA) | 1 | $ 632.54 | ||
| 26-10 | 990C0-0084L-24P S/S Watergrip Propeller 4x15x24 C/R (NLA)
SKU: 990C0-0084L-24P Weight: 25.000000 Brand: Price: $ 632.54 |
S/S Watergrip Propeller 4x15x24 C/R (NLA) | 1 | $ 632.54 | ||
| 26-11 | 990C0-0084L-26P S/S Watergrip Propeller 4x15x26 C/R (NLA)
SKU: 990C0-0084L-26P Weight: 25.000000 Brand: Price: $ 632.54 |
S/S Watergrip Propeller 4x15x26 C/R (NLA) | 1 | $ 632.54 | ||
| 27 | 58105-93J00 Propeller Bushing
SKU: 58105-93J00 Weight: 2.000000 Brand: Price: $ 142.52 |
Propeller Bushing | 1 | $ 142.52 | ||
| 28 | 57632-93J11 Propeller Stopper
SKU: 57632-93J11 Weight: 0.700000 Brand: Price: $ 114.96 |
Propeller Stopper | 1 | $ 114.96 | ||
| 29 | 57633-87D30 Propeller Nut Spacer
SKU: 57633-87D30 Weight: 0.500000 Brand: Price: $ 20.99 |
Propeller Nut Spacer | 1 | $ 20.99 | ||
| 30 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | ||
| 31 | 09160-18028 Washer (18.5x31x1.0)
SKU: 09160-18028 Weight: 0.060000 Brand: Price: $ 3.69 |
Washer (18.5x31x1.0) | 1 | $ 3.69 | ||
| 32 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 33 | 57630-92E00 Propeller Hardware Kit DF150/175 DFV6 DTV6
SKU: 57630-92E00 Weight: 0.440000 Brand: Price: $ 34.42 |
Propeller Hardware Kit DF150/175 DFV6 DTV6 | 1 | $ 34.42 | Optional | |
| 34 | 25700-93J00 Gear Case Seal Kit DF150 / DF175 / DF200 / DF225 / DF250
SKU: 25700-93J00 Weight: 0.200000 Brand: Price: $ 32.39 |
Gear Case Seal Kit DF150 / DF175 / DF200 / DF225 / DF250 | 1 | $ 32.39 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
