Suzuki DF 300B Parts Listings - 2023
S/N 30003F-340001 to 30003F-34XXXX

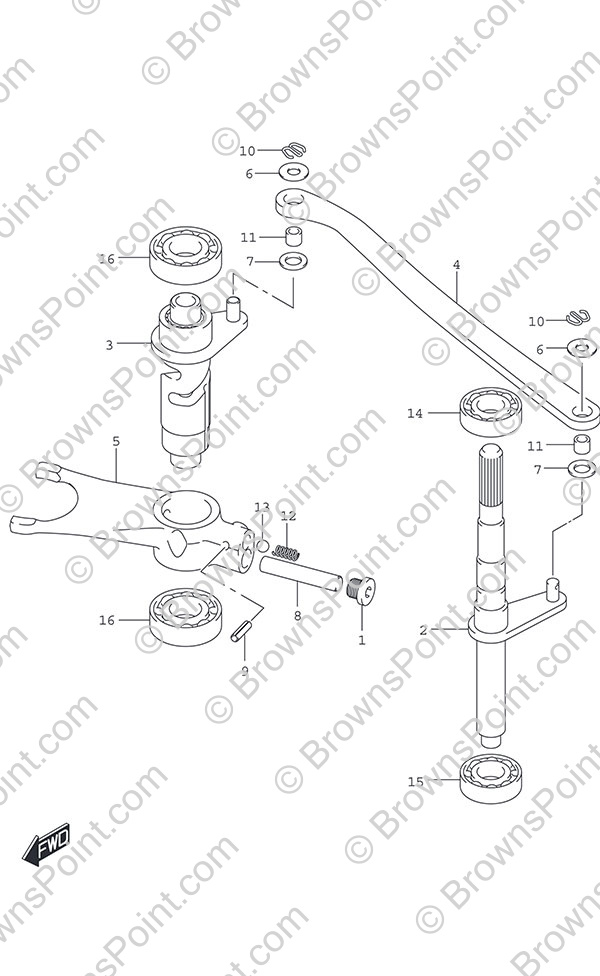

Fig. 206 - Clutch Rod
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 09248-10007 PLUG,ROUND-HEAD
SKU: 09248-10007 Weight: 0.100000 Brand: Price: $ 5.63 |
PLUG,ROUND-HEAD | 1 | $ 5.63 | ||
| 2-1 | 25110-98L00 Shift Rod (X)
SKU: 25110-98L00 Weight: 0.500000 Brand: Price: $ 184.06 |
Shift Rod (X) | 1 | $ 184.06 | w/Transom (X) | |
| 2-2 | 25110-98L10 Shift Rod (XX)
SKU: 25110-98L10 Weight: 0.750000 Brand: Price: $ 241.71 |
Shift Rod (XX) | 1 | $ 241.71 | w/Transom (XX) | |
| 3 | 25300-87M00 CAM COMP,SHIFT
SKU: 25300-87M00 Weight: 0.000000 Brand: Price: $ 259.02 |
CAM COMP,SHIFT | 1 | $ 259.02 | ||
| 4 | 25315-87M00 LINK,SHIFT CAM
SKU: 25315-87M00 Weight: 0.000000 Brand: Price: $ 13.75 |
LINK,SHIFT CAM | 1 | $ 13.75 | ||
| 5 | 25411-87M00 FORK,SHIFT
SKU: 25411-87M00 Weight: 0.000000 Brand: Price: $ 155.50 |
FORK,SHIFT | 1 | $ 155.50 | ||
| 6 | 09160-06094 Washer (6.5x15x1.0)
SKU: 09160-06094 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x15x1.0) | 2 | $ 1.44 | ||
| 7 | 09160-08091 Replaced by 09160-08082
SKU: 09160-08091 Weight: 0.100000 Brand: Price: $ 1.01 |
Replaced by 09160-08082 | 2 | $ 1.01 | ||
| 8 | 09202-07003 Pin (7x44)
SKU: 09202-07003 Weight: 0.060000 Brand: Price: $ 6.08 |
Pin (7x44) | 1 | $ 6.08 | ||
| 9 | 09205-04014 Pin
SKU: 09205-04014 Weight: 0.060000 Brand: Price: $ 1.65 |
Pin | 1 | $ 1.65 | ||
| 10 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 2 | $ 1.40 | ||
| 11 | 25214-98L00 Shift Link Bushing
SKU: 25214-98L00 Weight: 0.060000 Brand: Price: $ 6.08 |
Shift Link Bushing | 2 | $ 6.08 | ||
| 12 | 09440-05031 Spring
SKU: 09440-05031 Weight: 0.060000 Brand: Price: $ 1.44 |
Spring | 1 | $ 1.44 | ||
| 13 | 06111-07004 STEEL BALL 7/32
SKU: 06111-07004 Weight: 0.060000 Brand: Price: $ 1.24 |
STEEL BALL 7/32 | 1 | $ 1.24 | ||
| 14 | 08113-60020 B1 15X32X09 BEA
SKU: 08113-60020 Weight: 0.200000 Brand: Price: $ 16.29 |
B1 15X32X09 BEA | 1 | $ 16.29 | ||
| 15 | 08113-62000 B1 10X30X09 BEA
SKU: 08113-62000 Weight: 0.200000 Brand: Price: $ 11.80 |
B1 10X30X09 BEA | 1 | $ 11.80 | ||
| 16 | 08113-60020 B1 15X32X09 BEA
SKU: 08113-60020 Weight: 0.200000 Brand: Price: $ 16.29 |
B1 15X32X09 BEA | 2 | $ 16.29 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
