Suzuki DF 225 Parts Listings 2004 to S/N 22503F-11XXXX 2004 to S/N 22503Z-11XXXX

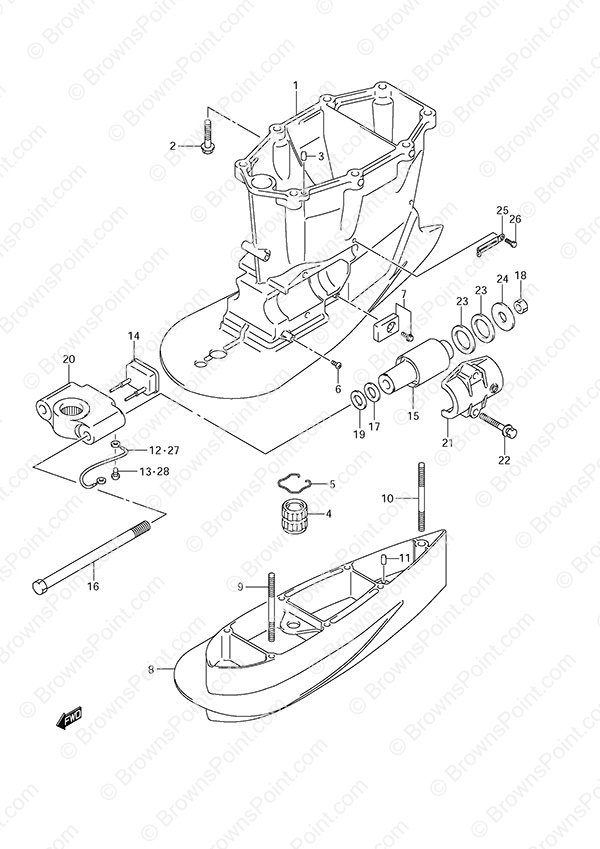

Fig. 45 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 52111-93J03-0EP Drive Shaft Housing
SKU: 52111-93J03-0EP Weight: 20.000000 Brand: Price: $ 966.50 |
Drive Shaft Housing | 1 | $ 966.50 | ||
| 1-2 | 52111-93J11-0EP Drive Shaft Housing
SKU: 52111-93J11-0EP Weight: 20.000000 Brand: Price: $ 1,148.30 |
Drive Shaft Housing | 1 | $ 1,148.30 | DF225T: S/N 680175 Newer DF225Z: S/N 680048 Newer | |
| 2 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 8 | $ 6.81 | ||
| 3 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 4 | 57130-87D10 Drive Shaft Bushing
SKU: 57130-87D10 Weight: 0.150000 Brand: Price: $ 38.20 |
Drive Shaft Bushing | 1 | $ 38.20 | ||
| 5 | 09387-39002 RING,DRIVE SHAF
SKU: 09387-39002 Weight: 0.000000 Brand: Price: $ 6.45 |
RING,DRIVE SHAF | 1 | $ 6.45 | ||
| 6 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 7 | 55320-95311 Zinc Anode
SKU: 55320-95311 Weight: 0.200000 Brand: Price: $ 8.74 |
Zinc Anode | 1 | $ 8.74 | ||
| 8 | 52131-93J00-0EP Extension Case (XX)
SKU: 52131-93J00-0EP Weight: 11.500000 Brand: Price: $ 979.03 |
Extension Case (XX) | 1 | $ 979.03 | Type: XX | |
| 9 | 09108-10115 Stud Bolt
SKU: 09108-10115 Weight: 0.100000 Brand: Price: $ 24.92 |
Stud Bolt | 6 | $ 24.92 | Type: XX | |
| 10 | 09108-12013 Extension Bolt
SKU: 09108-12013 Weight: 0.100000 Brand: Price: $ 31.89 |
Extension Bolt | 1 | $ 31.89 | Type: XX | |
| 11 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | Type: XX | |
| 12 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Mount Bracket to Housing DF225T: S/N 421922 Older DF225Z: S/N 421223 Older | |
| 13 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | DF225T: S/N 421922 Older DF225Z: S/N 421223 Older | |
| 14 | 54151-93J00 Lower Thrust Mount (NLA)
SKU: 54151-93J00 Weight: 0.100000 Brand: Price: $ 7.09 |
Lower Thrust Mount (NLA) | 1 | $ 7.09 | ||
| 15 | 54160-93J01 Lower Mount
SKU: 54160-93J01 Weight: 0.500000 Brand: Price: $ 118.86 |
Lower Mount | 2 | $ 118.86 | ||
| 16 | 54112-93J00 Upper Mount Bolt
SKU: 54112-93J00 Weight: 0.250000 Brand: Price: $ 73.85 |
Upper Mount Bolt | 2 | $ 73.85 | ||
| 17 | 09160-16050 Lower Mount Washer
SKU: 09160-16050 Weight: 0.125000 Brand: Price: $ 2.65 |
Lower Mount Washer | 2 | $ 2.65 | ||
| 18 | 29159-93J00 Upper Mount Bolt Nut
SKU: 29159-93J00 Weight: 0.060000 Brand: Price: $ 13.25 |
Upper Mount Bolt Nut | 2 | $ 13.25 | ||
| 19 | 09160-16050 Lower Mount Washer
SKU: 09160-16050 Weight: 0.125000 Brand: Price: $ 2.65 |
Lower Mount Washer | 2 | $ 2.65 | ||
| 20 | 54211-93J00-0EP Lower Mount Bracket
SKU: 54211-93J00-0EP Weight: 1.000000 Brand: Price: $ 181.09 |
Lower Mount Bracket | 1 | $ 181.09 | ||
| 21 | 54221-93J00 Lower Mount Cover (NLA)
SKU: 54221-93J00 Weight: 0.500000 Brand: Price: $ 44.09 |
Lower Mount Cover (NLA) | 2 | $ 44.09 | ||
| 22 | 09116-10175 Bolt (10x50)
SKU: 09116-10175 Weight: 0.125000 Brand: Price: $ 6.90 |
Bolt (10x50) | 4 | $ 6.90 | ||
| 23 | 54165-98J01 Lower Thrust Reverse Stopper
SKU: 54165-98J01 Weight: 0.125000 Brand: Price: $ 7.77 |
Lower Thrust Reverse Stopper | 4 | $ 7.77 | ||
| 24 | 09160-14066 Reverse Stopper Lower Washer
SKU: 09160-14066 Weight: 0.125000 Brand: Price: $ 9.08 |
Reverse Stopper Lower Washer | 2 | $ 9.08 | ||
| 25 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | DF225T: S/N 510027 Newer DF225Z: S/N 510003 Newer | |
| 26-1 | 09100-06131 Bolt (6x12)
SKU: 09100-06131 Weight: 0.060000 Brand: Price: $ 2.10 |
Bolt (6x12) | 1 | $ 2.10 | DF225T: S/N 510027 Newer DF225Z: S/N 510003 Newer | |
| 26-2 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 1 | $ 2.05 | 2006 Newer | |
| 27 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Bracket to Housing DF225T: S/N 680175 Newer DF225Z: S/N 680048 Newer | |
| 28 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | DF225T: S/N 680175 Newer DF225Z: S/N 680048 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
