Suzuki DF 300B Parts Listings - 2023
S/N 30003F-340001 to 30003F-34XXXX

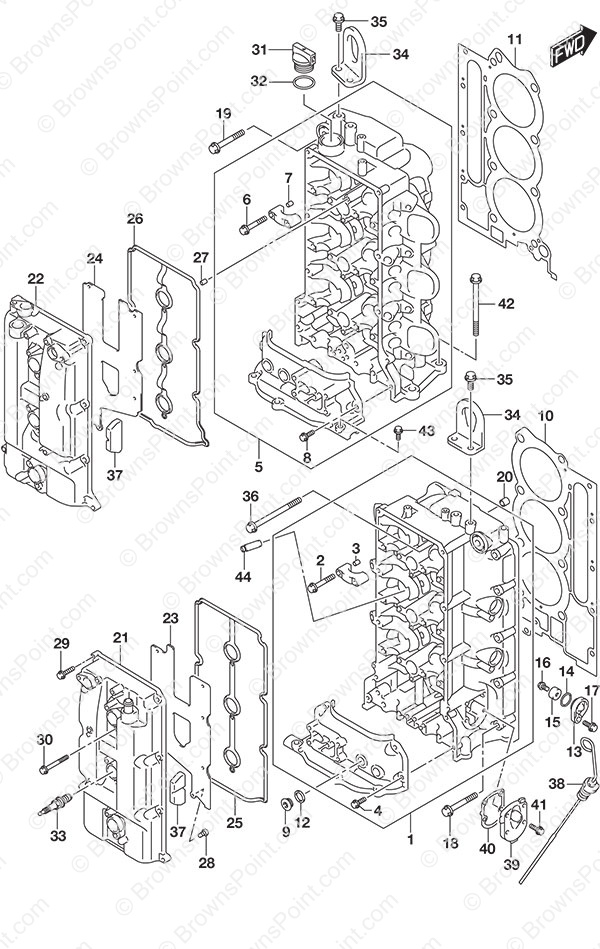

Fig. 111 - Cylinder Head
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11101-98L20 HEAD ASSY,CYLIN
SKU: 11101-98L20 Weight: 0.000000 Brand: Price: $ 1,438.34 |
HEAD ASSY,CYLIN | 1 | $ 1,438.34 | ||
| 2 | 09103-06266 Bolt (6x40)
SKU: 09103-06266 Weight: 0.250000 Brand: Price: $ 2.21 |
Bolt (6x40) | 16 | $ 2.21 | ||
| 3 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 14 | $ 1.78 | ||
| 4 | 01547-06207 BOLT 6 X 20
SKU: 01547-06207 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6 X 20 | 4 | $ 2.04 | ||
| 5 | 11103-98L20 HEAD ASSY,CYLIN
SKU: 11103-98L20 Weight: 0.000000 Brand: Price: $ 1,438.34 |
HEAD ASSY,CYLIN | 1 | $ 1,438.34 | ||
| 6 | 09103-06266 Bolt (6x40)
SKU: 09103-06266 Weight: 0.250000 Brand: Price: $ 2.21 |
Bolt (6x40) | 16 | $ 2.21 | ||
| 7 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 14 | $ 1.78 | ||
| 8 | 01547-06207 BOLT 6 X 20
SKU: 01547-06207 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6 X 20 | 2 | $ 2.04 | ||
| 9 | 11116-93J01 Plug
SKU: 11116-93J01 Weight: 0.100000 Brand: Price: $ 3.65 |
Plug | 4 | $ 3.65 | ||
| 10 | 11141-98L00 Cylinder Head Gasket - Starboard
SKU: 11141-98L00 Weight: 1.000000 Brand: Price: $ 85.09 |
Cylinder Head Gasket - Starboard | 1 | $ 85.09 | ||
| 11 | 11142-98L00 Cylinder Head Gasket - Port
SKU: 11142-98L00 Weight: 1.000000 Brand: Price: $ 88.32 |
Cylinder Head Gasket - Port | 1 | $ 88.32 | ||
| 12 | 11216-98L10 Gasket
SKU: 11216-98L10 Weight: 0.060000 Brand: Price: $ 3.05 |
Gasket | 4 | $ 3.05 | ||
| 13 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 16.29 |
Protection Anode Cover | 4 | $ 16.29 | ||
| 14 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 4 | $ 2.38 | ||
| 15 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 4 | $ 7.36 | ||
| 16 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 4 | $ 2.99 | ||
| 17 | 01550-0820C BOLT
SKU: 01550-0820C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 4 | $ 1.68 | ||
| 18 | 01550-08607 BOLT
SKU: 01550-08607 Weight: 0.060000 Brand: Price: $ 3.82 |
BOLT | 6 | $ 3.82 | ||
| 19 | 01550-08607 BOLT
SKU: 01550-08607 Weight: 0.060000 Brand: Price: $ 3.82 |
BOLT | 5 | $ 3.82 | ||
| 20 | 09206-15001 Pin
SKU: 09206-15001 Weight: 0.100000 Brand: Price: $ 4.11 |
Pin | 4 | $ 4.11 | ||
| 21 | 11170-93J01 Cylinder Head Cover - Starboard (NLA)
SKU: 11170-93J01 Weight: 2.000000 Brand: Price: $ 299.76 |
Cylinder Head Cover - Starboard (NLA) | 1 | $ 299.76 | ||
| 22 | 11180-98L00 Cylinder Head Cover - Port
SKU: 11180-98L00 Weight: 2.000000 Brand: Price: $ 272.43 |
Cylinder Head Cover - Port | 1 | $ 272.43 | ||
| 23 | 11173-93J00 Breather Plate - Starboard (NLA)
SKU: 11173-93J00 Weight: 1.000000 Brand: Price: $ 5.17 |
Breather Plate - Starboard (NLA) | 1 | $ 5.17 | ||
| 24 | 11183-93J00 Breather Plate - Port (NLA)
SKU: 11183-93J00 Weight: 1.000000 Brand: Price: $ 6.27 |
Breather Plate - Port (NLA) | 1 | $ 6.27 | ||
| 25 | 11179-93J00 Cylinder Head Cover Gasket - Starboard
SKU: 11179-93J00 Weight: 0.125000 Brand: Price: $ 22.76 |
Cylinder Head Cover Gasket - Starboard | 1 | $ 22.76 | ||
| 26 | 11189-93J00 Cylinder Head Cover Gasket - Port
SKU: 11189-93J00 Weight: 0.125000 Brand: Price: $ 22.00 |
Cylinder Head Cover Gasket - Port | 1 | $ 22.00 | ||
| 27 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 1 | $ 1.78 | ||
| 28 | 02142-0612A SCREW
SKU: 02142-0612A Weight: 0.100000 Brand: Price: $ 1.38 |
SCREW | 14 | $ 1.38 | ||
| 29 | 01547-0625C Bolt
SKU: 01547-0625C Weight: 0.060000 Brand: Price: $ 0.00 |
Bolt | 16 | $ 0.00 | ||
| 30 | 01547-0650C 01547-0650C
SKU: 01547-0650C Weight: Brand: Price: $ 0.00 |
01547-0650C | 6 | $ 0.00 | ||
| 31 | 11382-93J00 Oil Filler Cap
SKU: 11382-93J00 Weight: 0.060000 Brand: Price: $ 5.26 |
Oil Filler Cap | 1 | $ 5.26 | ||
| 32 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 33 | 09482-00642 NGK ILZKR7D8 (Iridium) Spark Plug
SKU: 09482-00642 Weight: 0.187500 Brand: Price: $ 24.42 |
NGK ILZKR7D8 (Iridium) Spark Plug | 6 | $ 24.42 | ||
| 34 | 11291-98L00 Engine Hook
SKU: 11291-98L00 Weight: 0.250000 Brand: Price: $ 12.86 |
Engine Hook | 2 | $ 12.86 | ||
| 35 | 01550-0820C BOLT
SKU: 01550-0820C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 4 | $ 1.68 | ||
| 36 | 11119-98L00 Cylinder Head Bolt
SKU: 11119-98L00 Weight: 0.060000 Brand: Price: $ 7.68 |
Cylinder Head Bolt | 16 | $ 7.68 | ||
| 37 | 11186-15501 Oil Breather Separator
SKU: 11186-15501 Weight: 0.250000 Brand: Price: $ 0.00 |
Oil Breather Separator | 2 | $ 0.00 | ||
| 38 | 16910-98L00 Oil Level Gauge
SKU: 16910-98L00 Weight: 0.500000 Brand: Price: $ 29.09 |
Oil Level Gauge | 1 | $ 29.09 | ||
| 39 | 16931-98L00 Oil Level Gauge Guide
SKU: 16931-98L00 Weight: 0.500000 Brand: Price: $ 37.45 |
Oil Level Gauge Guide | 1 | $ 37.45 | ||
| 40 | 16941-98L00 Oil Level Gauge Guide Gasket
SKU: 16941-98L00 Weight: 0.060000 Brand: Price: $ 3.95 |
Oil Level Gauge Guide Gasket | 1 | $ 3.95 | ||
| 41 | 01550-0625C BOLT
SKU: 01550-0625C Weight: 0.060000 Brand: Price: $ 1.46 |
BOLT | 4 | $ 1.46 | ||
| 42 | 09116-10146 Bolt (10x195)
SKU: 09116-10146 Weight: 0.200000 Brand: Price: $ 29.18 |
Bolt (10x195) | 2 | $ 29.18 | ||
| 43 | 01550-0830C Bolt
SKU: 01550-0830C Weight: 0.060000 Brand: Price: $ 1.80 |
Bolt | 6 | $ 1.80 | ||
| 44 | 11115-98L00-001 Valve Guide (OS:0.5)
SKU: 11115-98L00-001 Weight: 0.060000 Brand: Price: $ 35.23 |
Valve Guide (OS:0.5) | 24 | $ 35.23 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
