Suzuki DF 225 Parts Listings 2004 to S/N 22503F-11XXXX 2004 to S/N 22503Z-11XXXX

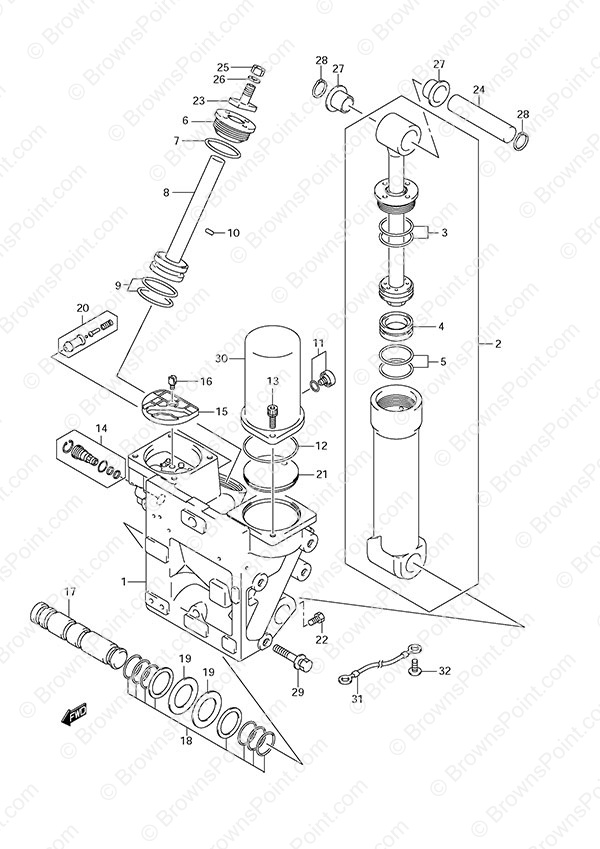

Fig. 40 - Trim Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48500-93J05 Manifold Assembly
SKU: 48500-93J05 Weight: 14.000000 Brand: Price: $ 926.37 |
Manifold Assembly | 1 | $ 926.37 | Includes Ref# 6 to 10 and Ref# 15 | |
| 2 | 48400-93J07 Tilt Cylinder Assembly
SKU: 48400-93J07 Weight: 6.000000 Brand: Price: $ 581.05 |
Tilt Cylinder Assembly | 1 | $ 581.05 | ||
| 3 | 48405-93J00 Tilt O-Ring Set
SKU: 48405-93J00 Weight: 0.060000 Brand: Price: $ 9.24 |
Tilt O-Ring Set | 1 | $ 9.24 | ||
| 4 | 48650-93J00 Free Piston
SKU: 48650-93J00 Weight: 0.500000 Brand: Price: $ 69.14 |
Free Piston | 1 | $ 69.14 | ||
| 5 | 48627-93J00 O-Ring Set
SKU: 48627-93J00 Weight: 0.125000 Brand: Price: $ 8.70 |
O-Ring Set | 1 | $ 8.70 | ||
| 6-1 | 48630-93J00 Rod Guide
SKU: 48630-93J00 Weight: 0.200000 Brand: Price: $ 66.88 |
Rod Guide | 2 | $ 66.88 | ||
| 6-2 | 48630-98L02 ROD GUIDE
SKU: 48630-98L02 Weight: 0.000000 Brand: Price: $ 58.35 |
ROD GUIDE | 2 | $ 58.35 | DF225T: S/N 781158 Newer DF225Z: S/N 780228 Newer | |
| 7 | 48633-93J00 O-Ring
SKU: 48633-93J00 Weight: 0.060000 Brand: Price: $ 7.36 |
O-Ring | 2 | $ 7.36 | ||
| 8 | 48610-93J01 Trim Piston & Ram
SKU: 48610-93J01 Weight: 1.000000 Brand: Price: $ 201.03 |
Trim Piston & Ram | 2 | $ 201.03 | ||
| 9 | 48605-93J00 O-Ring Set
SKU: 48605-93J00 Weight: 0.060000 Brand: Price: $ 11.63 |
O-Ring Set | 2 | $ 11.63 | ||
| 10 | 48691-93J00 Check Valve
SKU: 48691-93J00 Weight: 0.060000 Brand: Price: $ 6.41 |
Check Valve | 1 | $ 6.41 | ||
| 11 | 48572-87J10 Plug
SKU: 48572-87J10 Weight: 0.060000 Brand: Price: $ 20.90 |
Plug | 1 | $ 20.90 | ||
| 12 | 48585-95E00 O-Ring
SKU: 48585-95E00 Weight: 0.060000 Brand: Price: $ 3.96 |
O-Ring | 1 | $ 3.96 | ||
| 13 | 48862-87J20 Reservoir Tank Bolt
SKU: 48862-87J20 Weight: 0.060000 Brand: Price: $ 15.52 |
Reservoir Tank Bolt | 2 | $ 15.52 | ||
| 14 | 48864-93J01 Manual Valve Set
SKU: 48864-93J01 Weight: 0.100000 Brand: Price: $ 128.52 |
Manual Valve Set | 1 | $ 128.52 | ||
| 15 | 48582-95E01 Filter
SKU: 48582-95E01 Weight: 0.060000 Brand: Price: $ 38.93 |
Filter | 1 | $ 38.93 | ||
| 16 | 48583-95E00 Drive Joint
SKU: 48583-95E00 Weight: 0.060000 Brand: Price: $ 11.21 |
Drive Joint | 1 | $ 11.21 | ||
| 17-1 | 48121-93J01 Tilt Cylinder Shaft
SKU: 48121-93J01 Weight: 0.500000 Brand: Price: $ 80.41 |
Tilt Cylinder Shaft | 1 | $ 80.41 | ||
| 17-2 | 48121-93J20 Tilt Cylinder Shaft
SKU: 48121-93J20 Weight: 0.540000 Brand: Price: $ 63.44 |
Tilt Cylinder Shaft | 1 | $ 63.44 | DF225T: S/N 980463 Newer DF225Z: S/N 980116 Newer | |
| 18 | 48125-93J00 O-Ring Set
SKU: 48125-93J00 Weight: 0.060000 Brand: Price: $ 20.14 |
O-Ring Set | 1 | $ 20.14 | ||
| 19 | 48126-93J00 Nylon Washer
SKU: 48126-93J00 Weight: 0.060000 Brand: Price: $ 9.52 |
Nylon Washer | 2 | $ 9.52 | ||
| 20 | 48320-93J00 Valve Set
SKU: 48320-93J00 Weight: 0.100000 Brand: Price: $ 23.88 |
Valve Set | 1 | $ 23.88 | ||
| 21 | 48573-93J00 Cover
SKU: 48573-93J00 Weight: 0.100000 Brand: Price: $ 43.44 |
Cover | 1 | $ 43.44 | ||
| 21-1 | 48128-93J00 Bolt
SKU: 48128-93J00 Weight: 0.200000 Brand: Price: $ 9.91 |
Bolt | 1 | $ 9.91 | ||
| 22-2 | 48128-93J11 Bolt
SKU: 48128-93J11 Weight: 0.100000 Brand: Price: $ 10.88 |
Bolt | 1 | $ 10.88 | DF225T: S/N 980463 Newer DF225Z: S/N 980116 Newer | |
| 23 | 48311-96J10 Trim Cylinder Ram Pad
SKU: 48311-96J10 Weight: 0.125000 Brand: Price: $ 41.00 |
Trim Cylinder Ram Pad | 2 | $ 41.00 | ||
| 24 | 48321-93J00 Tilt Cylinder Upper Shaft
SKU: 48321-93J00 Weight: 0.250000 Brand: Price: $ 46.53 |
Tilt Cylinder Upper Shaft | 1 | $ 46.53 | ||
| 25 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 2 | $ 2.04 | ||
| 26 | 09162-10005 Lock Washer
SKU: 09162-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Lock Washer | 2 | $ 1.86 | ||
| 27 | 09306-24001 Tilt Cylinder Upper Bushing
SKU: 09306-24001 Weight: 0.060000 Brand: Price: $ 1.90 |
Tilt Cylinder Upper Bushing | 2 | $ 1.90 | ||
| 28 | 09380-21002 Tilt Cylinder Circlip
SKU: 09380-21002 Weight: 0.200000 Brand: Price: $ 2.55 |
Tilt Cylinder Circlip | 2 | $ 2.55 | ||
| 29 | 09116-10175 Bolt (10x50)
SKU: 09116-10175 Weight: 0.125000 Brand: Price: $ 6.90 |
Bolt (10x50) | 8 | $ 6.90 | ||
| 30 | 48571-93J00 Resevoir Tank
SKU: 48571-93J00 Weight: 1.000000 Brand: Price: $ 217.82 |
Resevoir Tank | 1 | $ 217.82 | ||
| 31 | 36895-87D01 Wire Lead (L:210)
SKU: 36895-87D01 Weight: 0.060000 Brand: Price: $ 14.20 |
Wire Lead (L:210) | 1 | $ 14.20 | PTT to Anode DF225T: S/N 680175 Newer DF225Z: S/N 680048 Newer | |
| 32 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 1 | $ 1.88 | DF225T: S/N 680175 Newer DF225Z: S/N 680048 Newer |
