Suzuki DF 250 Parts Listings - 2023
S/N 25003F-340001 to 25003F-34XXXX
S/N 25003Z-340001 to 25003Z-34XXXX
S/N 25004F-340001 to 25004F-34XXXX

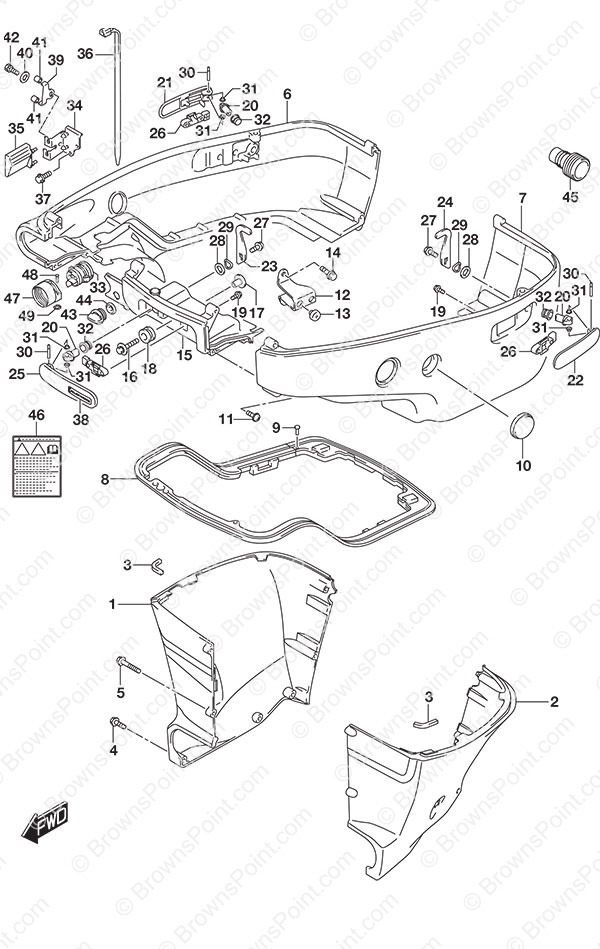

Fig. 410B - Side Cover SS Model w/Transom (L)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61131-93J20-YAY Starboard Oil Pan Cover
SKU: 61131-93J20-YAY Weight: 5.000000 Brand: Price: $ 311.13 |
Starboard Oil Pan Cover | 1 | $ 311.13 | Black | |
| 1-2 | 61131-93J20-YKV Starboard Oil Pan Cover
SKU: 61131-93J20-YKV Weight: 5.000000 Brand: Price: $ 383.19 |
Starboard Oil Pan Cover | 1 | $ 383.19 | Matte Black | |
| 2-1 | 61141-93J20-YAY Port Oil Pan Cover
SKU: 61141-93J20-YAY Weight: 15.000000 Brand: Price: $ 311.13 |
Port Oil Pan Cover | 1 | $ 311.13 | Black | |
| 2-2 | 61141-93J20-YKV Port Oil Pan Cover
SKU: 61141-93J20-YKV Weight: 15.000000 Brand: Price: $ 383.19 |
Port Oil Pan Cover | 1 | $ 383.19 | Matte Black | |
| 3 | 61137-93J01 Oil Pan Cover Upper Cushion
SKU: 61137-93J01 Weight: 0.060000 Brand: Price: $ 7.94 |
Oil Pan Cover Upper Cushion | 2 | $ 7.94 | ||
| 4 | 09136-06161 Screw (6x17)
SKU: 09136-06161 Weight: 0.060000 Brand: Price: $ 3.16 |
Screw (6x17) | 8 | $ 3.16 | ||
| 5 | 09139-06249 SCREW
SKU: 09139-06249 Weight: 0.000000 Brand: Price: $ 1.96 |
SCREW | 3 | $ 1.96 | ||
| 6-1 | 61811-93J30-YAY Starboard Side Cover
SKU: 61811-93J30-YAY Weight: 10.000000 Brand: Price: $ 317.48 |
Starboard Side Cover | 1 | $ 317.48 | Black | |
| 6-2 | 61811-93J30-YKV Starboard Side Cover
SKU: 61811-93J30-YKV Weight: 10.000000 Brand: Price: $ 577.28 |
Starboard Side Cover | 1 | $ 577.28 | Matte Black | |
| 7-1 | 61821-93J10-YAY Port Side Cover
SKU: 61821-93J10-YAY Weight: 11.000000 Brand: Price: $ 317.48 |
Port Side Cover | 1 | $ 317.48 | Black | |
| 7-2 | 61821-93J10-YKV Port Side Cover
SKU: 61821-93J10-YKV Weight: 11.000000 Brand: Price: $ 566.59 |
Port Side Cover | 1 | $ 566.59 | Matte Black | |
| 8 | 61134-93J21 Side Cover Seal
SKU: 61134-93J21 Weight: 1.880000 Brand: Price: $ 97.68 |
Side Cover Seal | 1 | $ 97.68 | ||
| 10 | 61817-93J01 Side Cover Plug
SKU: 61817-93J01 Weight: 0.060000 Brand: Price: $ 4.50 |
Side Cover Plug | 2 | $ 4.50 | ||
| 11 | 09139-06249 SCREW
SKU: 09139-06249 Weight: 0.000000 Brand: Price: $ 1.96 |
SCREW | 8 | $ 1.96 | ||
| 12 | 61827-93J02 Side Cover Holder
SKU: 61827-93J02 Weight: 0.250000 Brand: Price: $ 44.57 |
Side Cover Holder | 1 | $ 44.57 | ||
| 13 | 09321-10049 CUSHION,SIDE CO
SKU: 09321-10049 Weight: 0.000000 Brand: Price: $ 1.99 |
CUSHION,SIDE CO | 2 | $ 1.99 | ||
| 14 | 01550-08167 BOLT
SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 2 | $ 2.84 | ||
| 15-1 | 61831-93J13-YAY Front Panel
SKU: 61831-93J13-YAY Weight: 0.500000 Brand: Price: $ 132.54 |
Front Panel | 1 | $ 132.54 | Black | |
| 15-2 | 61831-93J13-YKV Front Panel
SKU: 61831-93J13-YKV Weight: 0.500000 Brand: Price: $ 153.30 |
Front Panel | 1 | $ 153.30 | Matte Black | |
| 16 | 09116-08174 Bolt (8x38)
SKU: 09116-08174 Weight: 0.060000 Brand: Price: $ 4.19 |
Bolt (8x38) | 2 | $ 4.19 | ||
| 17 | 09169-08039 Washer (8.5x30x1.5) (NLA)
SKU: 09169-08039 Weight: 0.060000 Brand: Price: $ 4.91 |
Washer (8.5x30x1.5) (NLA) | 2 | $ 4.91 | ||
| 18 | 09320-11023 CUSHION,FRONT P
SKU: 09320-11023 Weight: 0.000000 Brand: Price: $ 2.91 |
CUSHION,FRONT P | 2 | $ 2.91 | ||
| 19 | 01550-05107 BOLT
SKU: 01550-05107 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 6 | $ 2.33 | ||
| 20 | 61632-93J00 Engine Cover Hook Shaft
SKU: 61632-93J00 Weight: 0.125000 Brand: Price: $ 37.52 |
Engine Cover Hook Shaft | 3 | $ 37.52 | ||
| 21-1 | 61633-93J00-YAY Starboard Rear Hook Lever
SKU: 61633-93J00-YAY Weight: 0.200000 Brand: Price: $ 173.31 |
Starboard Rear Hook Lever | 1 | $ 173.31 | Black | |
| 21-2 | 61633-93J00-YKV Starboard Rear Hook Lever
SKU: 61633-93J00-YKV Weight: 0.200000 Brand: Price: $ 157.92 |
Starboard Rear Hook Lever | 1 | $ 157.92 | Matte Black | |
| 22-1 | 61634-93J00-YAY Port Rear Hook Lever
SKU: 61634-93J00-YAY Weight: 0.180000 Brand: Price: $ 137.77 |
Port Rear Hook Lever | 1 | $ 137.77 | Black | |
| 22-2 | 61634-93J00-YKV Port Rear Hook Lever
SKU: 61634-93J00-YKV Weight: 0.200000 Brand: Price: $ 126.41 |
Port Rear Hook Lever | 1 | $ 126.41 | Matte Black | |
| 23 | 61641-93J10 Engine Cover Hook
SKU: 61641-93J10 Weight: 0.080000 Brand: Price: $ 27.45 |
Engine Cover Hook | 2 | $ 27.45 | Rear Stbd/Front | |
| 24 | 61641-93J20 Engine Cover Hook
SKU: 61641-93J20 Weight: 0.140000 Brand: Price: $ 28.38 |
Engine Cover Hook | 1 | $ 28.38 | Rear Port | |
| 25 | 61645-93J01-YAY Front Hook Lever
SKU: 61645-93J01-YAY Weight: 0.200000 Brand: Price: $ 136.50 |
Front Hook Lever | 1 | $ 136.50 | Black | |
| 26 | 61673-93J02 LATCH,HOOK LEVE
SKU: 61673-93J02 Weight: 0.000000 Brand: Price: $ 9.52 |
LATCH,HOOK LEVE | 3 | $ 9.52 | ||
| 27 | 09116-06127 Bolt (6x12)
SKU: 09116-06127 Weight: 0.060000 Brand: Price: $ 2.98 |
Bolt (6x12) | 3 | $ 2.98 | ||
| 28 | 09160-13014 Washer (13.2x25x1.0)
SKU: 09160-13014 Weight: 0.060000 Brand: Price: $ 2.99 |
Washer (13.2x25x1.0) | 3 | $ 2.99 | ||
| 29 | 09164-14008 Wave Washer
SKU: 09164-14008 Weight: 0.060000 Brand: Price: $ 2.04 |
Wave Washer | 3 | $ 2.04 | ||
| 30 | 09202-04022 Hook Lever Pin
SKU: 09202-04022 Weight: 0.060000 Brand: Price: $ 2.82 |
Hook Lever Pin | 3 | $ 2.82 | ||
| 31 | 09306-04005 Hook Lever Bushing
SKU: 09306-04005 Weight: 0.060000 Brand: Price: $ 3.19 |
Hook Lever Bushing | 6 | $ 3.19 | ||
| 32 | 09306-13007 Bushing
SKU: 09306-13007 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 3 | $ 2.81 | ||
| 33 | 61124-93J60 Remote Control Cable Grommet
SKU: 61124-93J60 Weight: 0.250000 Brand: Price: $ 20.28 |
Remote Control Cable Grommet | 1 | $ 20.28 | ||
| 34 | 67341-93J30 Remocon Cable Holder
SKU: 67341-93J30 Weight: 0.260000 Brand: Price: $ 20.43 |
Remocon Cable Holder | 1 | $ 20.43 | ||
| 35 | 67345-93J00 Remocon Cable Holder Protector
SKU: 67345-93J00 Weight: 0.060000 Brand: Price: $ 11.58 |
Remocon Cable Holder Protector | 1 | $ 11.58 | ||
| 36 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | ||
| 37 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 38 | 61649-93J00 Hook Lever Label
SKU: 61649-93J00 Weight: 0.060000 Brand: Price: $ 5.65 |
Hook Lever Label | 1 | $ 5.65 | ||
| 39 | 67343-93J30 Remocon Cable Stopper
SKU: 67343-93J30 Weight: 0.060000 Brand: Price: $ 4.57 |
Remocon Cable Stopper | 1 | $ 4.57 | ||
| 40 | 09160-06047 Washer (6.2x20x2)
SKU: 09160-06047 Weight: 0.060000 Brand: Price: $ 1.91 |
Washer (6.2x20x2) | 1 | $ 1.91 | ||
| 41 | 09352-70104-600 Hose (7x10.2x600)
SKU: 09352-70104-600 Weight: 0.060000 Brand: Price: $ 5.72 |
Hose (7x10.2x600) | 2 | $ 5.72 | L:600->21 | |
| 42 | 01570-06107 BOLT
SKU: 01570-06107 Weight: 0.060000 Brand: Price: $ 2.59 |
BOLT | 1 | $ 2.59 | ||
| 43 | 17913-93J00 Water Flush Plug
SKU: 17913-93J00 Weight: 0.060000 Brand: Price: $ 4.56 |
Water Flush Plug | 1 | $ 4.56 | ||
| 44 | 17914-93J01 Water Flush Plug Gasket
SKU: 17914-93J01 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Flush Plug Gasket | 1 | $ 2.28 | ||
| 45 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.07 |
Water Flush Connector | 1 | $ 10.07 | ||
| 46 | 61458-90J01 Engine Cover Label
SKU: 61458-90J01 Weight: 0.125000 Brand: Price: $ 4.27 |
Engine Cover Label | 1 | $ 4.27 | ||
| 47 | 67361-90J10 Rigging Hose Adapter
SKU: 67361-90J10 Weight: 0.500000 Brand: Price: $ 8.36 |
Rigging Hose Adapter | 1 | $ 8.36 | Optional | |
| 48-1 | 09208-06009 Hose Adapter Pin
SKU: 09208-06009 Weight: 0.125000 Brand: Price: $ 1.88 |
Hose Adapter Pin | 2 | $ 1.88 | Use with pin w/e ring | |
| 48-2 | 09208-06011 PIN,HOSE ADAPTE
SKU: 09208-06011 Weight: 0.000000 Brand: Price: $ 1.96 |
PIN,HOSE ADAPTE | 2 | $ 1.96 | ||
| 49 | 09383-04002 E Ring
SKU: 09383-04002 Weight: 0.060000 Brand: Price: $ 0.76 |
E Ring | 2 | $ 0.76 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
