Suzuki DF 250 Parts Listings - 2023
S/N 25003F-340001 to 25003F-34XXXX
S/N 25003Z-340001 to 25003Z-34XXXX
S/N 25004F-340001 to 25004F-34XXXX

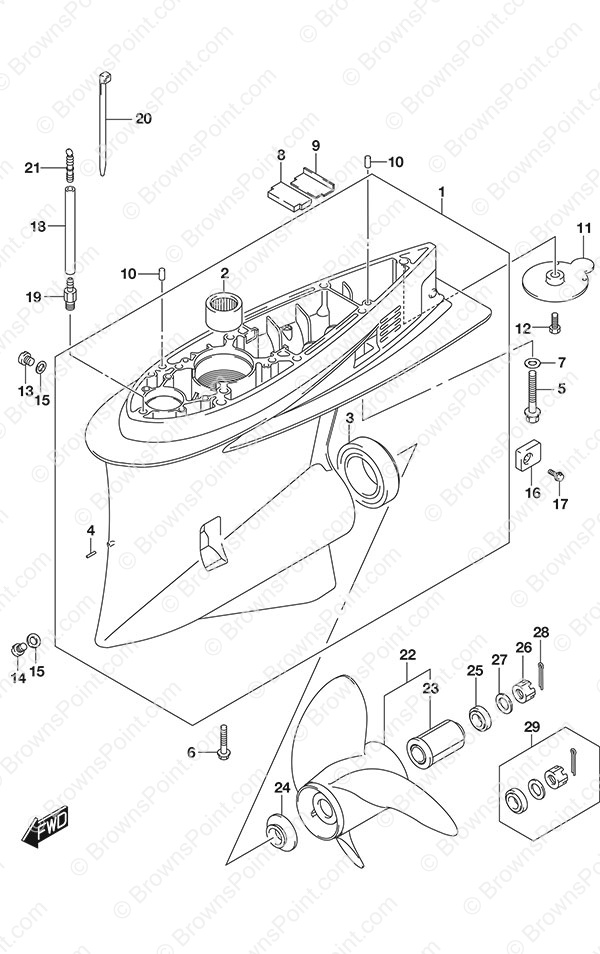

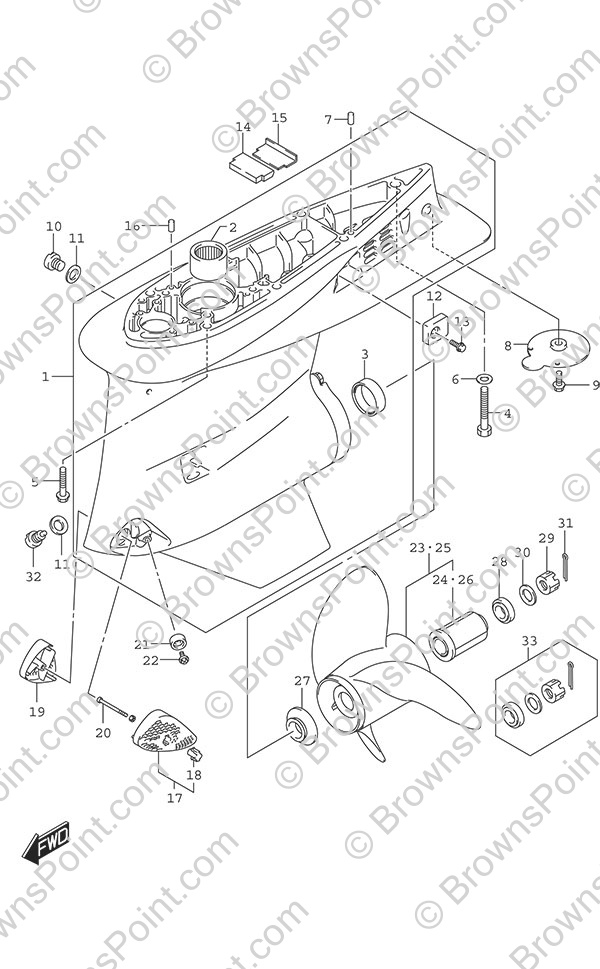

Fig. 407C - Gear Case SS Model
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55110-98J01-YAY Gear Case Housing
SKU: 55110-98J01-YAY Weight: 42.000000 Brand: Price: $ 1,871.05 |
Gear Case Housing | 1 | $ 1,871.05 | ||
| 2 | 09263-36004 Pinion Bearing (36x51x32)
SKU: 09263-36004 Weight: 0.500000 Brand: Price: $ 253.43 |
Pinion Bearing (36x51x32) | 1 | $ 253.43 | ||
| 3 | 09265-50001 Bearing (50x90x32)
SKU: 09265-50001 Weight: 2.000000 Brand: Price: $ 138.71 |
Bearing (50x90x32) | 1 | $ 138.71 | ||
| 4 | 09206-03001 Bushing (2x3x11) (NLA)
SKU: 09206-03001 Weight: 0.100000 Brand: Price: $ 2.45 |
Bushing (2x3x11) (NLA) | 1 | $ 2.45 | ||
| 5 | 09100-12052 Bolt (12x70)
SKU: 09100-12052 Weight: 0.160000 Brand: Price: $ 11.80 |
Bolt (12x70) | 1 | $ 11.80 | ||
| 6 | 09116-10150 Bolt (10x55)
SKU: 09116-10150 Weight: 0.200000 Brand: Price: $ 15.95 |
Bolt (10x55) | 6 | $ 15.95 | ||
| 7 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 1 | $ 1.80 | ||
| 9 | 55333-98J00 Exhaust Seal Plate
SKU: 55333-98J00 Weight: 0.060000 Brand: Price: $ 15.80 |
Exhaust Seal Plate | 1 | $ 15.80 | ||
| 10 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 11-1 | 55125-98J10 Trim Tab
SKU: 55125-98J10 Weight: 0.100000 Brand: Price: $ 29.98 |
Trim Tab | 1 | $ 29.98 | w/Transom (L) | |
| 11-2 | 55125-98J00-YAY Trim Tab
SKU: 55125-98J00-YAY Weight: 0.300000 Brand: Price: $ 97.68 |
Trim Tab | 1 | $ 97.68 | w/Transom (X) | |
| 12 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 1 | $ 7.44 | ||
| 13 | 55128-93J10 Drain Plug
SKU: 55128-93J10 Weight: 0.060000 Brand: Price: $ 5.92 |
Drain Plug | 1 | $ 5.92 | ||
| 14 | 55128-93L00 Drain Plug w/Magnet
SKU: 55128-93L00 Weight: 0.060000 Brand: Price: $ 12.96 |
Drain Plug w/Magnet | 1 | $ 12.96 | ||
| 15 | 09168-10038 GASKET,DRAIN PL
SKU: 09168-10038 Weight: 0.000000 Brand: Price: $ 2.23 |
GASKET,DRAIN PL | 2 | $ 2.23 | ||
| 16 | 55321-93J01 Protection Anode
SKU: 55321-93J01 Weight: 0.125000 Brand: Price: $ 15.13 |
Protection Anode | 2 | $ 15.13 | ||
| 17 | 09116-06236 Bolt (6x16)
SKU: 09116-06236 Weight: 0.060000 Brand: Price: $ 1.78 |
Bolt (6x16) | 2 | $ 1.78 | ||
| 18 | 09355-40805-600 Hose (4x8x600)
SKU: 09355-40805-600 Weight: 0.250000 Brand: Price: $ 9.81 |
Hose (4x8x600) | 1 | $ 9.81 | L:600->50 | |
| 19 | 09362-09008 Nipple
SKU: 09362-09008 Weight: 0.060000 Brand: Price: $ 2.92 |
Nipple | 1 | $ 2.92 | ||
| 20 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 2 | $ 2.52 | ||
| 21 | 55127-87D00 Hose Union
SKU: 55127-87D00 Weight: 0.060000 Brand: Price: $ 3.83 |
Hose Union | 1 | $ 3.83 | ||
| 22-1 | 990C0-00810-17P S/S Watergrip Propeller 3x16x17
SKU: 990C0-00810-17P Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x17 | 1 | $ 696.48 | Optional | |
| 22-2 | 990C0-00810-185 S/S Watergrip Propeller 3x16x18-1/2
SKU: 990C0-00810-185 Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x18-1/2 | 1 | $ 696.48 | Optional | |
| 22-3 | 990C0-00810-20P S/S Watergrip Propeller 3x16x20
SKU: 990C0-00810-20P Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x20 | 1 | $ 696.48 | Optional | |
| 22-4 | 990C0-00810-215 S/S Watergrip Propeller 3x16x21-1/2
SKU: 990C0-00810-215 Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x21-1/2 | 1 | $ 696.48 | Optional | |
| 22-5 | 990C0-00810-23P S/S Watergrip Propeller 3x16x23
SKU: 990C0-00810-23P Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x23 | 1 | $ 696.48 | Optional | |
| 22-6 | 990C0-00810-245 S/S Watergrip Propeller 3x16x24-1/2
SKU: 990C0-00810-245 Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x24-1/2 | 1 | $ 696.48 | Optional | |
| 22-7 | 990C0-00810-26P S/S Watergrip Propeller 3x16x26
SKU: 990C0-00810-26P Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x26 | 1 | $ 696.48 | Optional | |
| 22-8 | 990C0-00810-275 S/S Watergrip Propeller 3x16x27-1/2
SKU: 990C0-00810-275 Weight: 25.000000 Brand: Price: $ 696.48 |
S/S Watergrip Propeller 3x16x27-1/2 | 1 | $ 696.48 | Optional | |
| 22-9 | 990C0-00840-17P S/S Watergrip Propeller 3x15-1/2x17
SKU: 990C0-00840-17P Weight: 25.000000 Brand: Price: $ 750.70 |
S/S Watergrip Propeller 3x15-1/2x17 | 1 | $ 750.70 | Optional | |
| 22-10 | 990C0-00840-19P S/S Watergrip Propeller 3x15-1/4x19
SKU: 990C0-00840-19P Weight: 25.000000 Brand: Price: $ 750.70 |
S/S Watergrip Propeller 3x15-1/4x19 | 1 | $ 750.70 | Optional | |
| 22-11 | 990C0-00840-21P S/S Watergrip Propeller 3x15x21
SKU: 990C0-00840-21P Weight: 25.000000 Brand: Price: $ 750.70 |
S/S Watergrip Propeller 3x15x21 | 1 | $ 750.70 | Optional | |
| 22-12 | 990C0-00840-23P S/S Watergrip Propeller 3x14-3/4x23
SKU: 990C0-00840-23P Weight: 25.000000 Brand: Price: $ 750.70 |
S/S Watergrip Propeller 3x14-3/4x23 | 1 | $ 750.70 | Optional | |
| 22-13 | 990C0-00840-25P S/S Watergrip Propeller 3x14-3/4x25
SKU: 990C0-00840-25P Weight: 25.000000 Brand: Price: $ 750.70 |
S/S Watergrip Propeller 3x14-3/4x25 | 1 | $ 750.70 | Optional | |
| 22-14 | 990C0-00840-27P S/S Watergrip Propeller 3x14-1/2x27
SKU: 990C0-00840-27P Weight: 25.000000 Brand: Price: $ 750.70 |
S/S Watergrip Propeller 3x14-1/2x27 | 1 | $ 750.70 | Optional | |
| 22-15 | 990C0-00510-20P S/S Watergrip Propeller 4x15.25x20
SKU: 990C0-00510-20P Weight: 20.000000 Brand: Price: $ 917.79 |
S/S Watergrip Propeller 4x15.25x20 | 1 | $ 917.79 | Optional | |
| 22-16 | 990C0-00510-22P S/S Watergrip Propeller 4x15.25x22
SKU: 990C0-00510-22P Weight: 20.000000 Brand: Price: $ 917.79 |
S/S Watergrip Propeller 4x15.25x22 | 1 | $ 917.79 | Optional | |
| 22-17 | 990C0-00510-24P S/S Watergrip Propeller 4x15.25x24
SKU: 990C0-00510-24P Weight: 20.000000 Brand: Price: $ 917.79 |
S/S Watergrip Propeller 4x15.25x24 | 1 | $ 917.79 | Optional | |
| 22-18 | 990C0-00510-26P S/S Watergrip Propeller 4x15.25x26
SKU: 990C0-00510-26P Weight: 20.000000 Brand: Price: $ 917.79 |
S/S Watergrip Propeller 4x15.25x26 | 1 | $ 917.79 | Optional | |
| 22-19 | 990C0-00622-17P S/S Propeller 4x14.25x17
SKU: 990C0-00622-17P Weight: 25.000000 Brand: Price: $ 755.70 |
S/S Propeller 4x14.25x17 | 1 | $ 755.70 | Optional | |
| 22-20 | 990C0-00622-18P S/S Propeller 4x14.25x18
SKU: 990C0-00622-18P Weight: 25.000000 Brand: Price: $ 755.70 |
S/S Propeller 4x14.25x18 | 1 | $ 755.70 | Optional | |
| 22-21 | 990C0-00622-19P S/S Propeller 4x14.25x19
SKU: 990C0-00622-19P Weight: 25.000000 Brand: Price: $ 755.70 |
S/S Propeller 4x14.25x19 | 1 | $ 755.70 | Optional | |
| 22-22 | 990C0-00622-20P S/S Propeller 4x14.25x20
SKU: 990C0-00622-20P Weight: 25.000000 Brand: Price: $ 755.70 |
S/S Propeller 4x14.25x20 | 1 | $ 755.70 | Optional | |
| 22-23 | 990C0-00622-21P S/S Propeller 4x14.25x21
SKU: 990C0-00622-21P Weight: 25.000000 Brand: Price: $ 755.70 |
S/S Propeller 4x14.25x21 | 1 | $ 755.70 | Optional | |
| 22-24 | 990C0-00622-22P S/S Propeller 4x14.25x22
SKU: 990C0-00622-22P Weight: 25.000000 Brand: Price: $ 755.70 |
S/S Propeller 4x14.25x22 | 1 | $ 755.70 | Optional | |
| 22-25 | 990C0-00622-23P S/S Propeller 4x14.25x23
SKU: 990C0-00622-23P Weight: 25.000000 Brand: Price: $ 755.70 |
S/S Propeller 4x14.25x23 | 1 | $ 755.70 | Optional | |
| 22-26 | 990C0-00622-24P S/S Propeller 4x14.25x24
SKU: 990C0-00622-24P Weight: 25.000000 Brand: Price: $ 755.70 |
S/S Propeller 4x14.25x24 | 1 | $ 755.70 | Optional | |
| 22-27 | 990C0-00622-25P S/S Propeller 4x14.25x25
SKU: 990C0-00622-25P Weight: 25.000000 Brand: Price: $ 755.70 |
S/S Propeller 4x14.25x25 | 1 | $ 755.70 | Optional | |
| 22-28 | 990C0-00622-26P S/S Propeller 4x14.25x26
SKU: 990C0-00622-26P Weight: 25.000000 Brand: Price: $ 755.70 |
S/S Propeller 4x14.25x26 | 1 | $ 755.70 | Optional | |
| 22-29 | 990C0-00622-27P S/S Propeller 4x14.25x27
SKU: 990C0-00622-27P Weight: 25.000000 Brand: Price: $ 755.70 |
S/S Propeller 4x14.25x27 | 1 | $ 755.70 | Optional | |
| 22-33 | 990C0-00630-28P S/S Propeller 4x14.5x28
SKU: 990C0-00630-28P Weight: 25.000000 Brand: Price: $ 966.58 |
S/S Propeller 4x14.5x28 | 1 | $ 966.58 | Optional | |
| 22-30 | 990C0-00622-28P S/S Propeller 4x14.25x28
SKU: 990C0-00622-28P Weight: 25.000000 Brand: Price: $ 755.70 |
S/S Propeller 4x14.25x28 | 1 | $ 755.70 | Optional | |
| 22-31 | 990C0-00630-26P S/S Propeller 4x14.5x26
SKU: 990C0-00630-26P Weight: 25.000000 Brand: Price: $ 966.58 |
S/S Propeller 4x14.5x26 | 1 | $ 966.58 | Optional | |
| 22-32 | 990C0-00630-27P S/S Propeller 4x14.5x27
SKU: 990C0-00630-27P Weight: 25.000000 Brand: Price: $ 966.58 |
S/S Propeller 4x14.5x27 | 1 | $ 966.58 | Optional | |
| 22-34 | 990C0-00630-29P S/S Propeller 4x14.5x29
SKU: 990C0-00630-29P Weight: 25.000000 Brand: Price: $ 966.58 |
S/S Propeller 4x14.5x29 | 1 | $ 966.58 | Optional | |
| 22-35 | 990C0-00630-30P S/S Propeller 4x14.5x30
SKU: 990C0-00630-30P Weight: 25.000000 Brand: Price: $ 966.58 |
S/S Propeller 4x14.5x30 | 1 | $ 966.58 | Optional | |
| 23 | 58120-93L00 Watergrip Propeller Bushing Set
SKU: 58120-93L00 Weight: 2.000000 Brand: Price: $ 161.44 |
Watergrip Propeller Bushing Set | 1 | $ 161.44 | ||
| 24 | 57632-93L11 Watergrip Propeller Bushing Stopper
SKU: 57632-93L11 Weight: 0.500000 Brand: Price: $ 67.60 |
Watergrip Propeller Bushing Stopper | 1 | $ 67.60 | ||
| 25 | 57633-93L00 Watergrip Propeller Nut Spacer
SKU: 57633-93L00 Weight: 0.250000 Brand: Price: $ 26.25 |
Watergrip Propeller Nut Spacer | 1 | $ 26.25 | ||
| 26 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | ||
| 27 | 09160-18028 Washer (18.5x31x1.0)
SKU: 09160-18028 Weight: 0.060000 Brand: Price: $ 3.69 |
Washer (18.5x31x1.0) | 1 | $ 3.69 | ||
| 28 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 29 | 57630-93L00 Watergrip Propeller Hardware Kit
SKU: 57630-93L00 Weight: 0.500000 Brand: Price: $ 38.97 |
Watergrip Propeller Hardware Kit | 1 | $ 38.97 | Optional | |
| 30 | 25700-98J01 Gear Case Seal Kit - DF 250S/DF300
SKU: 25700-98J01 Weight: 0.250000 Brand: Price: $ 34.42 |
Gear Case Seal Kit - DF 250S/DF300 | 1 | $ 34.42 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
