Suzuki DF 250 Parts Listings - 2023
S/N 25003F-340001 to 25003F-34XXXX
S/N 25003Z-340001 to 25003Z-34XXXX
S/N 25004F-340001 to 25004F-34XXXX

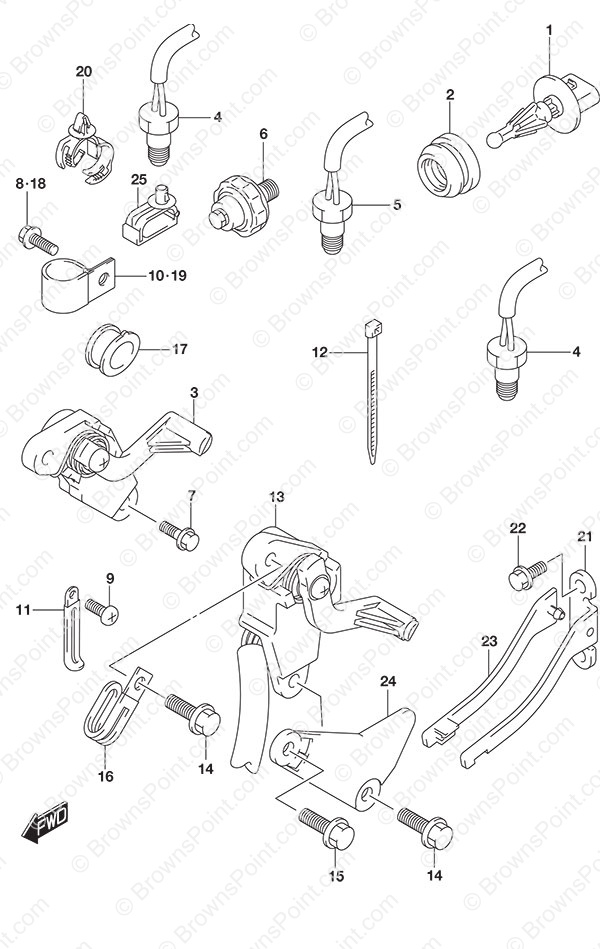

Fig. 315A - Sensor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13650-52G00 Inlet Air Temp Sensor
SKU: 13650-52G00 Weight: 0.060000 Brand: Price: $ 113.36 |
Inlet Air Temp Sensor | 1 | $ 113.36 | ||
| 2 | 13655-87J01 Air Temp Sensor Grommet
SKU: 13655-87J01 Weight: 0.125000 Brand: Price: $ 2.91 |
Air Temp Sensor Grommet | 1 | $ 2.91 | ||
| 3 | 34801-93J04 Trim Sender Assembly
SKU: 34801-93J04 Weight: 0.500000 Brand: Price: $ 105.97 |
Trim Sender Assembly | 1 | $ 105.97 | w/Transom (X) | |
| 4 | 34830-87J20 Temp Sensor Assy
SKU: 34830-87J20 Weight: 0.060000 Brand: Price: $ 71.57 |
Temp Sensor Assy | 2 | $ 71.57 | Exhaust Temp | |
| 5 | 34830-87J20 Temp Sensor Assy
SKU: 34830-87J20 Weight: 0.060000 Brand: Price: $ 71.57 |
Temp Sensor Assy | 1 | $ 71.57 | Cylinder Temp | |
| 6 | 37820-99E02 Oil Pressure Switch
SKU: 37820-99E02 Weight: 0.125000 Brand: Price: $ 24.10 |
Oil Pressure Switch | 1 | $ 24.10 | ||
| 7 | 09100-06113 Bolt (6x16)
SKU: 09100-06113 Weight: 0.200000 Brand: Price: $ 1.93 |
Bolt (6x16) | 2 | $ 1.93 | w/Transom (X) | |
| 8 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 1 | $ 2.05 | w/Transom (X) | |
| 9 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | w/Transom (X) | |
| 10 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 1 | $ 5.28 | w/Transom (X) | |
| 11 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | w/Transom (X) | |
| 12 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 13 | 34801-99E05 Trim Sender
SKU: 34801-99E05 Weight: 1.000000 Brand: Price: $ 221.38 |
Trim Sender | 1 | $ 221.38 | w/Transom (L) | |
| 14 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | w/Transom (L) | |
| 15 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | w/Transom (L) | |
| 16 | 29404-93J21 CLAMP
SKU: 29404-93J21 Weight: 0.000000 Brand: Price: $ 2.16 |
CLAMP | 1 | $ 2.16 | w/Transom (L) | |
| 17 | 34813-93J00 Lead Wire Protector (NLA)
SKU: 34813-93J00 Weight: 0.100000 Brand: Price: $ 4.07 |
Lead Wire Protector (NLA) | 1 | $ 4.07 | w/Transom (L) | |
| 18 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 1 | $ 2.05 | w/Transom (L) | |
| 19 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 1 | $ 5.28 | w/Transom (L) | |
| 20 | 09403-20308 Clip
SKU: 09403-20308 Weight: 0.060000 Brand: Price: $ 3.61 |
Clip | 1 | $ 3.61 | w/Transom (L) | |
| 21 | 43117-96J00 Trim Sender Cam
SKU: 43117-96J00 Weight: 0.100000 Brand: Price: $ 10.81 |
Trim Sender Cam | 1 | $ 10.81 | w/Transom (L) | |
| 22 | 09116-05010 Bolt (5x12)
SKU: 09116-05010 Weight: 0.060000 Brand: Price: $ 2.14 |
Bolt (5x12) | 2 | $ 2.14 | w/Transom (L) | |
| 23 | 43118-96J00 Trim Sender Cam Plate
SKU: 43118-96J00 Weight: 0.125000 Brand: Price: $ 6.29 |
Trim Sender Cam Plate | 1 | $ 6.29 | w/Transom (L) | |
| 24 | 41118-96J00 Trim Sender Plate
SKU: 41118-96J00 Weight: 0.100000 Brand: Price: $ 8.05 |
Trim Sender Plate | 1 | $ 8.05 | w/Transom (L) | |
| 25 | 09403-07340 Clamp
SKU: 09403-07340 Weight: 0.100000 Brand: Price: $ 3.90 |
Clamp | 1 | $ 3.90 | w/Transom (X) |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
