Suzuki DF 225 Parts Listings 2004 to S/N 22503F-11XXXX 2004 to S/N 22503Z-11XXXX

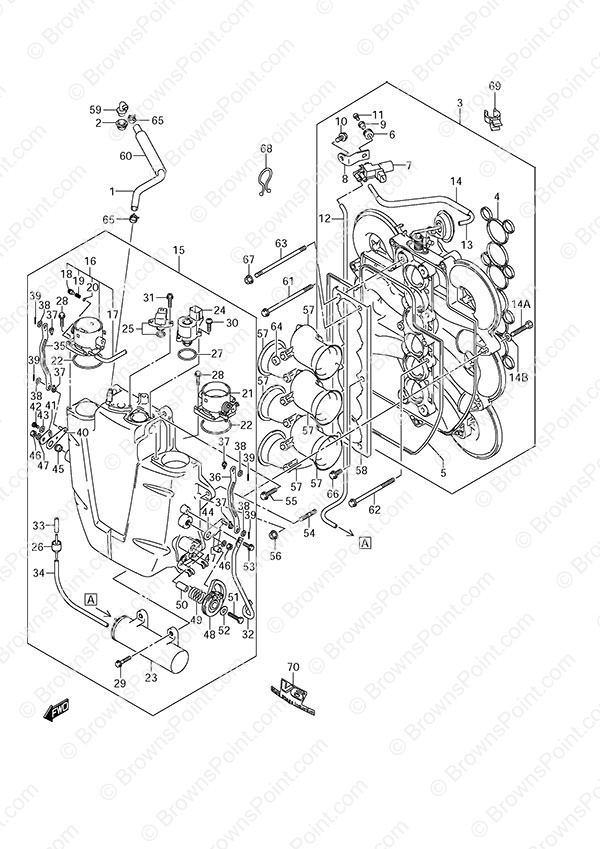

Fig. 19 - Throttle Body
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 3 | 13130-93J21 Collector
SKU: 13130-93J21 Weight: 15.000000 Brand: Price: $ 1,360.92 |
Collector | 1 | $ 1,360.92 | ||
| 4 | 13139-93J00 Collector Gasket
SKU: 13139-93J00 Weight: 0.080000 Brand: Price: $ 39.96 |
Collector Gasket | 1 | $ 39.96 | ||
| 5 | 13147-93J00 Collector Cover Gasket
SKU: 13147-93J00 Weight: 0.060000 Brand: Price: $ 38.32 |
Collector Cover Gasket | 1 | $ 38.32 | ||
| 6 | 18116-93J00 Vacum Valve Cushion (NLA)
SKU: 18116-93J00 Weight: 0.100000 Brand: Price: $ 2.27 |
Vacum Valve Cushion (NLA) | 1 | $ 2.27 | ||
| 7 | 18117-93J00 Vacuum Switching Valve
SKU: 18117-93J00 Weight: 0.500000 Brand: Price: $ 74.57 |
Vacuum Switching Valve | 1 | $ 74.57 | ||
| 8 | 18119-93J00 Vacum Valve Bracket
SKU: 18119-93J00 Weight: 0.100000 Brand: Price: $ 3.01 |
Vacum Valve Bracket | 1 | $ 3.01 | ||
| 9 | 09169-05018 Washer
SKU: 09169-05018 Weight: 0.060000 Brand: Price: $ 2.83 |
Washer | 1 | $ 2.83 | ||
| 10 | 01550-08167 BOLT
SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 1 | $ 2.84 | ||
| 11 | 02112-0512A SCREW
SKU: 02112-0512A Weight: 0.100000 Brand: Price: $ 1.44 |
SCREW | 1 | $ 1.44 | ||
| 12 | 09355-35754-00B Hose (3.5x7.5x2000)
SKU: 09355-35754-00B Weight: 0.250000 Brand: Price: $ 18.01 |
Hose (3.5x7.5x2000) | 1 | $ 18.01 | L:2000->610 | |
| 13 | 09355-35006-601 Hose (3.5x7.5x601)
SKU: 09355-35006-601 Weight: 1.000000 Brand: Price: $ 7.94 |
Hose (3.5x7.5x601) | 1 | $ 7.94 | L:601->160 | |
| 14 | 18498-90J01 Hose Protector
SKU: 18498-90J01 Weight: 0.250000 Brand: Price: $ 4.37 |
Hose Protector | 1 | $ 4.37 | L:290->140 | |
| 14A | 13138-93J00 Collector Bolt
SKU: 13138-93J00 Weight: 0.100000 Brand: Price: $ 16.94 |
Collector Bolt | 2 | $ 16.94 | 2008 Newer | |
| 14B | 08322-01087 Washer
SKU: 08322-01087 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer | 2 | $ 1.85 | 2008 Newer | |
| 15-1 | 13140-93JV2 Collector Cover
SKU: 13140-93JV2 Weight: 10.000000 Brand: Price: $ 2,000.80 |
Collector Cover | 1 | $ 2,000.80 | ||
| 15-2 | 13140-93J02 Collector Cover
SKU: 13140-93J02 Weight: 10.000000 Brand: Price: $ 1,493.26 |
Collector Cover | 1 | $ 1,493.26 | 2006 Newer | |
| 16-1 | 13310-93JV0 Throttle Body Assy No 1
SKU: 13310-93JV0 Weight: 2.000000 Brand: Price: $ 490.29 |
Throttle Body Assy No 1 | 1 | $ 490.29 | ||
| 16-2 | 13310-93J02 Throttle Body Assy No 1
SKU: 13310-93J02 Weight: 2.000000 Brand: Price: $ 437.22 |
Throttle Body Assy No 1 | 1 | $ 437.22 | 2006 Newer | |
| 17 | 13312-93J00 Bypass Air Hose
SKU: 13312-93J00 Weight: 0.125000 Brand: Price: $ 4.72 |
Bypass Air Hose | 1 | $ 4.72 | ||
| 18 | 13279-10G00 Bypass Air Screw (NLA)
SKU: 13279-10G00 Weight: 0.125000 Brand: Price: $ 7.58 |
Bypass Air Screw (NLA) | 1 | $ 7.58 | ||
| 19 | 13355-93J00 Bypass Air Spring (NLA)
SKU: 13355-93J00 Weight: 0.060000 Brand: Price: $ 1.86 |
Bypass Air Spring (NLA) | 1 | $ 1.86 | ||
| 20 | 13295-10G00 Bypass Air Screw O-Ring
SKU: 13295-10G00 Weight: 0.060000 Brand: Price: $ 3.68 |
Bypass Air Screw O-Ring | 1 | $ 3.68 | ||
| 21 | 13320-93J00 Throttle Body Assy No 2
SKU: 13320-93J00 Weight: 0.660000 Brand: Price: $ 481.11 |
Throttle Body Assy No 2 | 1 | $ 481.11 | ||
| 22 | 13421-93J00 Throttle Body Gasket
SKU: 13421-93J00 Weight: 0.060000 Brand: Price: $ 7.36 |
Throttle Body Gasket | 2 | $ 7.36 | ||
| 23 | 13730-93J00 Vacum Chamber
SKU: 13730-93J00 Weight: 0.250000 Brand: Price: $ 96.45 |
Vacum Chamber | 1 | $ 96.45 | ||
| 24 | 18137-52D00 IAC Valve
SKU: 18137-52D00 Weight: 0.500000 Brand: Price: $ 358.11 |
IAC Valve | 1 | $ 358.11 | ||
| 25 | 18590-68H00 MAP Sensor
SKU: 18590-68H00 Weight: 0.120000 Brand: Price: $ 297.49 |
MAP Sensor | 1 | $ 297.49 | MAP | |
| 26 | 95569-78040 Check Valve
SKU: 95569-78040 Weight: 0.060000 Brand: Price: $ 40.38 |
Check Valve | 1 | $ 40.38 | ||
| 27 | 09280-29008 IAC Valve O-Ring
SKU: 09280-29008 Weight: 0.060000 Brand: Price: $ 4.04 |
IAC Valve O-Ring | 1 | $ 4.04 | ||
| 28 | 01547-06257 BOLT 6X25
SKU: 01547-06257 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6X25 | 4 | $ 2.04 | ||
| 29 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 30 | 02112-3416B SCREW
SKU: 02112-3416B Weight: 0.200000 Brand: Price: $ 2.21 |
SCREW | 3 | $ 2.21 | ||
| 31 | 02162-0520B SCREW
SKU: 02162-0520B Weight: 0.250000 Brand: Price: $ 2.27 |
SCREW | 2 | $ 2.27 | ||
| 32 | 13144-93J00 Throttle Drum Guard
SKU: 13144-93J00 Weight: 0.100000 Brand: Price: $ 21.32 |
Throttle Drum Guard | 1 | $ 21.32 | ||
| 33 | 09355-35006-601 Hose (3.5x7.5x601)
SKU: 09355-35006-601 Weight: 1.000000 Brand: Price: $ 7.94 |
Hose (3.5x7.5x601) | 1 | $ 7.94 | L:601->30 | |
| 34 | 09355-35006-601 Hose (3.5x7.5x601)
SKU: 09355-35006-601 Weight: 1.000000 Brand: Price: $ 7.94 |
Hose (3.5x7.5x601) | 1 | $ 7.94 | L:601->165 | |
| 35 | 13583-93J00 Link Arm
SKU: 13583-93J00 Weight: 0.100000 Brand: Price: $ 32.54 |
Link Arm | 1 | $ 32.54 | ||
| 36 | 13583-93J00 Link Arm
SKU: 13583-93J00 Weight: 0.100000 Brand: Price: $ 32.54 |
Link Arm | 1 | $ 32.54 | ||
| 37 | 13555-93J00 Link Grommet (NLA)
SKU: 13555-93J00 Weight: 0.060000 Brand: Price: $ 3.27 |
Link Grommet (NLA) | 4 | $ 3.27 | ||
| 38 | 13537-93J00 Link Washer (NLA)
SKU: 13537-93J00 Weight: 0.060000 Brand: Price: $ 1.86 |
Link Washer (NLA) | 4 | $ 1.86 | ||
| 39 | 09204-01004 Cotter Pin
SKU: 09204-01004 Weight: 0.060000 Brand: Price: $ 1.41 |
Cotter Pin | 4 | $ 1.41 | ||
| 40 | 13553-93J00 Lever No 1
SKU: 13553-93J00 Weight: 0.100000 Brand: Price: $ 30.25 |
Lever No 1 | 1 | $ 30.25 | ||
| 41 | 13554-93J00 Lever No 2
SKU: 13554-93J00 Weight: 0.100000 Brand: Price: $ 7.90 |
Lever No 2 | 1 | $ 7.90 | ||
| 42 | 02112-35087 Screw (NLA)
SKU: 02112-35087 Weight: 0.100000 Brand: Price: $ 1.29 |
Screw (NLA) | 1 | $ 1.29 | ||
| 43 | 09160-05043 Washer (5.5x16x1.2)
SKU: 09160-05043 Weight: 0.100000 Brand: Price: $ 0.00 |
Washer (5.5x16x1.2) | 1 | $ 0.00 | ||
| 44 | 13521-93J00 Link Lever (NLA)
SKU: 13521-93J00 Weight: 0.100000 Brand: Price: $ 36.84 |
Link Lever (NLA) | 1 | $ 36.84 | ||
| 45 | 13514-93J00 Link Shaft Spacer
SKU: 13514-93J00 Weight: 0.100000 Brand: Price: $ 11.89 |
Link Shaft Spacer | 1 | $ 11.89 | ||
| 46 | 13599-93J00 Link Shaft Nut
SKU: 13599-93J00 Weight: 0.100000 Brand: Price: $ 7.90 |
Link Shaft Nut | 2 | $ 7.90 | ||
| 47 | 13538-93J00 Link Shaft Spring Washer
SKU: 13538-93J00 Weight: 0.100000 Brand: Price: $ 3.02 |
Link Shaft Spring Washer | 2 | $ 3.02 | ||
| 48 | 13541-93J00 Throttle Cam
SKU: 13541-93J00 Weight: 0.100000 Brand: Price: $ 38.56 |
Throttle Cam | 1 | $ 38.56 | ||
| 49 | 13542-93J00 Throttle Cam Spring
SKU: 13542-93J00 Weight: 0.060000 Brand: Price: $ 8.33 |
Throttle Cam Spring | 1 | $ 8.33 | ||
| 50 | 13543-93J00 Throttle Cam Spacer
SKU: 13543-93J00 Weight: 0.060000 Brand: Price: $ 18.09 |
Throttle Cam Spacer | 1 | $ 18.09 | ||
| 51 | 01500-06307 BOLT
SKU: 01500-06307 Weight: 0.060000 Brand: Price: $ 2.52 |
BOLT | 1 | $ 2.52 | ||
| 52 | 09160-06036 Washer (6.5x18x1.5)
SKU: 09160-06036 Weight: 0.060000 Brand: Price: $ 1.97 |
Washer (6.5x18x1.5) | 1 | $ 1.97 | ||
| 53 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 54 | 01421-08257 BOLT, STUD
SKU: 01421-08257 Weight: 0.100000 Brand: Price: $ 4.37 |
BOLT, STUD | 2 | $ 4.37 | 2004 to 2007 | |
| 55 | 01550-08307 BOLT
SKU: 01550-08307 Weight: 0.060000 Brand: Price: $ 3.59 |
BOLT | 7 | $ 3.59 | ||
| 56 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 2 | $ 2.27 | ||
| 57 | 13132-93J00 Collector Funnel
SKU: 13132-93J00 Weight: 0.100000 Brand: Price: $ 18.43 |
Collector Funnel | 6 | $ 18.43 | ||
| 58 | 13133-93J00 Collector Funnel Bracket
SKU: 13133-93J00 Weight: 0.100000 Brand: Price: $ 13.61 |
Collector Funnel Bracket | 1 | $ 13.61 | ||
| 61 | 09103-08182 Bolt (8x125)
SKU: 09103-08182 Weight: 0.250000 Brand: Price: $ 4.94 |
Bolt (8x125) | 2 | $ 4.94 | ||
| 62 | 09103-08134 Bolt (8x110)
SKU: 09103-08134 Weight: 0.060000 Brand: Price: $ 2.95 |
Bolt (8x110) | 4 | $ 2.95 | ||
| 63 | 09108-08267 Collector Stud Bolt (NLA)
SKU: 09108-08267 Weight: 0.100000 Brand: Price: $ 2.56 |
Collector Stud Bolt (NLA) | 2 | $ 2.56 | ||
| 64 | 09329-06002 Cushion (NLA)
SKU: 09329-06002 Weight: 0.100000 Brand: Price: $ 1.38 |
Cushion (NLA) | 6 | $ 1.38 | ||
| 66 | 01550-0820A BOLT
SKU: 01550-0820A Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 67 | 08316-1008A Nut
SKU: 08316-1008A Weight: 0.060000 Brand: Price: $ 2.45 |
Nut | 2 | $ 2.45 | ||
| 69 | 09408-00060 Clamp (NLA)
SKU: 09408-00060 Weight: 0.100000 Brand: Price: $ 1.54 |
Clamp (NLA) | 1 | $ 1.54 | DF225T: S/N 880644 Newer DF225Z: S/N 880164 Newer | |
| 70 | 61436-93J10 V6 Emblem Mark (NLA)
SKU: 61436-93J10 Weight: 0.060000 Brand: Price: $ 9.33 |
V6 Emblem Mark (NLA) | 1 | $ 9.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
