Suzuki DF 225 Parts Listings 2004 to S/N 22503F-11XXXX 2004 to S/N 22503Z-11XXXX

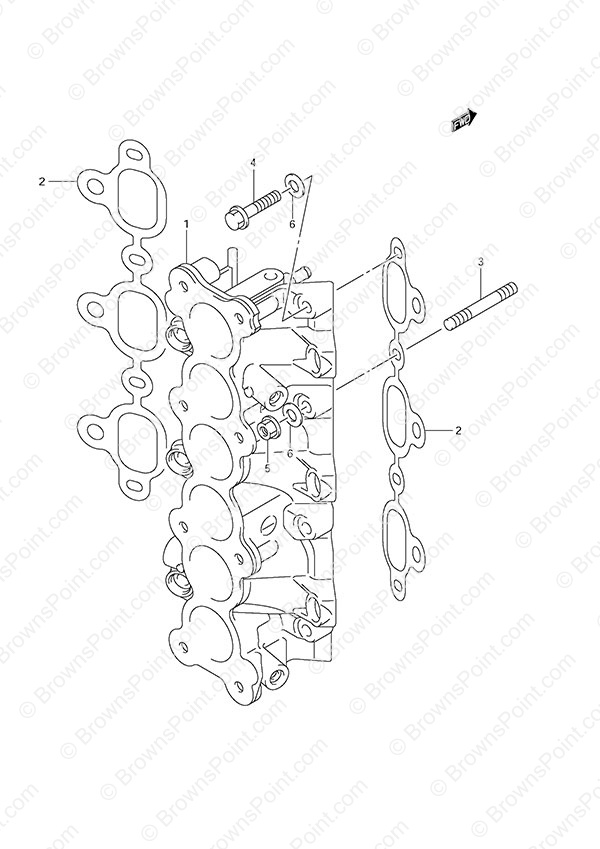

Fig. 10 - Intake Manifold

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 13110-93J00 Intake Manifold 1 $ 490.29
2 13119-93J00 Intake Manifold Gasket 2 $ 15.01
3-1 01421-08457 BOLT, STUD 4 $ 4.92
3-2 09108-08282 Stud Bolt 4 $ 9.42
2008 Newer
4-1 01550-08507 BOLT 4 $ 3.61
4-2 09103-08437 Bolt (8x65) 4 $ 8.90
2008 Newer
5-1 08316-10087 Nut 4 $ 2.27
5-2 09159-08136 Nut 4 $ 2.72
2008 Newer
6 09160-08016 Washer (8.5x20x2.0) 8 $ 1.93
2008 Newer

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
