Suzuki DF 175AP Parts Listings - 2023
S/N 17503P-340001 to 17503P-34XXXX

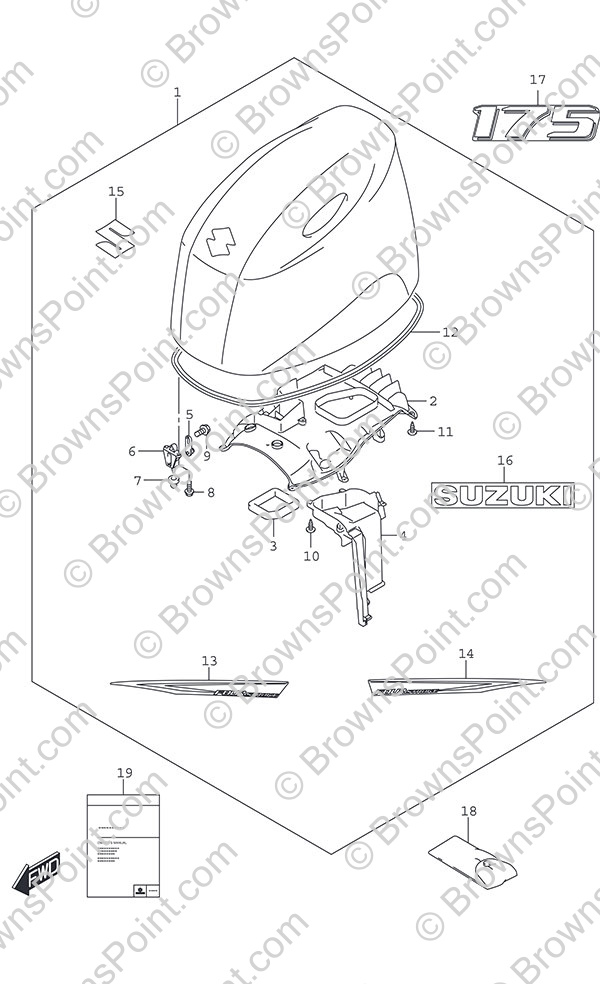

Fig. 420 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61404-96830-YAY Engine Cover Set
SKU: 61404-96830-YAY Weight: 40.000000 Brand: Price: $ 1,343.07 |
Engine Cover Set | 1 | $ 1,343.07 | Black | |
| 1-2 | 61404-96840-QTN COVER SET,ENG
SKU: 61404-96840-QTN Weight: 0.000000 Brand: Price: $ 1,343.07 |
COVER SET,ENG | 1 | $ 1,343.07 | White | |
| 2 | 61433-96L00 Air Intake Inner Cover
SKU: 61433-96L00 Weight: 1.000000 Brand: Price: $ 57.56 |
Air Intake Inner Cover | 1 | $ 57.56 | ||
| 3 | 61476-96J10 Air Vent Seal
SKU: 61476-96J10 Weight: 0.250000 Brand: Price: $ 10.22 |
Air Vent Seal | 1 | $ 10.22 | ||
| 5 | 61610-90J23 FASTENER COMP
SKU: 61610-90J23 Weight: 0.000000 Brand: Price: $ 12.04 |
FASTENER COMP | 3 | $ 12.04 | ||
| 4 | 61565-96L00 Air Intake Duct
SKU: 61565-96L00 Weight: 1.000000 Brand: Price: $ 39.45 |
Air Intake Duct | 1 | $ 39.45 | ||
| 6 | 61621-93J01 Fastener Bracket
SKU: 61621-93J01 Weight: 0.125000 Brand: Price: $ 18.75 |
Fastener Bracket | 3 | $ 18.75 | ||
| 8 | 01547-0616C BOLT,HARNESS B
SKU: 01547-0616C Weight: 0.060000 Brand: Price: $ 1.58 |
BOLT,HARNESS B | 6 | $ 1.58 | ||
| 7 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 3 | $ 4.06 | ||
| 9 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 3 | $ 1.73 | ||
| 10 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 5 | $ 1.70 | ||
| 11 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 11 | $ 1.70 | ||
| 12 | 61112-96L00 Engine Cover Seal
SKU: 61112-96L00 Weight: 1.000000 Brand: Price: $ 47.41 |
Engine Cover Seal | 1 | $ 47.41 | ||
| 13-1 | 61443-96L30 Starboard Engine Cover Stripe
SKU: 61443-96L30 Weight: 0.250000 Brand: Price: $ 26.48 |
Starboard Engine Cover Stripe | 1 | $ 26.48 | Black | |
| 13-2 | 61443-96L40 STRIPE,ENG CVR
SKU: 61443-96L40 Weight: 0.000000 Brand: Price: $ 26.48 |
STRIPE,ENG CVR | 1 | $ 26.48 | White | |
| 14-1 | 61453-96L30 Port Engine Cover Stripe
SKU: 61453-96L30 Weight: 0.250000 Brand: Price: $ 26.48 |
Port Engine Cover Stripe | 1 | $ 26.48 | Black | |
| 14-2 | 61453-96L40 STRIPE,ENG CVR
SKU: 61453-96L40 Weight: 0.000000 Brand: Price: $ 26.48 |
STRIPE,ENG CVR | 1 | $ 26.48 | White | |
| 15 | 77811-54GC0-0PG Chrome S Emblem
SKU: 77811-54GC0-0PG Weight: 0.250000 Brand: Price: $ 20.13 |
Chrome S Emblem | 1 | $ 20.13 | ||
| 16 | 61441-98L00 Suzuki Mark
SKU: 61441-98L00 Weight: 0.250000 Brand: Price: $ 109.21 |
Suzuki Mark | 2 | $ 109.21 | ||
| 17-1 | 61435-96LA0 MARK EMBLEM REA
SKU: 61435-96LA0 Weight: 0.000000 Brand: Price: $ 11.71 |
MARK EMBLEM REA | 1 | $ 11.71 | Black | |
| 17-2 | 61435-96LB0 Rear Emblem Mark (150)
SKU: 61435-96LB0 Weight: 0.060000 Brand: Price: $ 11.71 |
Rear Emblem Mark (150) | 1 | $ 11.71 | White | |
| 18 | 09800-81850 Tool Set
SKU: 09800-81850 Weight: 1.060000 Brand: Price: $ 55.30 |
Tool Set | 1 | $ 55.30 | ||
| 19 | 99011-96LG0-03B MANUAL,OWNER'S
SKU: 99011-96LG0-03B Weight: 0.000000 Brand: Price: $ 14.26 |
MANUAL,OWNER'S | 1 | $ 14.26 | ||
| 20 | 99011-96LD0-03B Owners Manual DF150AP/175AP/200AP - 2020
SKU: 99011-96LD0-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF150AP/175AP/200AP - 2020 | 1 | $ 20.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
