Suzuki DF 225 Parts Listings 2004 to S/N 22503F-11XXXX 2004 to S/N 22503Z-11XXXX

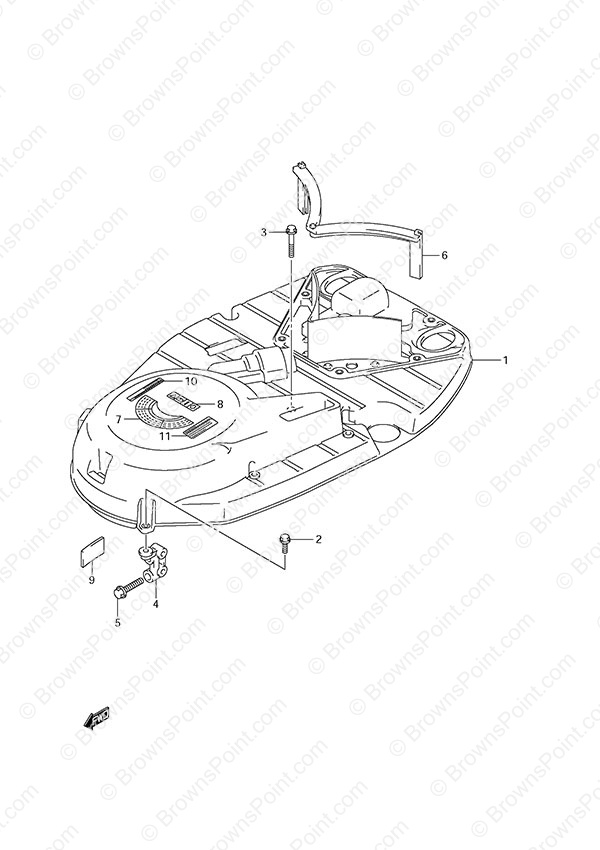

Fig. 4 - Ring Gear Cover

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 11510-93J04 COVER,RING GEAR 1 $ 125.97
2 01550-06207 BOLT 2 $ 2.33
3 01550-06407 BOLT 1 $ 2.74
4 11515-93J00 Ring Gear Cover Brace 1 $ 26.55
5 01550-08357 BOLT 2 $ 3.54
6 11516-93J00 Ring Gear Cover Flap 1 $ 13.24

Not Available

7 61472-93E33 LABEL,RECOIL,ST 1 $ 7.74
8 69711-93E11 Label (S.I.G.P) 1 $ 4.45
9 32851-93J00 Lead Wire Cushion 1 $ 3.13
2005
10 61493-93J00 Clearance Label 1 $ 6.68
2009 Newer
11 61494-96J11 LABEL,OIL & CLE 1 $ 7.70
2009 Newer

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
