Suzuki DF 150A Parts Listings - 2023
S/N 15003F-340001 to 15003F-34XXXX
S/N 15003Z-340001 to 15003Z-34XXXX

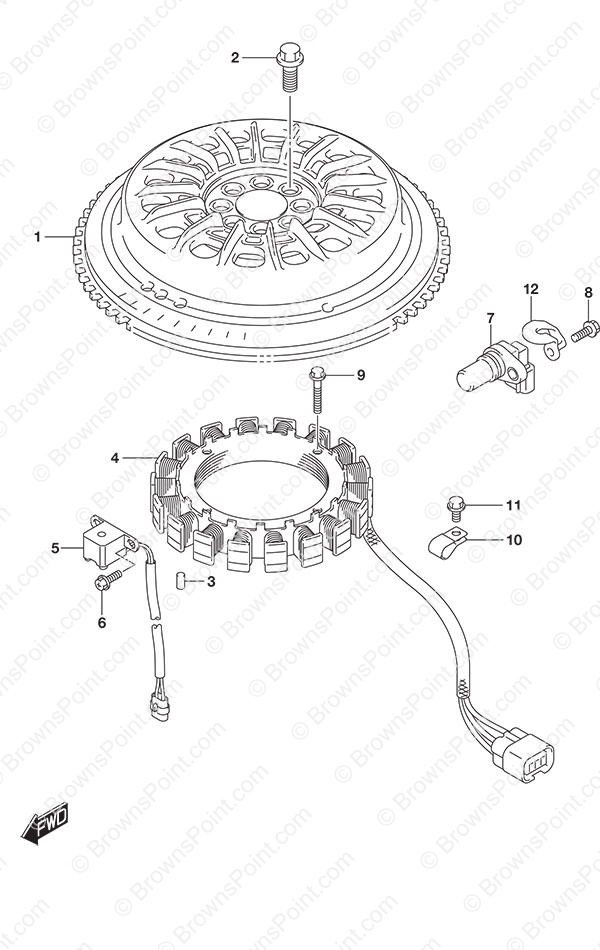

Fig. 303 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-96J20 Flywheel
SKU: 32102-96J20 Weight: 5.000000 Brand: Price: $ 912.57 |
Flywheel | 1 | $ 912.57 | ||
| 2 | 09103-12125 Flywheel Bolt (12x26)
SKU: 09103-12125 Weight: 0.125000 Brand: Price: $ 2.90 |
Flywheel Bolt (12x26) | 8 | $ 2.90 | ||
| 3 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 1 | $ 2.07 | ||
| 4 | 32120-96J00 Battery Charge Coil
SKU: 32120-96J00 Weight: 5.500000 Brand: Price: $ 631.28 |
Battery Charge Coil | 1 | $ 631.28 | ||
| 5 | 32160-88L01 CKP/Ignition Timimg Coil
SKU: 32160-88L01 Weight: 0.120000 Brand: Price: $ 96.82 |
CKP/Ignition Timimg Coil | 1 | $ 96.82 | ||
| 6 | 09106-05030 Bolt (5x10)
SKU: 09106-05030 Weight: 0.060000 Brand: Price: $ 2.62 |
Bolt (5x10) | 2 | $ 2.62 | ||
| 7 | 33220-64L10 Cam Position Sensor
SKU: 33220-64L10 Weight: 0.250000 Brand: Price: $ 109.52 |
Cam Position Sensor | 1 | $ 109.52 | ||
| 8 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 1 | $ 1.73 | ||
| 9 | 09103-06231 Bolt (6x35)
SKU: 09103-06231 Weight: 0.060000 Brand: Price: $ 2.81 |
Bolt (6x35) | 4 | $ 2.81 | ||
| 10 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 1 | $ 5.28 | ||
| 11 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 1 | $ 1.73 | ||
| 12 | 11185-96L00 Sensor Cover
SKU: 11185-96L00 Weight: 0.200000 Brand: Price: $ 10.18 |
Sensor Cover | 1 | $ 10.18 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
