Suzuki DF 150A Parts Listings - 2023
S/N 15003F-340001 to 15003F-34XXXX
S/N 15003Z-340001 to 15003Z-34XXXX

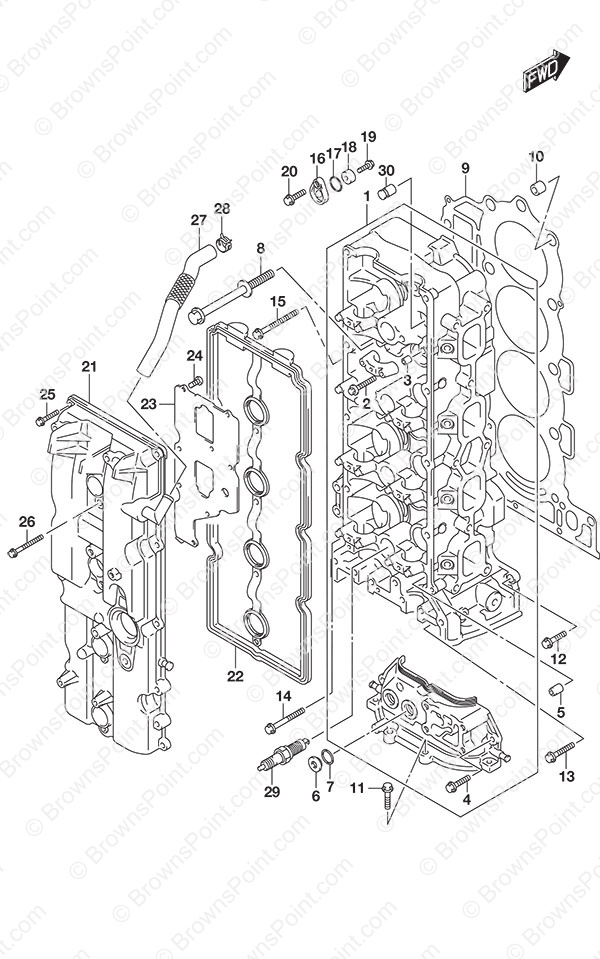

Fig. 111 - Cylinder Head
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11100-96L10 HEAD ASSY,CYLIN
SKU: 11100-96L10 Weight: 0.000000 Brand: Price: $ 1,952.02 |
HEAD ASSY,CYLIN | 1 | $ 1,952.02 | ||
| 2 | 09103-06266 Bolt (6x40)
SKU: 09103-06266 Weight: 0.250000 Brand: Price: $ 2.21 |
Bolt (6x40) | 20 | $ 2.21 | ||
| 3 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 18 | $ 1.78 | ||
| 4 | 01547-06207 BOLT 6 X 20
SKU: 01547-06207 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6 X 20 | 2 | $ 2.04 | ||
| 5 | 11112-96L00 Oil Venturi Plug
SKU: 11112-96L00 Weight: 0.060000 Brand: Price: $ 0.00 |
Oil Venturi Plug | 1 | $ 0.00 | ||
| 6 | 11116-93J01 Plug
SKU: 11116-93J01 Weight: 0.100000 Brand: Price: $ 3.65 |
Plug | 2 | $ 3.65 | ||
| 7 | 11216-98L10 Gasket
SKU: 11216-98L10 Weight: 0.060000 Brand: Price: $ 3.05 |
Gasket | 2 | $ 3.05 | ||
| 8 | 11119-96J00 Cylinder Head Bolt
SKU: 11119-96J00 Weight: 0.250000 Brand: Price: $ 8.34 |
Cylinder Head Bolt | 10 | $ 8.34 | ||
| 9 | 11141-96L00 Cylinder Head Gasket
SKU: 11141-96L00 Weight: 0.750000 Brand: Price: $ 141.39 |
Cylinder Head Gasket | 1 | $ 141.39 | ||
| 10 | 09206-15001 Pin
SKU: 09206-15001 Weight: 0.100000 Brand: Price: $ 4.11 |
Pin | 2 | $ 4.11 | ||
| 11 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 4 | $ 2.82 | ||
| 12 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 1 | $ 2.82 | ||
| 13 | 01550-0835A BOLT
SKU: 01550-0835A Weight: 0.060000 Brand: Price: $ 3.09 |
BOLT | 2 | $ 3.09 | ||
| 14 | 01550-08457 BOLT
SKU: 01550-08457 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT | 1 | $ 3.48 | ||
| 15 | 01550-08607 BOLT
SKU: 01550-08607 Weight: 0.060000 Brand: Price: $ 3.82 |
BOLT | 6 | $ 3.82 | ||
| 16 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 16.29 |
Protection Anode Cover | 3 | $ 16.29 | ||
| 17 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 3 | $ 2.38 | ||
| 18 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 3 | $ 7.36 | ||
| 19 | 09128-06094 BOLT,ANODE PROT
SKU: 09128-06094 Weight: 0.000000 Brand: Price: $ 0.82 |
BOLT,ANODE PROT | 3 | $ 0.82 | ||
| 20 | 01550-0820C BOLT
SKU: 01550-0820C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 3 | $ 1.68 | ||
| 21 | 11170-96J00 Cylinder Head Cover
SKU: 11170-96J00 Weight: 2.000000 Brand: Price: $ 386.75 |
Cylinder Head Cover | 1 | $ 386.75 | ||
| 22 | 11189-96J00 Cylinder Head Cover Gasket
SKU: 11189-96J00 Weight: 0.250000 Brand: Price: $ 32.56 |
Cylinder Head Cover Gasket | 1 | $ 32.56 | ||
| 23 | 11173-96J00 Breather Plate (NLA)
SKU: 11173-96J00 Weight: 1.000000 Brand: Price: $ 7.36 |
Breather Plate (NLA) | 1 | $ 7.36 | ||
| 24 | 02112-0612A SCREW
SKU: 02112-0612A Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW | 8 | $ 1.44 | ||
| 25 | 01547-0625C Bolt
SKU: 01547-0625C Weight: 0.060000 Brand: Price: $ 0.00 |
Bolt | 10 | $ 0.00 | ||
| 26 | 01547-0650C 01547-0650C
SKU: 01547-0650C Weight: Brand: Price: $ 0.00 |
01547-0650C | 4 | $ 0.00 | ||
| 27 | 11174-96J00 Breather Hose
SKU: 11174-96J00 Weight: 0.500000 Brand: Price: $ 14.26 |
Breather Hose | 1 | $ 14.26 | ||
| 28 | 09401-18410 Clip
SKU: 09401-18410 Weight: 0.060000 Brand: Price: $ 3.64 |
Clip | 1 | $ 3.64 | ||
| 29 | 09482-00649 NGK LKR6E Spark Plug
SKU: 09482-00649 Weight: 0.187500 Brand: Price: $ 6.23 |
NGK LKR6E Spark Plug | 4 | $ 6.23 | ||
| 30 | 11115-93J10-001 Valve Guide (OS:0.5)
SKU: 11115-93J10-001 Weight: 0.060000 Brand: Price: $ 39.45 |
Valve Guide (OS:0.5) | 16 | $ 39.45 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
