Suzuki DF 140BG Parts Listings - 2022
S/N 14004F-240001 to 14004F-24XXXX
S/N DF 140BGZG 14004Z-240001 to 14004Z-24XXXX

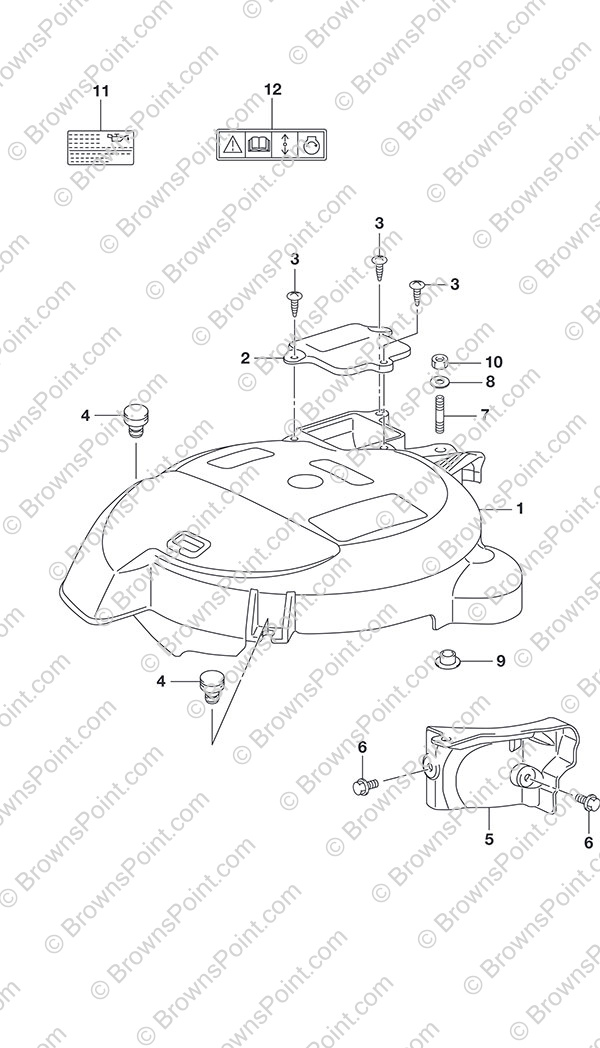

Fig. 136 - Ring Gear Cover

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 11511-99L00 COVER,RING GEAR 1 $ 77.02
2 11514-99L00 PLATE,RING GEAR 1 $ 38.75
3 03542-06209 SCREW 3 $ 2.24
4 11512-99L00 CUSHION RING,GR 2 $ 2.65

Not Available

5 11515-99L00 BRACE,RING GEAR 1 $ 40.88
6 09103-06240 09103-06240 2 $ 0.00
7 09108-06060 Stud Bolt (6x18) 1 $ 1.74
8 09160-06084 Washer (6.5x18x1.6) 1 $ 1.78
9 09169-06097 WASHER,RING GEA 1 $ 3.92
10 08316-10067 Nut 1 $ 2.25
11 61494-99L00 LABEL,OIL & CLE 1 $ 4.44
12 69711-93E11 Label (S.I.G.P) 1 $ 4.45

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
