Suzuki DF 300A Parts Listings - 2012
S/N 30002P-210001 to 30002P-21XXXX

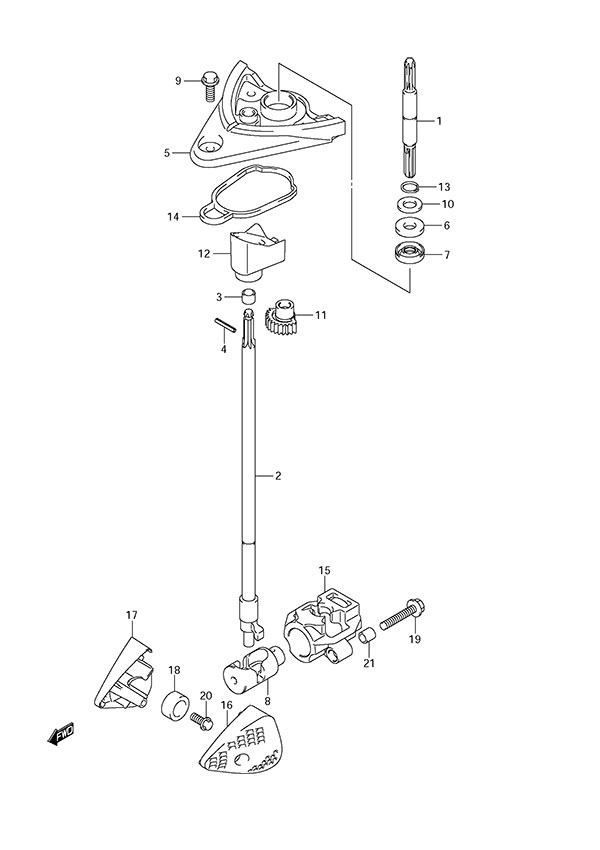

Fig. 17 - Clutch Rod
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 25112-93L00 Shift Drive Rod (X)
SKU: 25112-93L00 Weight: 0.500000 Brand: Price: $ 68.04 |
Shift Drive Rod (X) | 1 | $ 68.04 | ||
| 1-2 | 25112-93L10 Shift Drive Rod (XX)
SKU: 25112-93L10 Weight: 0.500000 Brand: Price: $ 69.64 |
Shift Drive Rod (XX) | 1 | $ 69.64 | W/Transom(XX) | |
| 2 | 25130-93L01 Shifter Yoke
SKU: 25130-93L01 Weight: 0.500000 Brand: Price: $ 152.89 |
Shifter Yoke | 1 | $ 152.89 | ||
| 3 | 25232-90J00 Gear Case Magnet
SKU: 25232-90J00 Weight: 0.100000 Brand: Price: $ 6.49 |
Gear Case Magnet | 2 | $ 6.49 | ||
| 4 | 09205-03004 Spring Pin (3x20)
SKU: 09205-03004 Weight: 0.060000 Brand: Price: $ 1.35 |
Spring Pin (3x20) | 1 | $ 1.35 | ||
| 5 | 25141-93L01-0EP Shift Rod Guide Housing
SKU: 25141-93L01-0EP Weight: 0.500000 Brand: Price: $ 82.16 |
Shift Rod Guide Housing | 1 | $ 82.16 | ||
| 6 | 25222-90J01 Shift Guide Cover Seal
SKU: 25222-90J01 Weight: 0.060000 Brand: Price: $ 1.57 |
Shift Guide Cover Seal | 1 | $ 1.57 | ||
| 7 | 09283-10011 Oil Seal (10x22x8)
SKU: 09283-10011 Weight: 0.060000 Brand: Price: $ 5.87 |
Oil Seal (10x22x8) | 1 | $ 5.87 | ||
| 8 | 25321-93L00 Horizontal Shift Slider
SKU: 25321-93L00 Weight: 0.250000 Brand: Price: $ 100.79 |
Horizontal Shift Slider | 1 | $ 100.79 | ||
| 9 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 3 | $ 2.55 | ||
| 10 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 1 | $ 1.63 | ||
| 11 | 25113-93L00 Shift Rod Gear
SKU: 25113-93L00 Weight: 0.500000 Brand: Price: $ 31.90 |
Shift Rod Gear | 2 | $ 31.90 | ||
| 12 | 25215-93L00 Magnet Housing
SKU: 25215-93L00 Weight: 0.250000 Brand: Price: $ 13.38 |
Magnet Housing | 1 | $ 13.38 | ||
| 13 | 09383-07003 E Ring
SKU: 09383-07003 Weight: 0.100000 Brand: Price: $ 1.76 |
E Ring | 3 | $ 1.76 | ||
| 14 | 55122-93L00 Shift Rod Guide Housing Seal
SKU: 55122-93L00 Weight: 0.250000 Brand: Price: $ 8.60 |
Shift Rod Guide Housing Seal | 1 | $ 8.60 | ||
| 15 | 56141-93L00 Shift Slider Housing
SKU: 56141-93L00 Weight: 0.250000 Brand: Price: $ 34.45 |
Shift Slider Housing | 1 | $ 34.45 | ||
| 16 | 17637-93L00 Port Front Side Water Filter
SKU: 17637-93L00 Weight: 0.060000 Brand: Price: $ 5.92 |
Port Front Side Water Filter | 1 | $ 5.92 | ||
| 17 | 17638-93L00 Stdb Front Side Water Filter
SKU: 17638-93L00 Weight: 0.060000 Brand: Price: $ 5.92 |
Stdb Front Side Water Filter | 1 | $ 5.92 | ||
| 18 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 19 | 07120-06357 Bolt (NLA)
SKU: 07120-06357 Weight: 0.100000 Brand: Price: $ 2.20 |
Bolt (NLA) | 2 | $ 2.20 | ||
| 20 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | ||
| 21 | 09206-09012 Knock Pin
SKU: 09206-09012 Weight: 0.060000 Brand: Price: $ 3.72 |
Knock Pin | 2 | $ 3.72 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
