Suzuki DF 140BT Parts Listings - 2022
S/N 14005F-240001 to 14005F-24XXXX
S/N DF 140BTZ 14005Z-240001 to 14005Z-24XXXX

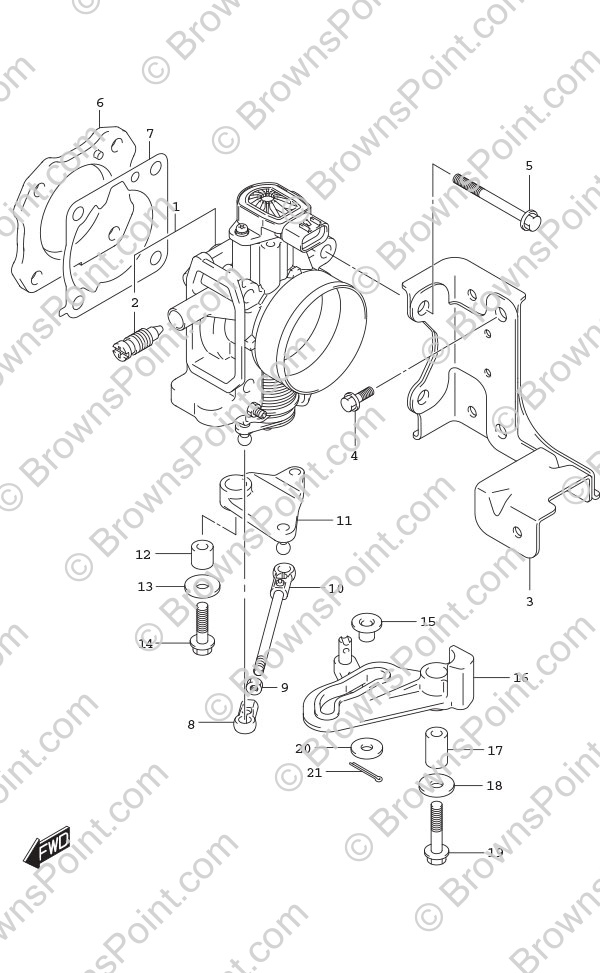

Fig. 163 - Throttle Body
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13300-99L10 BODY ASSY,THROT
SKU: 13300-99L10 Weight: 0.000000 Brand: Price: $ 373.10 |
BODY ASSY,THROT | 1 | $ 373.10 | ||
| 2 | 13353-99E00 Adjuster Assembly
SKU: 13353-99E00 Weight: 0.060000 Brand: Price: $ 12.74 |
Adjuster Assembly | 1 | $ 12.74 | ||
| 3 | 13315-99L01 BRACKET COMP,TH
SKU: 13315-99L01 Weight: 0.000000 Brand: Price: $ 26.23 |
BRACKET COMP,TH | 1 | $ 26.23 | ||
| 4 | 01550-0820C BOLT
SKU: 01550-0820C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 2 | $ 1.68 | ||
| 5 | 01550-0860C Bolt
SKU: 01550-0860C Weight: 0.060000 Brand: Price: $ 2.02 |
Bolt | 4 | $ 2.02 | ||
| 6 | 13378-99L00 PLATE,THROTTLE
SKU: 13378-99L00 Weight: 0.000000 Brand: Price: $ 21.84 |
PLATE,THROTTLE | 1 | $ 21.84 | ||
| 7 | 13421-90J02 GASKET,THROTTLE
SKU: 13421-90J02 Weight: 0.000000 Brand: Price: $ 2.72 |
GASKET,THROTTLE | 1 | $ 2.72 | ||
| 8 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 1 | $ 4.52 | ||
| 9 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 10 | 13510-99L00 ROD COMP,THROTT
SKU: 13510-99L00 Weight: 0.000000 Brand: Price: $ 10.88 |
ROD COMP,THROTT | 1 | $ 10.88 | ||
| 11 | 19140-99L00 LEVER COMP,THRO
SKU: 19140-99L00 Weight: 0.000000 Brand: Price: $ 20.76 |
LEVER COMP,THRO | 1 | $ 20.76 | ||
| 12 | 09180-06230 Spacer (6.2x12.6x12.5)
SKU: 09180-06230 Weight: 0.060000 Brand: Price: $ 6.41 |
Spacer (6.2x12.6x12.5) | 1 | $ 6.41 | ||
| 13 | 09160-06046 Washer (6.5x20x1.5)
SKU: 09160-06046 Weight: 0.060000 Brand: Price: $ 1.99 |
Washer (6.5x20x1.5) | 1 | $ 1.99 | ||
| 14 | 01550-0625C BOLT
SKU: 01550-0625C Weight: 0.060000 Brand: Price: $ 1.46 |
BOLT | 1 | $ 1.46 | ||
| 15 | 19114-99L10 BUSH,THROTTLE L
SKU: 19114-99L10 Weight: 0.000000 Brand: Price: $ 6.31 |
BUSH,THROTTLE L | 1 | $ 6.31 | ||
| 16 | 19120-99L00 LEVER COMP,THRO
SKU: 19120-99L00 Weight: 0.000000 Brand: Price: $ 48.13 |
LEVER COMP,THRO | 1 | $ 48.13 | ||
| 17 | 09180-06186 Spacer (6.2x12.6x21)
SKU: 09180-06186 Weight: 0.060000 Brand: Price: $ 7.02 |
Spacer (6.2x12.6x21) | 1 | $ 7.02 | ||
| 18 | 09160-06046 Washer (6.5x20x1.5)
SKU: 09160-06046 Weight: 0.060000 Brand: Price: $ 1.99 |
Washer (6.5x20x1.5) | 1 | $ 1.99 | ||
| 19 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 1 | $ 2.82 | ||
| 21 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 1 | $ 1.40 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
