Suzuki DF 6A Parts Listings - 2024
S/N 00403F-440001 to 00603F-44XXXX

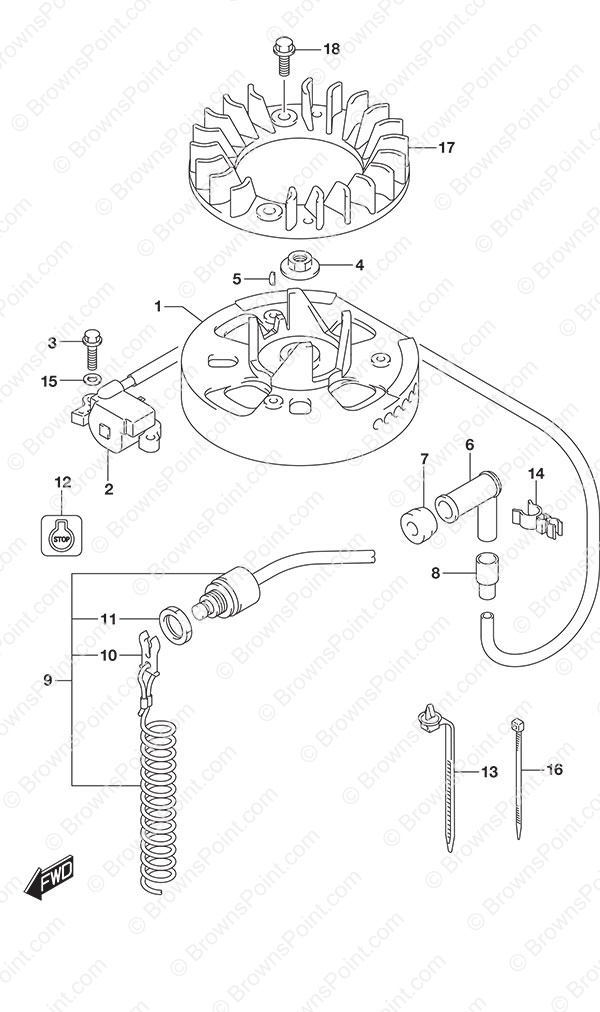

Fig. 303 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-97L20 FLYWHEEL COMP,M
SKU: 32102-97L20 Weight: 0.000000 Brand: Price: $ 181.00 |
FLYWHEEL COMP,M | 1 | $ 181.00 | ||
| 2 | 33410-97L30 Magneto Igniter Assembly
SKU: 33410-97L30 Weight: 0.500000 Brand: Price: $ 81.82 |
Magneto Igniter Assembly | 1 | $ 81.82 | ||
| 3 | 01547-0620C Bolt
SKU: 01547-0620C Weight: 0.125000 Brand: Price: $ 2.00 |
Bolt | 2 | $ 2.00 | ||
| 4 | 08316-1012A Nut
SKU: 08316-1012A Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 5 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 6 | 33510-07H00 Spark Plug Cap
SKU: 33510-07H00 Weight: 0.250000 Brand: Price: $ 22.23 |
Spark Plug Cap | 1 | $ 22.23 | ||
| 7 | 33541-16H00 Spark Plug Seal
SKU: 33541-16H00 Weight: 0.200000 Brand: Price: $ 2.88 |
Spark Plug Seal | 1 | $ 2.88 | ||
| 8 | 33542-07H00 High Tension Cord Seal
SKU: 33542-07H00 Weight: 0.250000 Brand: Price: $ 7.43 |
High Tension Cord Seal | 1 | $ 7.43 | ||
| 9 | 37830-97L00 Emergency Switch Assembly
SKU: 37830-97L00 Weight: 0.250000 Brand: Price: $ 54.11 |
Emergency Switch Assembly | 1 | $ 54.11 | ||
| 10 | 37823-97J00 Stop Switch Lanyard
SKU: 37823-97J00 Weight: 0.080000 Brand: Price: $ 28.07 |
Stop Switch Lanyard | 1 | $ 28.07 | ||
| 11 | 37826-97J01 Nut
SKU: 37826-97J01 Weight: 0.060000 Brand: Price: $ 1.97 |
Nut | 1 | $ 1.97 | ||
| 12-1 | 37835-91J00-YAY Stop Label
SKU: 37835-91J00-YAY Weight: 0.060000 Brand: Price: $ 1.20 |
Stop Label | 1 | $ 1.20 | Black | |
| 12-2 | 37835-91J00-QTN Stop Label
SKU: 37835-91J00-QTN Weight: 0.060000 Brand: Price: $ 1.09 |
Stop Label | 1 | $ 1.09 | White | |
| 13 | 36991-94L00 Clamp
SKU: 36991-94L00 Weight: 0.060000 Brand: Price: $ 1.78 |
Clamp | 1 | $ 1.78 | ||
| 14 | 09408-00159 Clamp (NLA)
SKU: 09408-00159 Weight: 0.250000 Brand: Price: $ 2.31 |
Clamp (NLA) | 1 | $ 2.31 | ||
| 15 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 1 | $ 1.85 | ||
| 16 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 17 | 17110-97L00 Cooling Fan
SKU: 17110-97L00 Weight: 1.000000 Brand: Price: $ 13.05 |
Cooling Fan | 1 | $ 13.05 | ||
| 18 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 3 | $ 1.73 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
