Suzuki DF 2.5 Parts Listings - 2024
S/N 00252F-440001 to 00252F-44XXXX

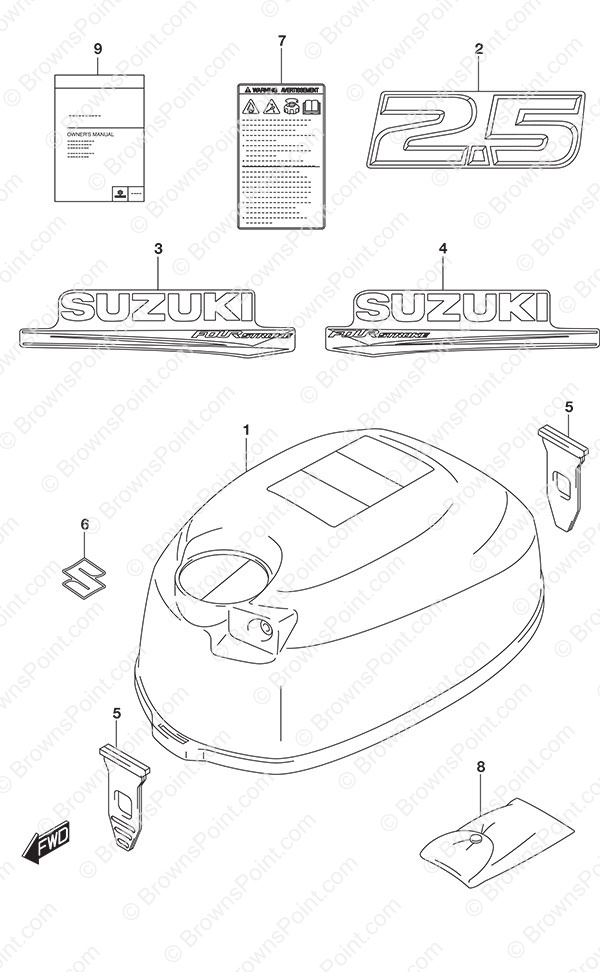

Fig. 420 - Engine Cover (021)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61401-97830-YR9 COVER SET,ENGIN
SKU: 61401-97830-YR9 Weight: 0.000000 Brand: Price: $ 73.89 |
COVER SET,ENGIN | 1 | $ 73.89 | ||
| 2 | 61443-97J40 Engine Cover Stripe - Starboard
SKU: 61443-97J40 Weight: 0.125000 Brand: Price: $ 5.62 |
Engine Cover Stripe - Starboard | 1 | $ 5.62 | ||
| 3 | 61453-97J40 Engine Cover Stripe - Port
SKU: 61453-97J40 Weight: 0.125000 Brand: Price: $ 5.80 |
Engine Cover Stripe - Port | 1 | $ 5.80 | ||
| 4 | 68111-99J00 S Emblem
SKU: 68111-99J00 Weight: 0.100000 Brand: Price: $ 5.37 |
S Emblem | 1 | $ 5.37 | ||
| 5 | 61435-97J70 Rear Emblem Mark (2.5)
SKU: 61435-97J70 Weight: 0.060000 Brand: Price: $ 3.35 |
Rear Emblem Mark (2.5) | 1 | $ 3.35 | ||
| 6 | 61611-97J01 Engine Cover Fastener
SKU: 61611-97J01 Weight: 0.060000 Brand: Price: $ 2.36 |
Engine Cover Fastener | 6 | $ 2.36 | ||
| 7 | 61458-97J70 Engine Cover Label
SKU: 61458-97J70 Weight: 0.125000 Brand: Price: $ 3.21 |
Engine Cover Label | 1 | $ 3.21 | ||
| 8 | 09800-01017 Tool Set
SKU: 09800-01017 Weight: 1.000000 Brand: Price: $ 28.28 |
Tool Set | 1 | $ 28.28 | ||
| 9 | 99011-97JA0-03B MANUAL,OWNER'S
SKU: 99011-97JA0-03B Weight: 0.000000 Brand: Price: $ 12.68 |
MANUAL,OWNER'S | 1 | $ 12.68 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
