Suzuki DF 2.5 Parts Listings - 2024
S/N 00252F-440001 to 00252F-44XXXX

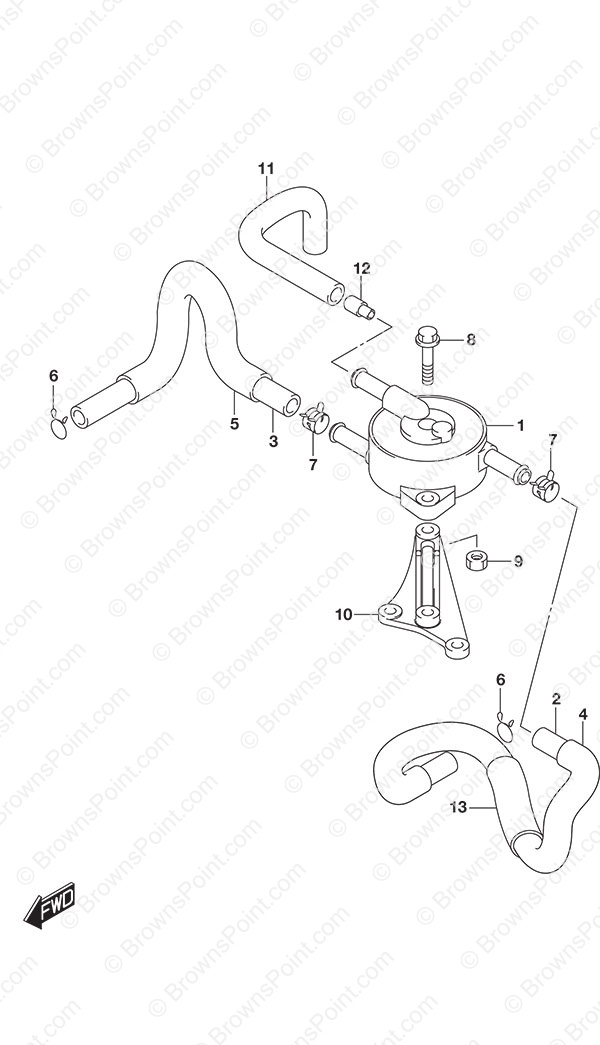

Fig. 146 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-97J00 Fuel Pump Assembly
SKU: 15100-97J00 Weight: 0.500000 Brand: Price: $ 86.15 |
Fuel Pump Assembly | 1 | $ 86.15 | ||
| 2 | 15192-97JL0 Fuel Hose (Pump to Carb)
SKU: 15192-97JL0 Weight: 0.250000 Brand: Price: $ 26.20 |
Fuel Hose (Pump to Carb) | 1 | $ 26.20 | ||
| 3 | 15191-97JM0 Fuel Hose (Cock to Pump) (NLA)
SKU: 15191-97JM0 Weight: 0.250000 Brand: Price: $ 13.80 |
Fuel Hose (Cock to Pump) (NLA) | 1 | $ 13.80 | ||
| 4 | 18498-94J32 Hose Protector (12x15x390)
SKU: 18498-94J32 Weight: 0.120000 Brand: Price: $ 6.62 |
Hose Protector (12x15x390) | 1 | $ 6.62 | ||
| 5 | 18498-97J01 Hose Protector (12x15x260)
SKU: 18498-97J01 Weight: 0.120000 Brand: Price: $ 5.50 |
Hose Protector (12x15x260) | 1 | $ 5.50 | ||
| 6 | 59412-91J00 Fuel Hose Clip
SKU: 59412-91J00 Weight: 0.060000 Brand: Price: $ 2.34 |
Fuel Hose Clip | 2 | $ 2.34 | ||
| 7 | 09401-10412 Clip
SKU: 09401-10412 Weight: 0.060000 Brand: Price: $ 2.72 |
Clip | 2 | $ 2.72 | ||
| 8 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 9 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 2 | $ 1.85 | ||
| 10 | 15115-97JL0 Fuel Pump Bracket
SKU: 15115-97JL0 Weight: 0.100000 Brand: Price: $ 18.18 |
Fuel Pump Bracket | 1 | $ 18.18 | ||
| 11 | 09355-50002-600 Hose (5x10x600)
SKU: 09355-50002-600 Weight: 0.200000 Brand: Price: $ 8.59 |
Hose (5x10x600) | 1 | $ 8.59 | ||
| 12 | 09493-38001 Air Jet# 190 (NLA)
SKU: 09493-38001 Weight: 0.060000 Brand: Price: $ 11.55 |
Air Jet# 190 (NLA) | 1 | $ 11.55 | ||
| 13 | 15821-97J00 Hose Protector (16x20.5x80) (NLA)
SKU: 15821-97J00 Weight: 0.100000 Brand: Price: $ 5.01 |
Hose Protector (16x20.5x80) (NLA) | 1 | $ 5.01 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
