Suzuki DF 75A Parts Listings - 2023
S/N 07501F-340001 to 07501F-34XXXX

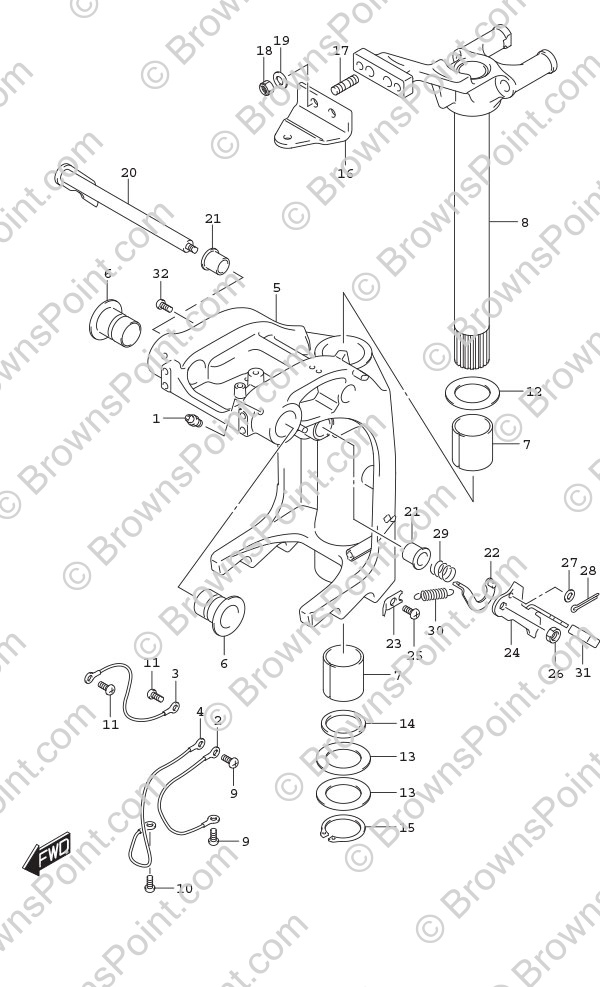

Fig. 336 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 5 | $ 3.36 | ||
| 2 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Swivel to Mount Bracket | |
| 3 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Clamp to Swivel | |
| 4 | 36895-87D10 Wire Lead (L:310)
SKU: 36895-87D10 Weight: 0.060000 Brand: Price: $ 11.80 |
Wire Lead (L:310) | 1 | $ 11.80 | Swivel to Housing | |
| 5-1 | 43111-87L30-YAY BRACKET,SWIVEL(
SKU: 43111-87L30-YAY Weight: 0.000000 Brand: Price: $ 793.22 |
BRACKET,SWIVEL( | 1 | $ 793.22 | Black | |
| 5-2 | 43111-87L30-QTN BRACKET,SWIVEL(
SKU: 43111-87L30-QTN Weight: 0.000000 Brand: Price: $ 793.22 |
BRACKET,SWIVEL( | 1 | $ 793.22 | White | |
| 6 | 43211-87L00 BUSH,SWIVEL BRA
SKU: 43211-87L00 Weight: 0.000000 Brand: Price: $ 5.84 |
BUSH,SWIVEL BRA | 2 | $ 5.84 | ||
| 7 | 43711-97E11 Steering Bushing
SKU: 43711-97E11 Weight: 0.125000 Brand: Price: $ 9.24 |
Steering Bushing | 2 | $ 9.24 | ||
| 8-1 | 43750-87L30-YAY BRACKET COMP,ST
SKU: 43750-87L30-YAY Weight: 0.000000 Brand: Price: $ 487.39 |
BRACKET COMP,ST | 1 | $ 487.39 | Black | |
| 8-2 | 43750-87L30-QTN BRACKET COMP,ST
SKU: 43750-87L30-QTN Weight: 0.000000 Brand: Price: $ 487.39 |
BRACKET COMP,ST | 1 | $ 487.39 | White | |
| 9 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 2 | $ 1.96 | ||
| 10 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 11 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 2 | $ 1.96 | ||
| 12 | 09160-39001 Washer (39.5x64x1.0)
SKU: 09160-39001 Weight: 0.060000 Brand: Price: $ 3.56 |
Washer (39.5x64x1.0) | 2 | $ 3.56 | ||
| 13 | 09181-39001 Shim (39.5x64x0.3)
SKU: 09181-39001 Weight: 0.060000 Brand: Price: $ 3.83 |
Shim (39.5x64x0.3) | 4 | $ 3.83 | ||
| 14 | 09181-39001 Shim (39.5x64x0.3)
SKU: 09181-39001 Weight: 0.060000 Brand: Price: $ 3.83 |
Shim (39.5x64x0.3) | 4 | $ 3.83 | ||
| 15 | 09380-38003 Circlip
SKU: 09380-38003 Weight: 0.060000 Brand: Price: $ 5.97 |
Circlip | 1 | $ 5.97 | ||
| 16 | 43755-87L20 ATTACHMENT,STEE
SKU: 43755-87L20 Weight: 0.000000 Brand: Price: $ 44.01 |
ATTACHMENT,STEE | 1 | $ 44.01 | ||
| 17 | 09108-10156 Stud Bolt
SKU: 09108-10156 Weight: 0.200000 Brand: Price: $ 8.22 |
Stud Bolt | 2 | $ 8.22 | ||
| 18 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 2 | $ 2.59 | ||
| 19 | 09160-10165 WASHER,ATTACHME
SKU: 09160-10165 Weight: 0.000000 Brand: Price: $ 4.00 |
WASHER,ATTACHME | 2 | $ 4.00 | ||
| 20 | 41220-87L00 LEVER COMP,TILT
SKU: 41220-87L00 Weight: 0.000000 Brand: Price: $ 57.85 |
LEVER COMP,TILT | 1 | $ 57.85 | ||
| 21 | 41224-95E01 Tilt Stopper Rod Bushing
SKU: 41224-95E01 Weight: 0.060000 Brand: Price: $ 4.62 |
Tilt Stopper Rod Bushing | 2 | $ 4.62 | ||
| 22 | 41230-95E00 Tilt Lock Lever Link
SKU: 41230-95E00 Weight: 0.125000 Brand: Price: $ 23.62 |
Tilt Lock Lever Link | 1 | $ 23.62 | ||
| 23 | 41233-95E10 Tilt Lock Spring Bracket
SKU: 41233-95E10 Weight: 0.060000 Brand: Price: $ 10.26 |
Tilt Lock Spring Bracket | 1 | $ 10.26 | ||
| 24 | 41221-95E40 Port Tilt Lock Lever
SKU: 41221-95E40 Weight: 0.250000 Brand: Price: $ 36.22 |
Port Tilt Lock Lever | 1 | $ 36.22 | ||
| 25 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 26 | 09140-10032 Nut
SKU: 09140-10032 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut | 1 | $ 2.04 | ||
| 27 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 28 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 1 | $ 1.40 | ||
| 29 | 09440-19028 Spring
SKU: 09440-19028 Weight: 0.060000 Brand: Price: $ 3.46 |
Spring | 1 | $ 3.46 | ||
| 30 | 41228-90J00 Tilt Lock Spring
SKU: 41228-90J00 Weight: 0.060000 Brand: Price: $ 8.11 |
Tilt Lock Spring | 1 | $ 8.11 | ||
| 31 | 41225-94401 RUBBER,TILT LOC
SKU: 41225-94401 Weight: 0.000000 Brand: Price: $ 1.95 |
RUBBER,TILT LOC | 1 | $ 1.95 | ||
| 32 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
