Suzuki DF 300 Parts Listings 2007 to S/N 30002F-11XXXX 2007 to S/N 30002Z-11XXXX

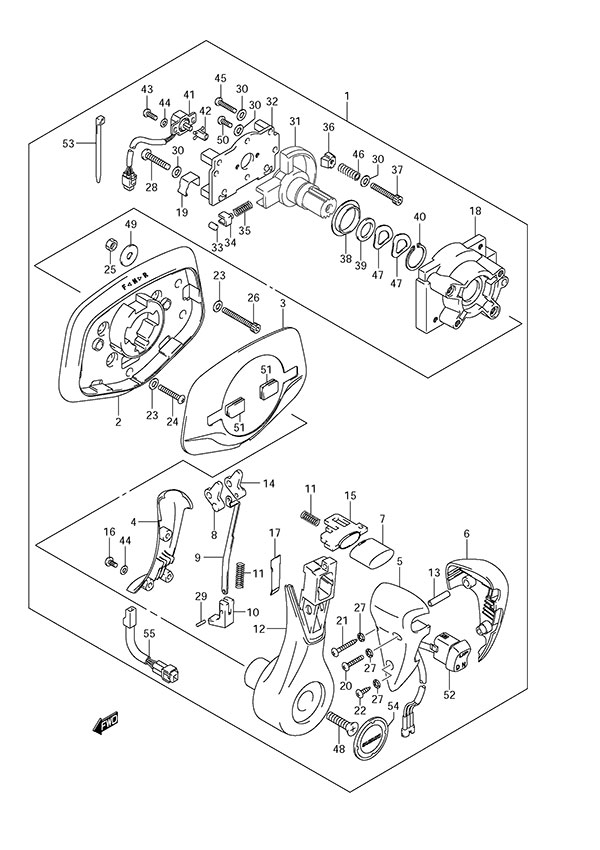

Fig. 45 - Opt: Flush Mount Remocon
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67200-98J24 Flush Mount Precision Control
SKU: 67200-98J24 Weight: 5.000000 Brand: Price: $ 1,289.05 |
Flush Mount Precision Control | 1 | $ 1,289.05 | ||
| 2 | 67271-98J20 Bottom Base Cover (NLA)
SKU: 67271-98J20 Weight: 0.250000 Brand: Price: $ 54.04 |
Bottom Base Cover (NLA) | 1 | $ 54.04 | ||
| 3 | 67264-98J00 Top Base Cover (NLA)
SKU: 67264-98J00 Weight: 0.100000 Brand: Price: $ 126.58 |
Top Base Cover (NLA) | 1 | $ 126.58 | ||
| 4 | 67263-98J20 Lever Cover (NLA)
SKU: 67263-98J20 Weight: 0.100000 Brand: Price: $ 126.58 |
Lever Cover (NLA) | 1 | $ 126.58 | ||
| 5 | 67261-98J20 Grip A (NLA)
SKU: 67261-98J20 Weight: 0.100000 Brand: Price: $ 18.87 |
Grip A (NLA) | 1 | $ 18.87 | ||
| 6 | 67261-98J30 Grip B (NLA)
SKU: 67261-98J30 Weight: 0.100000 Brand: Price: $ 18.87 |
Grip B (NLA) | 1 | $ 18.87 | ||
| 7 | 67265-98J00 Neutral Lock Button (NLA)
SKU: 67265-98J00 Weight: 0.100000 Brand: Price: $ 78.69 |
Neutral Lock Button (NLA) | 1 | $ 78.69 | ||
| 8 | 67255-98J00 Neutral Lock Link No 1 (NLA)
SKU: 67255-98J00 Weight: 0.200000 Brand: Price: $ 11.06 |
Neutral Lock Link No 1 (NLA) | 1 | $ 11.06 | ||
| 9 | 67258-98J00 Joint Plate (NLA)
SKU: 67258-98J00 Weight: 0.100000 Brand: Price: $ 12.10 |
Joint Plate (NLA) | 1 | $ 12.10 | ||
| 10 | 67256-98J00 Neutral Lock Block (NLA)
SKU: 67256-98J00 Weight: 0.100000 Brand: Price: $ 353.67 |
Neutral Lock Block (NLA) | 1 | $ 353.67 | ||
| 11 | 67259-98J00 Spring (NLA)
SKU: 67259-98J00 Weight: 0.100000 Brand: Price: $ 7.45 |
Spring (NLA) | 3 | $ 7.45 | ||
| 12 | 67251-98J20 Handle Lever (NLA)
SKU: 67251-98J20 Weight: 0.100000 Brand: Price: $ 724.80 |
Handle Lever (NLA) | 1 | $ 724.80 | ||
| 13 | 67294-98J00 Spacer (NLA)
SKU: 67294-98J00 Weight: 0.100000 Brand: Price: $ 32.51 |
Spacer (NLA) | 1 | $ 32.51 | ||
| 14 | 67254-98J00 Neutral Lock Link No 2 (NLA)
SKU: 67254-98J00 Weight: 0.200000 Brand: Price: $ 11.06 |
Neutral Lock Link No 2 (NLA) | 1 | $ 11.06 | ||
| 15 | 67233-98J00 Neutral Button Slider (NLA)
SKU: 67233-98J00 Weight: 0.100000 Brand: Price: $ 14.72 |
Neutral Button Slider (NLA) | 1 | $ 14.72 | ||
| 16 | 67296-98JA0 Screw (4x10) (NLA)
SKU: 67296-98JA0 Weight: 0.060000 Brand: Price: $ 4.47 |
Screw (4x10) (NLA) | 3 | $ 4.47 | ||
| 17 | 67234-98J00 Lever Plate (NLA)
SKU: 67234-98J00 Weight: 0.100000 Brand: Price: $ 9.98 |
Lever Plate (NLA) | 1 | $ 9.98 | ||
| 18 | 67211-98J20 Housing (L) (NLA)
SKU: 67211-98J20 Weight: 0.200000 Brand: Price: $ 110.47 |
Housing (L) (NLA) | 1 | $ 110.47 | ||
| 19 | 67269-98J20 Lead Clamp (NLA)
SKU: 67269-98J20 Weight: 0.100000 Brand: Price: $ 259.08 |
Lead Clamp (NLA) | 1 | $ 259.08 | ||
| 20 | 67296-98JB0 Screw (4x30) (NLA)
SKU: 67296-98JB0 Weight: 0.100000 Brand: Price: $ 5.69 |
Screw (4x30) (NLA) | 1 | $ 5.69 | ||
| 21 | 67227-98J20 Screw (4x35) (NLA)
SKU: 67227-98J20 Weight: 0.100000 Brand: Price: $ 5.29 |
Screw (4x35) (NLA) | 1 | $ 5.29 | ||
| 22 | 67227-98J30 Screw (4x20) (NLA)
SKU: 67227-98J30 Weight: 0.100000 Brand: Price: $ 4.61 |
Screw (4x20) (NLA) | 1 | $ 4.61 | ||
| 23 | 67288-98J50 Washer
SKU: 67288-98J50 Weight: 0.100000 Brand: Price: $ 3.04 |
Washer | 8 | $ 3.04 | ||
| 24 | 67296-98JC0 Screw (6x40) (NLA)
SKU: 67296-98JC0 Weight: 0.100000 Brand: Price: $ 4.88 |
Screw (6x40) (NLA) | 4 | $ 4.88 | ||
| 25 | 67287-98J00 Nut (NLA)
SKU: 67287-98J00 Weight: 0.100000 Brand: Price: $ 2.98 |
Nut (NLA) | 4 | $ 2.98 | ||
| 26 | 67226-98J10 Bolt (6x50) (NLA)
SKU: 67226-98J10 Weight: 0.100000 Brand: Price: $ 7.00 |
Bolt (6x50) (NLA) | 4 | $ 7.00 | ||
| 27 | 67288-98J60 Washer (NLA)
SKU: 67288-98J60 Weight: 0.100000 Brand: Price: $ 3.71 |
Washer (NLA) | 3 | $ 3.71 | ||
| 28 | 67296-98JD0 Screw (5x40) (NLA)
SKU: 67296-98JD0 Weight: 0.100000 Brand: Price: $ 5.06 |
Screw (5x40) (NLA) | 1 | $ 5.06 | ||
| 29 | 67238-98J00 Pin (NLA)
SKU: 67238-98J00 Weight: 0.100000 Brand: Price: $ 5.01 |
Pin (NLA) | 2 | $ 5.01 | ||
| 30 | 67288-98J70 Washer (NLA)
SKU: 67288-98J70 Weight: 0.100000 Brand: Price: $ 2.44 |
Washer (NLA) | 5 | $ 2.44 | ||
| 31 | 67246-98J00 Drive Shaft (NLA)
SKU: 67246-98J00 Weight: 0.100000 Brand: Price: $ 54.03 |
Drive Shaft (NLA) | 1 | $ 54.03 | ||
| 32 | 67222-98J00 Back Panel Assembly (NLA)
SKU: 67222-98J00 Weight: 0.100000 Brand: Price: $ 27.50 |
Back Panel Assembly (NLA) | 1 | $ 27.50 | ||
| 33 | 67236-98J00 Detent Roller (NLA)
SKU: 67236-98J00 Weight: 0.100000 Brand: Price: $ 3.79 |
Detent Roller (NLA) | 1 | $ 3.79 | ||
| 34 | 67235-98J00 Detent Roller Guide (NLA)
SKU: 67235-98J00 Weight: 0.100000 Brand: Price: $ 3.14 |
Detent Roller Guide (NLA) | 1 | $ 3.14 | ||
| 35 | 67237-98J00 Detent Spring (NLA)
SKU: 67237-98J00 Weight: 0.100000 Brand: Price: $ 4.50 |
Detent Spring (NLA) | 1 | $ 4.50 | ||
| 36 | 67223-98J00 Brake Pad (NLA)
SKU: 67223-98J00 Weight: 0.100000 Brand: Price: $ 9.40 |
Brake Pad (NLA) | 1 | $ 9.40 | ||
| 37 | 67296-98JE0 Screw (5x35) (NLA)
SKU: 67296-98JE0 Weight: 0.100000 Brand: Price: $ 5.69 |
Screw (5x35) (NLA) | 1 | $ 5.69 | ||
| 38 | 67252-98J00 Drive Shaft Bushing (NLA)
SKU: 67252-98J00 Weight: 0.100000 Brand: Price: $ 3.59 |
Drive Shaft Bushing (NLA) | 1 | $ 3.59 | ||
| 39 | 67288-98J20 Washer (NLA)
SKU: 67288-98J20 Weight: 0.100000 Brand: Price: $ 5.12 |
Washer (NLA) | 1 | $ 5.12 | ||
| 40 | 67292-98J00 C-Ring (NLA)
SKU: 67292-98J00 Weight: 0.100000 Brand: Price: $ 6.48 |
C-Ring (NLA) | 1 | $ 6.48 | ||
| 41 | 15980-98J00 Potentiometer
SKU: 15980-98J00 Weight: 0.120000 Brand: Price: $ 357.86 |
Potentiometer | 1 | $ 357.86 | ||
| 42 | 67227-98J10 Potentiometer No. 2 Lever
SKU: 67227-98J10 Weight: 0.100000 Brand: Price: $ 4.18 |
Potentiometer No. 2 Lever | 1 | $ 4.18 | ||
| 43 | 67296-94300 Screw (4x10)
SKU: 67296-94300 Weight: 0.060000 Brand: Price: $ 1.31 |
Screw (4x10) | 2 | $ 1.31 | ||
| 44 | 67288-98J00 Potentiometer Washer (NLA)
SKU: 67288-98J00 Weight: 0.100000 Brand: Price: $ 1.90 |
Potentiometer Washer (NLA) | 5 | $ 1.90 | ||
| 45 | 67296-98J10 Screw (5x35) (NLA)
SKU: 67296-98J10 Weight: 0.100000 Brand: Price: $ 3.01 |
Screw (5x35) (NLA) | 1 | $ 3.01 | ||
| 46 | 67288-98J10 Spring Washer (NLA)
SKU: 67288-98J10 Weight: 0.100000 Brand: Price: $ 4.04 |
Spring Washer (NLA) | 8 | $ 4.04 | ||
| 47 | 67288-98J50 Washer
SKU: 67288-98J50 Weight: 0.100000 Brand: Price: $ 3.04 |
Washer | 2 | $ 3.04 | ||
| 48 | 67296-98J60 Screw (8x30)
SKU: 67296-98J60 Weight: 0.100000 Brand: Price: $ 4.73 |
Screw (8x30) | 1 | $ 4.73 | ||
| 49 | 09160-06104 Washer (6.5x24x2)
SKU: 09160-06104 Weight: 0.062500 Brand: Price: $ 2.64 |
Washer (6.5x24x2) | 4 | $ 2.64 | ||
| 50 | 67296-98J50 Screw (5x18) (NLA)
SKU: 67296-98J50 Weight: 0.100000 Brand: Price: $ 2.39 |
Screw (5x18) (NLA) | 2 | $ 2.39 | ||
| 51 | 67272-98J00 Cover Grommet
SKU: 67272-98J00 Weight: 0.100000 Brand: Price: $ 7.41 |
Cover Grommet | 2 | $ 7.41 | ||
| 52 | 37850-98J03 PTT Switch Assembly
SKU: 37850-98J03 Weight: 0.250000 Brand: Price: $ 72.29 |
PTT Switch Assembly | 1 | $ 72.29 | ||
| 53 | 67269-98J10 Band (NLA)
SKU: 67269-98J10 Weight: 0.100000 Brand: Price: $ 3.55 |
Band (NLA) | 1 | $ 3.55 | ||
| 54 | 68165-98J00 Lever Mark (Suzuki)
SKU: 68165-98J00 Weight: 0.100000 Brand: Price: $ 20.06 |
Lever Mark (Suzuki) | 1 | $ 20.06 | ||
| 55 | 36890-98J00 Condenser Adapter Harness
SKU: 36890-98J00 Weight: 0.100000 Brand: Price: $ 112.06 |
Condenser Adapter Harness | 1 | $ 112.06 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
