Suzuki DF 300 Parts Listings 2008 & Newer

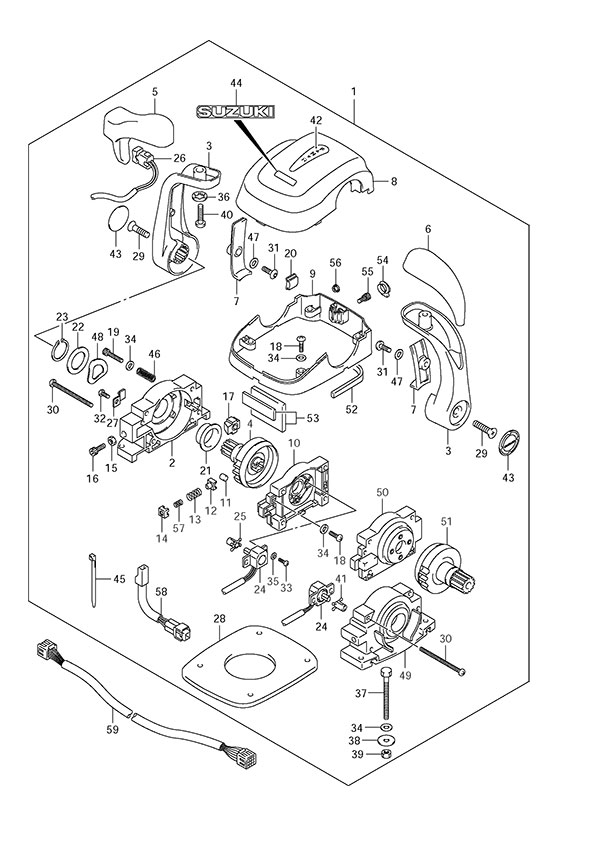

Fig. 44 - Opt: Top Mount Dual

Ref#	Part Number	Description	Req Qty*	Price Each	Order	Remarks
2	67211-98J20 Housing (L) (NLA) SKU: 67211-98J20 Weight: 0.200000 Brand: Price: $ 110.47	Housing (L) (NLA)	1	$ 110.47	Not Available
3	67251-98J00 Handle Lever SKU: 67251-98J00 Weight: 1.000000 Brand: Price: $ 169.45	Handle Lever	2	$ 169.45
4	67246-98J10 Drive Shaft (NLA) SKU: 67246-98J10 Weight: 0.100000 Brand: Price: $ 98.14	Drive Shaft (NLA)	1	$ 98.14	Not Available
5	67261-98J00 Grip No. 1 SKU: 67261-98J00 Weight: 0.100000 Brand: Price: $ 13.15	Grip No. 1	1	$ 13.15
6	67261-98J10 Grip No. 2 (NLA) SKU: 67261-98J10 Weight: 0.100000 Brand: Price: $ 9.45	Grip No. 2 (NLA)	1	$ 9.45
7	67263-98J00 Lever Cover (NLA) SKU: 67263-98J00 Weight: 0.100000 Brand: Price: $ 34.88	Lever Cover (NLA)	2	$ 34.88	Not Available
8	67212-98J30 Upper Cover SKU: 67212-98J30 Weight: 0.100000 Brand: Price: $ 147.99	Upper Cover	1	$ 147.99
9	67271-98J40 Bottom Cover SKU: 67271-98J40 Weight: 0.100000 Brand: Price: $ 43.48	Bottom Cover	1	$ 43.48
10	67222-98J10 Back Panel Assembly (NLA) SKU: 67222-98J10 Weight: 0.100000 Brand: Price: $ 46.95	Back Panel Assembly (NLA)	1	$ 46.95	Not Available
11	67236-98J10 Detent Roller (NLA) SKU: 67236-98J10 Weight: 0.100000 Brand: Price: $ 8.63	Detent Roller (NLA)	2	$ 8.63	Not Available
12	67235-98J10 Detent Roller Guide (NLA) SKU: 67235-98J10 Weight: 0.100000 Brand: Price: $ 16.62	Detent Roller Guide (NLA)	2	$ 16.62	Not Available
13	67237-98J40 Detent Spring (NLA) SKU: 67237-98J40 Weight: 0.100000 Brand: Price: $ 14.63	Detent Spring (NLA)	2	$ 14.63	Not Available
14	67233-98J10 Detent Spring Holder (NLA) SKU: 67233-98J10 Weight: 0.100000 Brand: Price: $ 15.08	Detent Spring Holder (NLA)	2	$ 15.08	Not Available
15	67287-92E00 Nut SKU: 67287-92E00 Weight: 0.125000 Brand: Price: $ 2.40	Nut	1	$ 2.40
16	67239-98J00 Detent Adjust Screw (NLA) SKU: 67239-98J00 Weight: 0.100000 Brand: Price: $ 7.50	Detent Adjust Screw (NLA)	1	$ 7.50	Not Available
17	67223-98J00 Brake Pad (NLA) SKU: 67223-98J00 Weight: 0.100000 Brand: Price: $ 9.40	Brake Pad (NLA)	2	$ 9.40	Not Available
18	67296-98J50 Screw (5x18) (NLA) SKU: 67296-98J50 Weight: 0.100000 Brand: Price: $ 2.39	Screw (5x18) (NLA)	8	$ 2.39	Not Available
19	67296-98JA0 Screw (4x10) (NLA) SKU: 67296-98JA0 Weight: 0.060000 Brand: Price: $ 4.47	Screw (4x10) (NLA)	2	$ 4.47	Not Available
20	67272-98J10 Cover Grommet SKU: 67272-98J10 Weight: 0.100000 Brand: Price: $ 8.11	Cover Grommet	2	$ 8.11
21	67252-98J10 Drive Shaft Bushing SKU: 67252-98J10 Weight: 0.100000 Brand: Price: $ 23.41	Drive Shaft Bushing	2	$ 23.41
22	67288-98J20 Washer (NLA) SKU: 67288-98J20 Weight: 0.100000 Brand: Price: $ 5.12	Washer (NLA)	2	$ 5.12	Not Available
23	67292-98J00 C-Ring (NLA) SKU: 67292-98J00 Weight: 0.100000 Brand: Price: $ 6.48	C-Ring (NLA)	2	$ 6.48	Not Available
24	15980-98J00 Potentiometer SKU: 15980-98J00 Weight: 0.120000 Brand: Price: $ 357.86	Potentiometer	2	$ 357.86
25	67227-98J00 Potentiometer No. 1 Lever SKU: 67227-98J00 Weight: 0.100000 Brand: Price: $ 4.18	Potentiometer No. 1 Lever	1	$ 4.18
26	37850-98J03 PTT Switch Assembly SKU: 37850-98J03 Weight: 0.250000 Brand: Price: $ 72.29	PTT Switch Assembly	1	$ 72.29
27	67269-98J00 Lead Clamp (NLA) SKU: 67269-98J00 Weight: 0.100000 Brand: Price: $ 5.32	Lead Clamp (NLA)	1	$ 5.32	Not Available
28	67273-98J20 Packing (NLA) SKU: 67273-98J20 Weight: 0.100000 Brand: Price: $ 5.95	Packing (NLA)	1	$ 5.95
29	67296-98J60 Screw (8x30) SKU: 67296-98J60 Weight: 0.100000 Brand: Price: $ 4.73	Screw (8x30)	2	$ 4.73	Not Available
30	67296-98J30 Screw (5x70) (NLA) SKU: 67296-98J30 Weight: 0.100000 Brand: Price: $ 7.01	Screw (5x70) (NLA)	4	$ 7.01	Not Available
31	67296-98J80 Lever Cover Screw SKU: 67296-98J80 Weight: 0.100000 Brand: Price: $ 4.30	Lever Cover Screw	2	$ 4.30	Not Available
32	67296-98J00 Clamp Screw (NLA) SKU: 67296-98J00 Weight: 0.100000 Brand: Price: $ 2.27	Clamp Screw (NLA)	1	$ 2.27	Not Available
33	67296-94300 Screw (4x10) SKU: 67296-94300 Weight: 0.060000 Brand: Price: $ 1.31	Screw (4x10)	4	$ 1.31
34	67288-98J40 Bottom Cover Washer (NLA) SKU: 67288-98J40 Weight: 0.100000 Brand: Price: $ 2.27	Bottom Cover Washer (NLA)	14	$ 2.27	Not Available
35	67288-98J00 Potentiometer Washer (NLA) SKU: 67288-98J00 Weight: 0.100000 Brand: Price: $ 1.90	Potentiometer Washer (NLA)	4	$ 1.90	Not Available
36	67288-92E20 Washer SKU: 67288-92E20 Weight: 0.060000 Brand: Price: $ 2.49	Washer	2	$ 2.49
37	67226-98J00 Bolt (5x50) SKU: 67226-98J00 Weight: 0.100000 Brand: Price: $ 4.25	Bolt (5x50)	4	$ 4.25
38	09160-05024 Washer (5.5x16x1.5) SKU: 09160-05024 Weight: 0.060000 Brand: Price: $ 1.54	Washer (5.5x16x1.5)	4	$ 1.54
39	67287-92E00 Nut SKU: 67287-92E00 Weight: 0.125000 Brand: Price: $ 2.40	Nut	4	$ 2.40
40	67296-98J90 Screw (8x30) (NLA) SKU: 67296-98J90 Weight: 0.100000 Brand: Price: $ 2.39	Screw (8x30) (NLA)	2	$ 2.39	Not Available
41	67227-98J00 Potentiometer No. 1 Lever SKU: 67227-98J00 Weight: 0.100000 Brand: Price: $ 4.18	Potentiometer No. 1 Lever	1	$ 4.18
42	67284-98J00 Mark (F-N-R) SKU: 67284-98J00 Weight: 0.060000 Brand: Price: $ 32.54	Mark (F-N-R)	1	$ 32.54
43	68165-98J00 Lever Mark (Suzuki) SKU: 68165-98J00 Weight: 0.100000 Brand: Price: $ 20.06	Lever Mark (Suzuki)	2	$ 20.06
44	68165-98J10 Emblem (Suzuki) SKU: 68165-98J10 Weight: 0.100000 Brand: Price: $ 6.25	Emblem (Suzuki)	1	$ 6.25
45	67269-98J30 Band (NLA) SKU: 67269-98J30 Weight: 0.100000 Brand: Price: $ 3.89	Band (NLA)	1	$ 3.89	Not Available
46	67288-98J10 Spring Washer (NLA) SKU: 67288-98J10 Weight: 0.100000 Brand: Price: $ 4.04	Spring Washer (NLA)	16	$ 4.04	Not Available
47	67288-98J30 Lever Cover Washer (NLA) SKU: 67288-98J30 Weight: 0.100000 Brand: Price: $ 3.63	Lever Cover Washer (NLA)	2	$ 3.63	Not Available
48	67228-98J50 Wave Washer (NLA) SKU: 67228-98J50 Weight: 0.100000 Brand: Price: $ 4.13	Wave Washer (NLA)	2	$ 4.13	Not Available
49	67211-98J30 Housing (R) SKU: 67211-98J30 Weight: 0.500000 Brand: Price: $ 163.68	Housing (R)	1	$ 163.68
50	67222-98J20 Back Panel Assembly SKU: 67222-98J20 Weight: 0.100000 Brand: Price: $ 62.36	Back Panel Assembly	1	$ 62.36
51	67246-98J20 Drive Shaft SKU: 67246-98J20 Weight: 0.100000 Brand: Price: $ 130.33	Drive Shaft	1	$ 130.33
52	67273-98J10 Front Packing (NLA) SKU: 67273-98J10 Weight: 0.100000 Brand: Price: $ 18.56	Front Packing (NLA)	1	$ 18.56	Not Available
53	67273-98J30 Rear Packing (NLA) SKU: 67273-98J30 Weight: 0.100000 Brand: Price: $ 11.38	Rear Packing (NLA)	1	$ 11.38	Not Available
54	67277-98J00 Grommet SKU: 67277-98J00 Weight: 0.100000 Brand: Price: $ 12.06	Grommet	1	$ 12.06
55	67296-98JF0 Upper Cover Bolt SKU: 67296-98JF0 Weight: 0.100000 Brand: Price: $ 5.90	Upper Cover Bolt	1	$ 5.90
56	67297-98J00 Upper Cover Nut SKU: 67297-98J00 Weight: 0.100000 Brand: Price: $ 3.31	Upper Cover Nut	1	$ 3.31
57	67237-98J50 Detent Spring (NLA) SKU: 67237-98J50 Weight: 0.100000 Brand: Price: $ 5.01	Detent Spring (NLA)	2	$ 5.01	Not Available
58	36890-98J00 Condenser Adapter Harness SKU: 36890-98J00 Weight: 0.100000 Brand: Price: $ 112.06	Condenser Adapter Harness	1	$ 112.06
59-1	36620-98J31 Replaced by 36620-98J33 SKU: 36620-98J31 Weight: 3.000000 Brand: Price: $ 230.91	Replaced by 36620-98J33	1	$ 230.91	Not Available	L:6500
59-2	36620-98J43 31 ft Main Wiring Harness SKU: 36620-98J43 Weight: 2.720000 Brand: Price: $ 348.29	31 ft Main Wiring Harness	1	$ 348.29		L:9500

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.

Prices and Part Numbers subject to change without notice.
