Suzuki DF 300 Parts Listings 2007

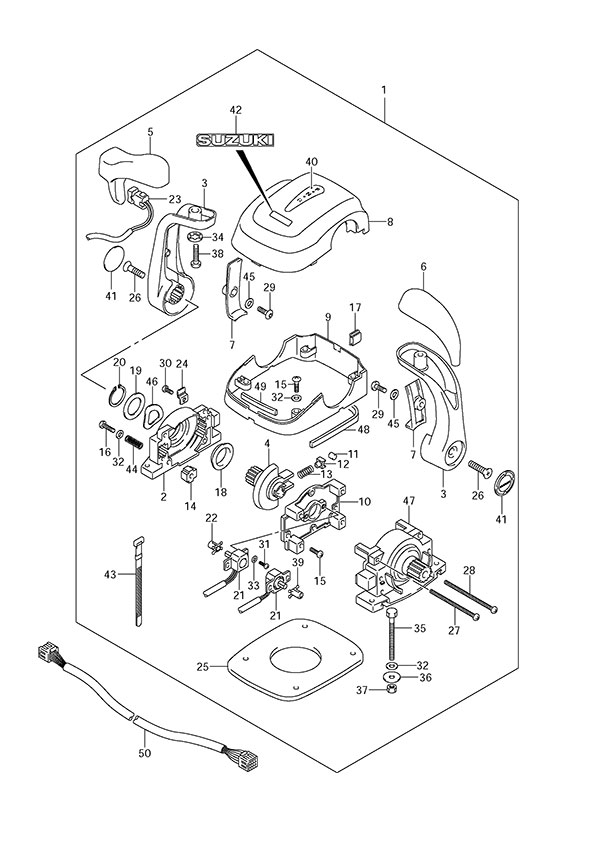

Fig. 43 - Opt: Top Mount Dual
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 2 | 67211-98J00 Housing (L) (NLA)
SKU: 67211-98J00 Weight: 0.100000 Brand: Price: $ 84.65 |
Housing (L) (NLA) | 1 | $ 84.65 | ||
| 3 | 67251-98J00 Handle Lever
SKU: 67251-98J00 Weight: 1.000000 Brand: Price: $ 169.45 |
Handle Lever | 2 | $ 169.45 | ||
| 4 | 67246-98J00 Drive Shaft (NLA)
SKU: 67246-98J00 Weight: 0.100000 Brand: Price: $ 54.03 |
Drive Shaft (NLA) | 2 | $ 54.03 | ||
| 5 | 67261-98J00 Grip No. 1
SKU: 67261-98J00 Weight: 0.100000 Brand: Price: $ 13.15 |
Grip No. 1 | 1 | $ 13.15 | ||
| 6 | 67261-98J10 Grip No. 2 (NLA)
SKU: 67261-98J10 Weight: 0.100000 Brand: Price: $ 9.45 |
Grip No. 2 (NLA) | 1 | $ 9.45 | ||
| 7 | 67263-98J00 Lever Cover (NLA)
SKU: 67263-98J00 Weight: 0.100000 Brand: Price: $ 34.88 |
Lever Cover (NLA) | 2 | $ 34.88 | ||
| 8 | 67212-98J10 Upper Cover
SKU: 67212-98J10 Weight: 0.250000 Brand: Price: $ 147.99 |
Upper Cover | 1 | $ 147.99 | ||
| 9 | 67271-98J10 Bottom Cover (NLA)
SKU: 67271-98J10 Weight: 0.100000 Brand: Price: $ 29.89 |
Bottom Cover (NLA) | 1 | $ 29.89 | ||
| 10 | 67222-98J00 Back Panel Assembly (NLA)
SKU: 67222-98J00 Weight: 0.100000 Brand: Price: $ 27.50 |
Back Panel Assembly (NLA) | 2 | $ 27.50 | ||
| 11 | 67236-98J00 Detent Roller (NLA)
SKU: 67236-98J00 Weight: 0.100000 Brand: Price: $ 3.79 |
Detent Roller (NLA) | 2 | $ 3.79 | ||
| 12 | 67235-98J00 Detent Roller Guide (NLA)
SKU: 67235-98J00 Weight: 0.100000 Brand: Price: $ 3.14 |
Detent Roller Guide (NLA) | 2 | $ 3.14 | ||
| 13 | 67237-98J00 Detent Spring (NLA)
SKU: 67237-98J00 Weight: 0.100000 Brand: Price: $ 4.50 |
Detent Spring (NLA) | 2 | $ 4.50 | ||
| 14 | 67223-98J00 Brake Pad (NLA)
SKU: 67223-98J00 Weight: 0.100000 Brand: Price: $ 9.40 |
Brake Pad (NLA) | 2 | $ 9.40 | ||
| 15 | 67296-98J50 Screw (5x18) (NLA)
SKU: 67296-98J50 Weight: 0.100000 Brand: Price: $ 2.39 |
Screw (5x18) (NLA) | 8 | $ 2.39 | ||
| 16 | 67296-98J70 Brake Adjustment Screw (NLA)
SKU: 67296-98J70 Weight: 0.100000 Brand: Price: $ 2.39 |
Brake Adjustment Screw (NLA) | 2 | $ 2.39 | ||
| 17 | 67272-98J00 Cover Grommet
SKU: 67272-98J00 Weight: 0.100000 Brand: Price: $ 7.41 |
Cover Grommet | 2 | $ 7.41 | ||
| 18 | 67252-98J00 Drive Shaft Bushing (NLA)
SKU: 67252-98J00 Weight: 0.100000 Brand: Price: $ 3.59 |
Drive Shaft Bushing (NLA) | 2 | $ 3.59 | ||
| 19 | 67288-98J20 Washer (NLA)
SKU: 67288-98J20 Weight: 0.100000 Brand: Price: $ 5.12 |
Washer (NLA) | 2 | $ 5.12 | ||
| 20 | 67292-98J00 C-Ring (NLA)
SKU: 67292-98J00 Weight: 0.100000 Brand: Price: $ 6.48 |
C-Ring (NLA) | 2 | $ 6.48 | ||
| 21 | 15980-98J00 Potentiometer
SKU: 15980-98J00 Weight: 0.120000 Brand: Price: $ 357.86 |
Potentiometer | 2 | $ 357.86 | ||
| 22 | 67227-98J10 Potentiometer No. 2 Lever
SKU: 67227-98J10 Weight: 0.100000 Brand: Price: $ 4.18 |
Potentiometer No. 2 Lever | 1 | $ 4.18 | ||
| 23 | 37850-98J03 PTT Switch Assembly
SKU: 37850-98J03 Weight: 0.250000 Brand: Price: $ 72.29 |
PTT Switch Assembly | 1 | $ 72.29 | ||
| 24 | 67296-98J00 Clamp Screw (NLA)
SKU: 67296-98J00 Weight: 0.100000 Brand: Price: $ 2.27 |
Clamp Screw (NLA) | 1 | $ 2.27 | ||
| 25 | 67273-98J20 Packing (NLA)
SKU: 67273-98J20 Weight: 0.100000 Brand: Price: $ 5.95 |
Packing (NLA) | 1 | $ 5.95 | ||
| 26 | 67296-98J60 Screw (8x30)
SKU: 67296-98J60 Weight: 0.100000 Brand: Price: $ 4.73 |
Screw (8x30) | 2 | $ 4.73 | ||
| 27 | 67296-98J30 Screw (5x70) (NLA)
SKU: 67296-98J30 Weight: 0.100000 Brand: Price: $ 7.01 |
Screw (5x70) (NLA) | 2 | $ 7.01 | ||
| 28 | 67296-98J40 Screw (5x80) (NLA)
SKU: 67296-98J40 Weight: 0.100000 Brand: Price: $ 7.01 |
Screw (5x80) (NLA) | 2 | $ 7.01 | ||
| 29 | 67296-98J80 Lever Cover Screw
SKU: 67296-98J80 Weight: 0.100000 Brand: Price: $ 4.30 |
Lever Cover Screw | 2 | $ 4.30 | ||
| 30 | 67296-98J00 Clamp Screw (NLA)
SKU: 67296-98J00 Weight: 0.100000 Brand: Price: $ 2.27 |
Clamp Screw (NLA) | 1 | $ 2.27 | ||
| 31 | 67296-94300 Screw (4x10)
SKU: 67296-94300 Weight: 0.060000 Brand: Price: $ 1.31 |
Screw (4x10) | 4 | $ 1.31 | ||
| 32 | 67288-98J40 Bottom Cover Washer (NLA)
SKU: 67288-98J40 Weight: 0.100000 Brand: Price: $ 2.27 |
Bottom Cover Washer (NLA) | 10 | $ 2.27 | ||
| 33 | 67288-98J00 Potentiometer Washer (NLA)
SKU: 67288-98J00 Weight: 0.100000 Brand: Price: $ 1.90 |
Potentiometer Washer (NLA) | 4 | $ 1.90 | ||
| 34 | 67288-92E20 Washer
SKU: 67288-92E20 Weight: 0.060000 Brand: Price: $ 2.49 |
Washer | 2 | $ 2.49 | ||
| 35 | 67226-98J00 Bolt (5x50)
SKU: 67226-98J00 Weight: 0.100000 Brand: Price: $ 4.25 |
Bolt (5x50) | 4 | $ 4.25 | ||
| 36 | 09160-05024 Washer (5.5x16x1.5)
SKU: 09160-05024 Weight: 0.060000 Brand: Price: $ 1.54 |
Washer (5.5x16x1.5) | 4 | $ 1.54 | ||
| 37 | 67287-92E00 Nut
SKU: 67287-92E00 Weight: 0.125000 Brand: Price: $ 2.40 |
Nut | 4 | $ 2.40 | ||
| 38 | 67296-98J90 Screw (8x30) (NLA)
SKU: 67296-98J90 Weight: 0.100000 Brand: Price: $ 2.39 |
Screw (8x30) (NLA) | 2 | $ 2.39 | ||
| 39 | 67227-98J00 Potentiometer No. 1 Lever
SKU: 67227-98J00 Weight: 0.100000 Brand: Price: $ 4.18 |
Potentiometer No. 1 Lever | 1 | $ 4.18 | ||
| 40 | 67284-98J00 Mark (F-N-R)
SKU: 67284-98J00 Weight: 0.060000 Brand: Price: $ 32.54 |
Mark (F-N-R) | 1 | $ 32.54 | ||
| 41 | 68165-98J00 Lever Mark (Suzuki)
SKU: 68165-98J00 Weight: 0.100000 Brand: Price: $ 20.06 |
Lever Mark (Suzuki) | 2 | $ 20.06 | ||
| 42 | 68165-98J10 Emblem (Suzuki)
SKU: 68165-98J10 Weight: 0.100000 Brand: Price: $ 6.25 |
Emblem (Suzuki) | 1 | $ 6.25 | ||
| 43 | 67269-98J10 Band (NLA)
SKU: 67269-98J10 Weight: 0.100000 Brand: Price: $ 3.55 |
Band (NLA) | 1 | $ 3.55 | ||
| 44 | 67288-98J10 Spring Washer (NLA)
SKU: 67288-98J10 Weight: 0.100000 Brand: Price: $ 4.04 |
Spring Washer (NLA) | 16 | $ 4.04 | ||
| 45 | 67288-98J30 Lever Cover Washer (NLA)
SKU: 67288-98J30 Weight: 0.100000 Brand: Price: $ 3.63 |
Lever Cover Washer (NLA) | 2 | $ 3.63 | ||
| 46 | 67228-98J50 Wave Washer (NLA)
SKU: 67228-98J50 Weight: 0.100000 Brand: Price: $ 4.13 |
Wave Washer (NLA) | 2 | $ 4.13 | ||
| 47 | 67211-98J10 Housing (R) (NLA)
SKU: 67211-98J10 Weight: 0.100000 Brand: Price: $ 79.95 |
Housing (R) (NLA) | 1 | $ 79.95 | ||
| 48 | 67273-98J10 Front Packing (NLA)
SKU: 67273-98J10 Weight: 0.100000 Brand: Price: $ 18.56 |
Front Packing (NLA) | 1 | $ 18.56 | ||
| 49 | 67273-98J30 Rear Packing (NLA)
SKU: 67273-98J30 Weight: 0.100000 Brand: Price: $ 11.38 |
Rear Packing (NLA) | 1 | $ 11.38 | ||
| 50-1 | 36620-98J31 Replaced by 36620-98J33
SKU: 36620-98J31 Weight: 3.000000 Brand: Price: $ 230.91 |
Replaced by 36620-98J33 | 1 | $ 230.91 | L:6500 | |
| 50-2 | 36620-98J43 31 ft Main Wiring Harness
SKU: 36620-98J43 Weight: 2.720000 Brand: Price: $ 348.29 |
31 ft Main Wiring Harness | 1 | $ 348.29 | L:9500 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
