Suzuki DF 115BG Parts Listings - 2022
S/N 11505F-240001 to 11505F-24XXXX
S/N DF 115BZG 11505F-240001 to 11505Z-24XXXX

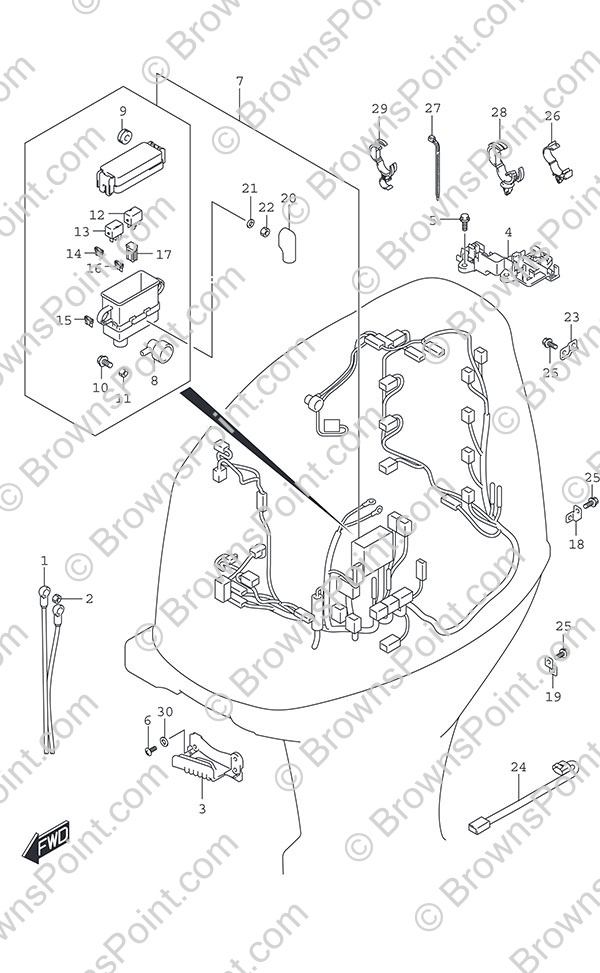

Fig. 322 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-90J30 CABLE ASSY,STAR
SKU: 33810-90J30 Weight: 0.000000 Brand: Price: $ 179.86 |
CABLE ASSY,STAR | 1 | $ 179.86 | ||
| 2 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.38 |
Nut | 1 | $ 2.38 | ||
| 3 | 36616-99L00 HOLDER,CABLE
SKU: 36616-99L00 Weight: 0.000000 Brand: Price: $ 74.28 |
HOLDER,CABLE | 1 | $ 74.28 | ||
| 4 | 36616-99L10 HOLDER,CONNECTO
SKU: 36616-99L10 Weight: 0.000000 Brand: Price: $ 46.72 |
HOLDER,CONNECTO | 1 | $ 46.72 | ||
| 5 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.82 |
BOLT | 3 | $ 1.82 | ||
| 6 | 02142-0616C Screw
SKU: 02142-0616C Weight: 0.060000 Brand: Price: $ 0.00 |
Screw | 2 | $ 0.00 | ||
| 7 | 36610-99L30 HARNESS ASSY,WI
SKU: 36610-99L30 Weight: 0.000000 Brand: Price: $ 768.80 |
HARNESS ASSY,WI | 1 | $ 768.80 | ||
| 8 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.75 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.75 | ||
| 9 | 09320-08510 Cushion (8.5x20x8)
SKU: 09320-08510 Weight: 0.060000 Brand: Price: $ 1.80 |
Cushion (8.5x20x8) | 2 | $ 1.80 | ||
| 10 | 01500-06167 BOLT
SKU: 01500-06167 Weight: 0.125000 Brand: Price: $ 2.08 |
BOLT | 1 | $ 2.08 | ||
| 11 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.95 |
Nut | 1 | $ 1.95 | ||
| 12 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 38.15 |
Relay | 1 | $ 38.15 | ||
| 13 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 38.15 |
Relay | 1 | $ 38.15 | ||
| 14 | 09481-15504 15 Amp Fuse
SKU: 09481-15504 Weight: 0.060000 Brand: Price: $ 2.18 |
15 Amp Fuse | 4 | $ 2.18 | ||
| 15 | 09481-30504 30 Amp Fuse
SKU: 09481-30504 Weight: 0.060000 Brand: Price: $ 2.12 |
30 Amp Fuse | 3 | $ 2.12 | ||
| 16 | 09481-60403 60 Amp Fuse
SKU: 09481-60403 Weight: 0.060000 Brand: Price: $ 5.43 |
60 Amp Fuse | 3 | $ 5.43 | ||
| 17 | 33634-96J00 Service Connector Cap
SKU: 33634-96J00 Weight: 0.125000 Brand: Price: $ 7.53 |
Service Connector Cap | 1 | $ 7.53 | ||
| 18 | 36721-98L00 Upper Cover O-Ring
SKU: 36721-98L00 Weight: 0.060000 Brand: Price: $ 12.30 |
Upper Cover O-Ring | 1 | $ 12.30 | ||
| 19 | 36737-98L00 Fuse Puller
SKU: 36737-98L00 Weight: 0.060000 Brand: Price: $ 4.37 |
Fuse Puller | 1 | $ 4.37 | ||
| 20 | 36738-98L00 Fuse Case Upper Cover
SKU: 36738-98L00 Weight: 0.060000 Brand: Price: $ 17.45 |
Fuse Case Upper Cover | 1 | $ 17.45 | ||
| 21 | 36617-88L00 Harness Bracket (NLA)
SKU: 36617-88L00 Weight: 0.250000 Brand: Price: $ 3.47 |
Harness Bracket (NLA) | 1 | $ 3.47 | ||
| 22 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.06 |
Harness Bracket | 8 | $ 2.06 | ||
| 23 | 36612-96J01 CAP,TERMINAL
SKU: 36612-96J01 Weight: 0.000000 Brand: Price: $ 5.11 |
CAP,TERMINAL | 1 | $ 5.11 | ||
| 24 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.95 |
Lock Washer | 1 | $ 1.95 | ||
| 25 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.95 |
Nut | 1 | $ 1.95 | ||
| 26 | 36617-93J00 Harness Bracket
SKU: 36617-93J00 Weight: 0.125000 Brand: Price: $ 2.12 |
Harness Bracket | 1 | $ 2.12 | ||
| 27 | 36611-99L00 HARNESS ASSY,WI
SKU: 36611-99L00 Weight: 0.000000 Brand: Price: $ 19.05 |
HARNESS ASSY,WI | 1 | $ 19.05 | ||
| 28 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.82 |
BOLT | 10 | $ 1.82 | ||
| 29 | 09403-11321 Clamp
SKU: 09403-11321 Weight: 0.060000 Brand: Price: $ 3.58 |
Clamp | 2 | $ 3.58 | ||
| 30 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.38 |
Clamp (L:125) | 3 | $ 2.38 | ||
| 31 | 09403-20308 Clip
SKU: 09403-20308 Weight: 0.060000 Brand: Price: $ 3.80 |
Clip | 1 | $ 3.80 | ||
| 32 | 09408-00213 09408-00213
SKU: 09408-00213 Weight: Brand: Price: $ 0.00 |
09408-00213 | 1 | $ 0.00 | ||
| 33 | 09169-06053 Washer (6.3x16x1)
SKU: 09169-06053 Weight: 0.100000 Brand: Price: $ 1.18 |
Washer (6.3x16x1) | 2 | $ 1.18 | ||
| 34 | 36617-99L00 BRACKET,R/CON C
SKU: 36617-99L00 Weight: 0.000000 Brand: Price: $ 6.79 |
BRACKET,R/CON C | 1 | $ 6.79 | ||
| 35 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.82 |
BOLT | 1 | $ 1.82 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
- Prices and Part Numbers subject to change without notice.
- All contents of this website apply to the continental U.S. market only.
- All trademarks or product names mentioned herein are the property of their respective owners.
