Suzuki DF 115BG Parts Listings - 2022
S/N 11505F-240001 to 11505F-24XXXX
S/N DF 115BZG 11505F-240001 to 11505Z-24XXXX

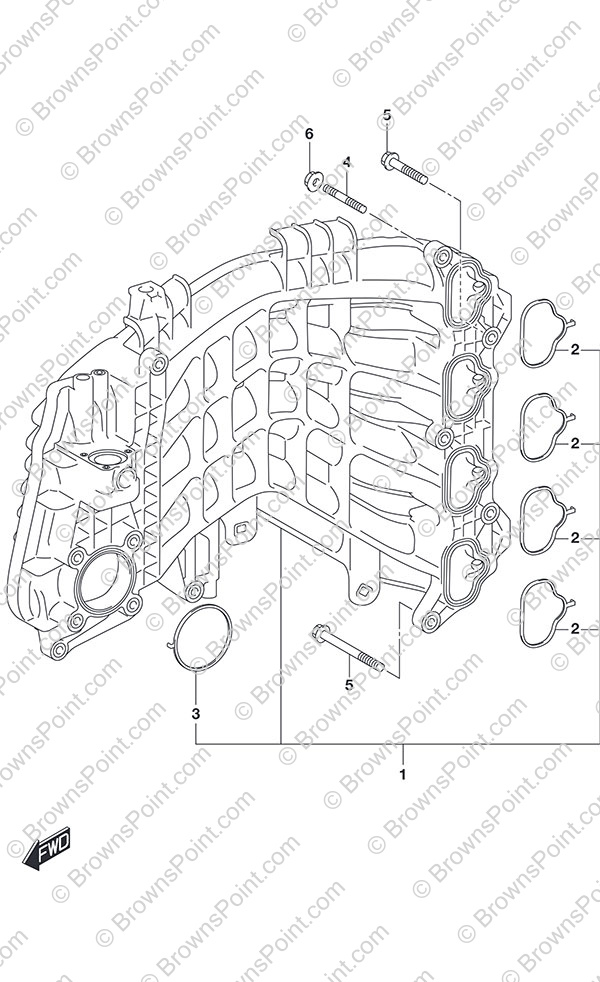

Fig. 122 - Intake Manifold
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13110-99L10 MANIFOLD COMP,I
SKU: 13110-99L10 Weight: 0.000000 Brand: Price: $ 328.32 |
MANIFOLD COMP,I | 1 | $ 328.32 | ||
| 2 | 13119-99L00 GASKET,INTAKE M
SKU: 13119-99L00 Weight: 0.000000 Brand: Price: $ 21.60 |
GASKET,INTAKE M | 4 | $ 21.60 | ||
| 3 | 13125-99L00 GASKET,THROTTLE
SKU: 13125-99L00 Weight: 0.000000 Brand: Price: $ 24.78 |
GASKET,THROTTLE | 1 | $ 24.78 | ||
| 4 | 01421-0830C 01421-0830C
SKU: 01421-0830C Weight: Brand: Price: $ 0.00 |
01421-0830C | 2 | $ 0.00 | ||
| 5 | 01550-0835C Bolt
SKU: 01550-0835C Weight: 0.060000 Brand: Price: $ 0.00 |
Bolt | 6 | $ 0.00 | ||
| 6 | 08316-1008C Nut
SKU: 08316-1008C Weight: 0.060000 Brand: Price: $ 0.00 |
Nut | 2 | $ 0.00 | ||
| 7 | 18137-87L02 IAC Valve
SKU: 18137-87L02 Weight: 0.300000 Brand: Price: $ 270.38 |
IAC Valve | 1 | $ 270.38 | ||
| 8 | 18140-99L00 FILTER COMP,IAC
SKU: 18140-99L00 Weight: 0.000000 Brand: Price: $ 23.14 |
FILTER COMP,IAC | 1 | $ 23.14 | ||
| 9 | 02112-34167 SCREW
SKU: 02112-34167 Weight: 0.060000 Brand: Price: $ 2.25 |
SCREW | 1 | $ 2.25 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
