Suzuki DF 300 Parts Listings 2007 to S/N 30002F-11XXXX 2007 to S/N 30002Z-11XXXX

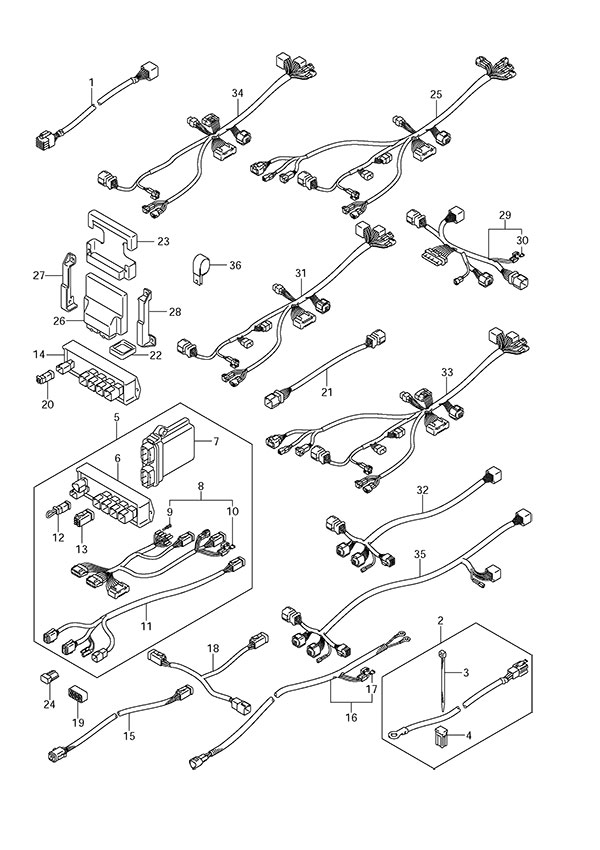

Fig. 39 - Opt: Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 2 | 33830-98J02 Battery Isolator Lead Set
SKU: 33830-98J02 Weight: 0.800000 Brand: Price: $ 97.05 |
Battery Isolator Lead Set | 1 | $ 97.05 | ||
| 3 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 2 | $ 2.52 | ||
| 4 | 09481-40401 40 Amp Fuse
SKU: 09481-40401 Weight: 0.060000 Brand: Price: $ 6.92 |
40 Amp Fuse | 1 | $ 6.92 | ||
| 5 | 34011-98J02 3 in Gauge Connect Kit (NLA)
SKU: 34011-98J02 Weight: 2.000000 Brand: Price: $ 1,724.67 |
3 in Gauge Connect Kit (NLA) | 1 | $ 1,724.67 | ||
| 6 | 34921-98J00 Active Hub Unit (NLA)
SKU: 34921-98J00 Weight: 1.000000 Brand: Price: $ 120.95 |
Active Hub Unit (NLA) | 1 | $ 120.95 | ||
| 7 | 34922-98J02 Interface Unit (NLA)
SKU: 34922-98J02 Weight: 0.100000 Brand: Price: $ 206.95 |
Interface Unit (NLA) | 1 | $ 206.95 | ||
| 8 | 36661-98J00 Interface Unit Harness Assy (NLA)
SKU: 36661-98J00 Weight: 1.000000 Brand: Price: $ 226.00 |
Interface Unit Harness Assy (NLA) | 1 | $ 226.00 | ||
| 9 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 7 | $ 1.31 | ||
| 10 | 09481-05501 5 Amp Fuse
SKU: 09481-05501 Weight: 0.062500 Brand: Price: $ 2.02 |
5 Amp Fuse | 1 | $ 2.02 | ||
| 11 | 36664-98J00 3 in Gauge Harness Assembly (NLA)
SKU: 36664-98J00 Weight: 1.000000 Brand: Price: $ 154.75 |
3 in Gauge Harness Assembly (NLA) | 1 | $ 154.75 | ||
| 12 | 36665-98J00 Jumper Wire (NLA)
SKU: 36665-98J00 Weight: 0.100000 Brand: Price: $ 22.95 |
Jumper Wire (NLA) | 1 | $ 22.95 | ||
| 13 | 36666-98J10 6 Pin Connector Cap (NLA)
SKU: 36666-98J10 Weight: 0.100000 Brand: Price: $ 29.85 |
6 Pin Connector Cap (NLA) | 2 | $ 29.85 | ||
| 14 | 34921-98J10 Passive Hub Unit (NLA)
SKU: 34921-98J10 Weight: 1.000000 Brand: Price: $ 102.95 |
Passive Hub Unit (NLA) | 1 | $ 102.95 | ||
| 15-1 | 36662-98J00 Hub Harness Assembly (NLA)
SKU: 36662-98J00 Weight: 1.000000 Brand: Price: $ 38.85 |
Hub Harness Assembly (NLA) | 1 | $ 38.85 | L:1000 | |
| 15-2 | 36662-98J10 Hub Harness Assembly (NLA)
SKU: 36662-98J10 Weight: 1.000000 Brand: Price: $ 83.75 |
Hub Harness Assembly (NLA) | 1 | $ 83.75 | L:6500 | |
| 16-1 | 36663-98J00 Active Hub Power Harness Assy (NLA)
SKU: 36663-98J00 Weight: 1.000000 Brand: Price: $ 58.00 |
Active Hub Power Harness Assy (NLA) | 1 | $ 58.00 | L:2500 | |
| 16-2 | 36663-98J10 Active Hub Power Harness Assy
SKU: 36663-98J10 Weight: 1.000000 Brand: Price: $ 113.62 |
Active Hub Power Harness Assy | 1 | $ 113.62 | L:60000 | |
| 17 | 09481-05501 5 Amp Fuse
SKU: 09481-05501 Weight: 0.062500 Brand: Price: $ 2.02 |
5 Amp Fuse | 1 | $ 2.02 | ||
| 18 | 36664-98J10 2 in Gauge Harness Assembly (NLA)
SKU: 36664-98J10 Weight: 1.000000 Brand: Price: $ 75.85 |
2 in Gauge Harness Assembly (NLA) | 1 | $ 75.85 | ||
| 19 | 36666-98J00 8 Pin Connector Cap (NLA)
SKU: 36666-98J00 Weight: 0.100000 Brand: Price: $ 31.60 |
8 Pin Connector Cap (NLA) | 1 | $ 31.60 | ||
| 20 | 36667-98J00 2 Pin Connector Cap (NLA)
SKU: 36667-98J00 Weight: 0.100000 Brand: Price: $ 19.50 |
2 Pin Connector Cap (NLA) | 1 | $ 19.50 | ||
| 21 | 36668-98J00 Resistor Harness
SKU: 36668-98J00 Weight: 0.100000 Brand: Price: $ 36.98 |
Resistor Harness | 1 | $ 36.98 | ||
| 22 | 33911-88BL0 BCM Connector Cap
SKU: 33911-88BL0 Weight: 0.100000 Brand: Price: $ 8.91 |
BCM Connector Cap | 1 | $ 8.91 | ||
| 23 | 33925-93J00 ECU/BCM Cushion
SKU: 33925-93J00 Weight: 0.250000 Brand: Price: $ 8.27 |
ECU/BCM Cushion | 1 | $ 8.27 | ||
| 24 | 33926-98J00 Terminal Resistor
SKU: 33926-98J00 Weight: 0.060000 Brand: Price: $ 5.98 |
Terminal Resistor | 2 | $ 5.98 | ||
| 25 | 36623-98J01 BCM Harness No 1
SKU: 36623-98J01 Weight: 1.000000 Brand: Price: $ 266.51 |
BCM Harness No 1 | 1 | $ 266.51 | ||
| 26 | 36770-98J13 Boat Control Module
SKU: 36770-98J13 Weight: 1.000000 Brand: Price: $ 522.60 |
Boat Control Module | 1 | $ 522.60 | ||
| 27 | 36775-98J00 BCM Holder (L)
SKU: 36775-98J00 Weight: 0.100000 Brand: Price: $ 1.37 |
BCM Holder (L) | 1 | $ 1.37 | ||
| 28 | 36776-98J00 BCM Holder (R)
SKU: 36776-98J00 Weight: 0.100000 Brand: Price: $ 1.37 |
BCM Holder (R) | 1 | $ 1.37 | ||
| 29 | 36622-98J00 Dual Station Main Harness
SKU: 36622-98J00 Weight: 3.000000 Brand: Price: $ 122.81 |
Dual Station Main Harness | 1 | $ 122.81 | ||
| 30 | 09481-10501 10 Amp Fuse
SKU: 09481-10501 Weight: 0.062500 Brand: Price: $ 2.06 |
10 Amp Fuse | 1 | $ 2.06 | ||
| 31 | 36624-98J01 BCM Harness No 2 (NLA)
SKU: 36624-98J01 Weight: 1.000000 Brand: Price: $ 160.85 |
BCM Harness No 2 (NLA) | 1 | $ 160.85 | ||
| 32 | 36621-98J00 Dual Engine/Single Station Harness
SKU: 36621-98J00 Weight: 0.620000 Brand: Price: $ 114.66 |
Dual Engine/Single Station Harness | 1 | $ 114.66 | ||
| 33 | 36623-98J11 BCM Harness No 1
SKU: 36623-98J11 Weight: 1.000000 Brand: Price: $ 363.96 |
BCM Harness No 1 | 1 | $ 363.96 | ||
| 34 | 36624-98J10 BCM Harness No 2
SKU: 36624-98J10 Weight: 1.000000 Brand: Price: $ 206.60 |
BCM Harness No 2 | 1 | $ 206.60 | ||
| 35 | 36621-98J10 Triple Engine/Single Station Harness
SKU: 36621-98J10 Weight: 0.100000 Brand: Price: $ 164.42 |
Triple Engine/Single Station Harness | 1 | $ 164.42 | ||
| 36 | 09403-13402 Harness Clamp (NLA)
SKU: 09403-13402 Weight: 0.100000 Brand: Price: $ 1.83 |
Harness Clamp (NLA) | 10 | $ 1.83 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
