Suzuki DF 300 Parts Listings 2007 to S/N 30002F-11XXXX 2007 to S/N 30002Z-11XXXX

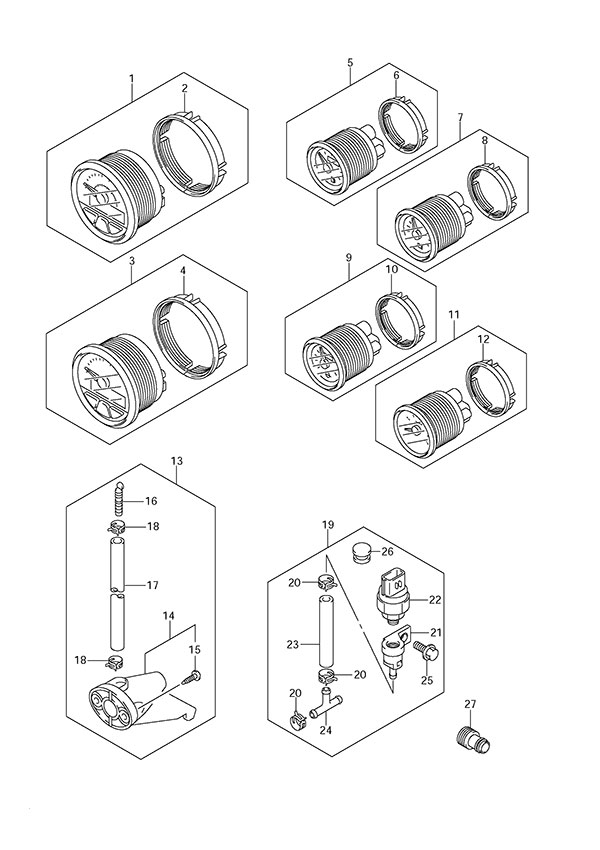

Fig. 38 - Opt: Meter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 34100-98J01 Black Speedometer Assy (130kmh) (NLA)
SKU: 34100-98J01 Weight: 0.100000 Brand: Price: $ 207.95 |
Black Speedometer Assy (130kmh) (NLA) | 1 | $ 207.95 | ||
| 1-2 | 34100-98J11 White Speedometer Assy (130kmh) (NLA)
SKU: 34100-98J11 Weight: 0.100000 Brand: Price: $ 207.95 |
White Speedometer Assy (130kmh) (NLA) | 1 | $ 207.95 | ||
| 1-3 | 34100-98J21 Black Speedometer Assy (80kmh) (NLA)
SKU: 34100-98J21 Weight: 0.100000 Brand: Price: $ 207.95 |
Black Speedometer Assy (80kmh) (NLA) | 1 | $ 207.95 | ||
| 1-4 | 34100-98J31 White Speedometer Assy (80kmh) (NLA)
SKU: 34100-98J31 Weight: 0.100000 Brand: Price: $ 207.95 |
White Speedometer Assy (80kmh) (NLA) | 1 | $ 207.95 | ||
| 2 | 34112-98J00 Nut (NLA)
SKU: 34112-98J00 Weight: 0.100000 Brand: Price: $ 12.41 |
Nut (NLA) | 1 | $ 12.41 | ||
| 3-1 | 34200-98J03 Black Tachometer (NLA)
SKU: 34200-98J03 Weight: 0.100000 Brand: Price: $ 304.95 |
Black Tachometer (NLA) | 1 | $ 304.95 | ||
| 3-2 | 34200-98J13 White Tachometer (NLA)
SKU: 34200-98J13 Weight: 0.100000 Brand: Price: $ 304.95 |
White Tachometer (NLA) | 1 | $ 304.95 | ||
| 4 | 34112-98J00 Nut (NLA)
SKU: 34112-98J00 Weight: 0.100000 Brand: Price: $ 12.41 |
Nut (NLA) | 1 | $ 12.41 | ||
| 5-1 | 34300-98J00 Black Fuel Gauge (NLA)
SKU: 34300-98J00 Weight: 2.600000 Brand: Price: $ 86.50 |
Black Fuel Gauge (NLA) | 1 | $ 86.50 | ||
| 5-2 | 34300-98J10 White Fuel Gauge (NLA)
SKU: 34300-98J10 Weight: 1.000000 Brand: Price: $ 86.50 |
White Fuel Gauge (NLA) | 1 | $ 86.50 | ||
| 6 | 34815-98J00 Nut (NLA)
SKU: 34815-98J00 Weight: 0.100000 Brand: Price: $ 8.17 |
Nut (NLA) | 1 | $ 8.17 | ||
| 7-1 | 34600-98J00 Black Volt Meter (NLA)
SKU: 34600-98J00 Weight: 1.000000 Brand: Price: $ 86.50 |
Black Volt Meter (NLA) | 1 | $ 86.50 | ||
| 7-2 | 34600-98J10 White Volt Meter (NLA)
SKU: 34600-98J10 Weight: 1.000000 Brand: Price: $ 86.50 |
White Volt Meter (NLA) | 1 | $ 86.50 | ||
| 8 | 34815-98J00 Nut (NLA)
SKU: 34815-98J00 Weight: 0.100000 Brand: Price: $ 8.17 |
Nut (NLA) | 1 | $ 8.17 | ||
| 9-1 | 34650-98J00 Black Water Pressure Gauge (NLA)
SKU: 34650-98J00 Weight: 1.000000 Brand: Price: $ 86.50 |
Black Water Pressure Gauge (NLA) | 1 | $ 86.50 | ||
| 9-2 | 34650-98J10 White Water Pressure Gauge (NLA)
SKU: 34650-98J10 Weight: 1.000000 Brand: Price: $ 86.50 |
White Water Pressure Gauge (NLA) | 1 | $ 86.50 | ||
| 10 | 34815-98J00 Nut (NLA)
SKU: 34815-98J00 Weight: 0.100000 Brand: Price: $ 8.17 |
Nut (NLA) | 1 | $ 8.17 | ||
| 11-1 | 34800-98J00 Black Trim Gauge (NLA)
SKU: 34800-98J00 Weight: 1.000000 Brand: Price: $ 86.50 |
Black Trim Gauge (NLA) | 1 | $ 86.50 | ||
| 11-2 | 34800-98J10 White Trim Gauge (NLA)
SKU: 34800-98J10 Weight: 1.000000 Brand: Price: $ 86.50 |
White Trim Gauge (NLA) | 1 | $ 86.50 | ||
| 12 | 34815-98J00 Nut (NLA)
SKU: 34815-98J00 Weight: 0.100000 Brand: Price: $ 8.17 |
Nut (NLA) | 1 | $ 8.17 | ||
| 14 | 34190-95500 Speedometer Sensor (NLA)
SKU: 34190-95500 Weight: 0.100000 Brand: Price: $ 42.08 |
Speedometer Sensor (NLA) | 1 | $ 42.08 | ||
| 15 | 03112-06303 Screw (NLA)
SKU: 03112-06303 Weight: 0.060000 Brand: Price: $ 2.20 |
Screw (NLA) | 2 | $ 2.20 | ||
| 16 | 55127-87D00 Hose Union
SKU: 55127-87D00 Weight: 0.060000 Brand: Price: $ 3.83 |
Hose Union | 1 | $ 3.83 | ||
| 17 | 09355-40805-00B Hose (4x8x2000)
SKU: 09355-40805-00B Weight: 0.260000 Brand: Price: $ 29.37 |
Hose (4x8x2000) | 1 | $ 29.37 | L:2000->1700 | |
| 18 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 2 | $ 2.52 | ||
| 19 | 34970-98J02 Water Pressure Kit
SKU: 34970-98J02 Weight: 1.000000 Brand: Price: $ 168.48 |
Water Pressure Kit | 1 | $ 168.48 | ||
| 20 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 4 | $ 2.09 | ||
| 21 | 34115-98J00 Water Pressure Connector
SKU: 34115-98J00 Weight: 1.000000 Brand: Price: $ 7.14 |
Water Pressure Connector | 1 | $ 7.14 | ||
| 22 | 34960-98J00 Speed Sensor Assembly
SKU: 34960-98J00 Weight: 0.100000 Brand: Price: $ 266.76 |
Speed Sensor Assembly | 1 | $ 266.76 | ||
| 23 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->400 | |
| 24 | 09367-06002 3 Way
SKU: 09367-06002 Weight: 0.060000 Brand: Price: $ 2.65 |
3 Way | 1 | $ 2.65 | ||
| 25 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 26 | 09250-08013 Cap
SKU: 09250-08013 Weight: 0.250000 Brand: Price: $ 1.78 |
Cap | 1 | $ 1.78 | ||
| 27 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.07 |
Water Flush Connector | 1 | $ 10.07 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
