Suzuki DF 300 Parts Listings 2007 to S/N 30002F-11XXXX 2007 to S/N 30002Z-11XXXX

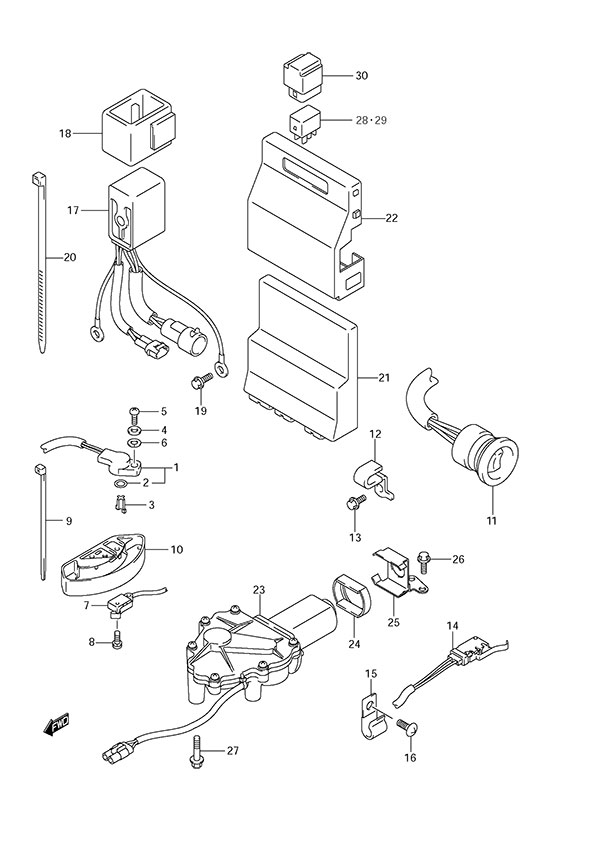

Fig. 26 - PTT Switch/Engine Control Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13580-98J03 Shift Position Sensor Assembly
SKU: 13580-98J03 Weight: 0.100000 Brand: Price: $ 190.66 |
Shift Position Sensor Assembly | 1 | $ 190.66 | ||
| 2 | 13575-40F00 O-Ring
SKU: 13575-40F00 Weight: 0.062500 Brand: Price: $ 4.30 |
O-Ring | 1 | $ 4.30 | ||
| 3 | 37729-96L00 Shift Sensor Lever
SKU: 37729-96L00 Weight: 0.060000 Brand: Price: $ 2.18 |
Shift Sensor Lever | 1 | $ 2.18 | ||
| 4 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 1 | $ 1.70 | ||
| 5 | 07130-05167 BOLT
SKU: 07130-05167 Weight: 0.060000 Brand: Price: $ 2.72 |
BOLT | 1 | $ 2.72 | ||
| 6 | 08321-0105A Lock Washer
SKU: 08321-0105A Weight: 0.125000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | ||
| 7 | 37721-93J00 Neutral Switch Assembly
SKU: 37721-93J00 Weight: 0.250000 Brand: Price: $ 41.14 |
Neutral Switch Assembly | 1 | $ 41.14 | ||
| 8 | 09137-04004 Screw (4x16)
SKU: 09137-04004 Weight: 0.060000 Brand: Price: $ 2.36 |
Screw (4x16) | 2 | $ 2.36 | ||
| 9-1 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 1 | $ 2.52 | ||
| 9-2 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 1 | $ 2.52 | DF300T: S/N 880922 Newer DF300Z: S/N 880430 Newer | |
| 10 | 37725-93J11 Switch Assembly Cover
SKU: 37725-93J11 Weight: 0.125000 Brand: Price: $ 9.56 |
Switch Assembly Cover | 1 | $ 9.56 | ||
| 11 | 37850-99E05 PTT Switch Assembly
SKU: 37850-99E05 Weight: 0.250000 Brand: Price: $ 83.20 |
PTT Switch Assembly | 1 | $ 83.20 | ||
| 12 | 09403-11315 Clamp (NLA)
SKU: 09403-11315 Weight: 0.100000 Brand: Price: $ 3.50 |
Clamp (NLA) | 1 | $ 3.50 | ||
| 14 | 37722-93J14 Tilt Limit Switch Assembly
SKU: 37722-93J14 Weight: 0.000000 Brand: Price: $ 27.93 |
Tilt Limit Switch Assembly | 1 | $ 27.93 | ||
| 15 | 09403-09316 Clamp (NLA)
SKU: 09403-09316 Weight: 0.100000 Brand: Price: $ 1.22 |
Clamp (NLA) | 1 | $ 1.22 | ||
| 16 | 29125-93J00 Screw (NLA)
SKU: 29125-93J00 Weight: 0.100000 Brand: Price: $ 1.92 |
Screw (NLA) | 1 | $ 1.92 | ||
| 17 | 38410-93J12 PTT Relay Assembly
SKU: 38410-93J12 Weight: 0.460000 Brand: Price: $ 136.14 |
PTT Relay Assembly | 1 | $ 136.14 | ||
| 18 | 38415-93J00 PTT Relay Holder
SKU: 38415-93J00 Weight: 0.060000 Brand: Price: $ 6.68 |
PTT Relay Holder | 1 | $ 6.68 | ||
| 19 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 20 | 09407-30401 Clamp
SKU: 09407-30401 Weight: 0.060000 Brand: Price: $ 4.94 |
Clamp | 1 | $ 4.94 | ||
| 21-1 | 33920-98J10 Engine Control Unit
SKU: 33920-98J10 Weight: 2.000000 Brand: Price: $ 2,273.37 |
Engine Control Unit | 1 | $ 2,273.37 | ||
| 21-2 | 33920-98J71 Engine Control Unit
SKU: 33920-98J71 Weight: 2.000000 Brand: Price: $ 2,273.37 |
Engine Control Unit | 1 | $ 2,273.37 | 2008 to 2010 | |
| 21-3 | 33920-98J90 Engine Control Unit
SKU: 33920-98J90 Weight: 2.000000 Brand: Price: $ 2,273.37 |
Engine Control Unit | 1 | $ 2,273.37 | S/N 110001 Newer | |
| 22 | 33925-98J00 ECU Cushion
SKU: 33925-98J00 Weight: 0.100000 Brand: Price: $ 22.02 |
ECU Cushion | 1 | $ 22.02 | ||
| 23 | 38890-98J12 Shift Actuator Assembly
SKU: 38890-98J12 Weight: 4.000000 Brand: Price: $ 676.19 |
Shift Actuator Assembly | 1 | $ 676.19 | ||
| 24 | 38892-98J01 Shift Actuator Damper
SKU: 38892-98J01 Weight: 0.060000 Brand: Price: $ 3.79 |
Shift Actuator Damper | 1 | $ 3.79 | ||
| 25 | 38895-98J00 Shift Actuator Bracket
SKU: 38895-98J00 Weight: 0.250000 Brand: Price: $ 29.65 |
Shift Actuator Bracket | 1 | $ 29.65 | ||
| 26 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 27 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 3 | $ 2.82 | ||
| 28 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 2 | $ 36.31 | Actuator | |
| 29 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | Oxygen Sensor Heater S/N 110001 Newer | |
| 30-1 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 2 | $ 4.39 | ||
| 30-2 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 3 | $ 4.39 | S/N 110001 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
