Suzuki DF 300 Parts Listings 2007 to S/N 30002F-11XXXX 2007 to S/N 30002Z-11XXXX

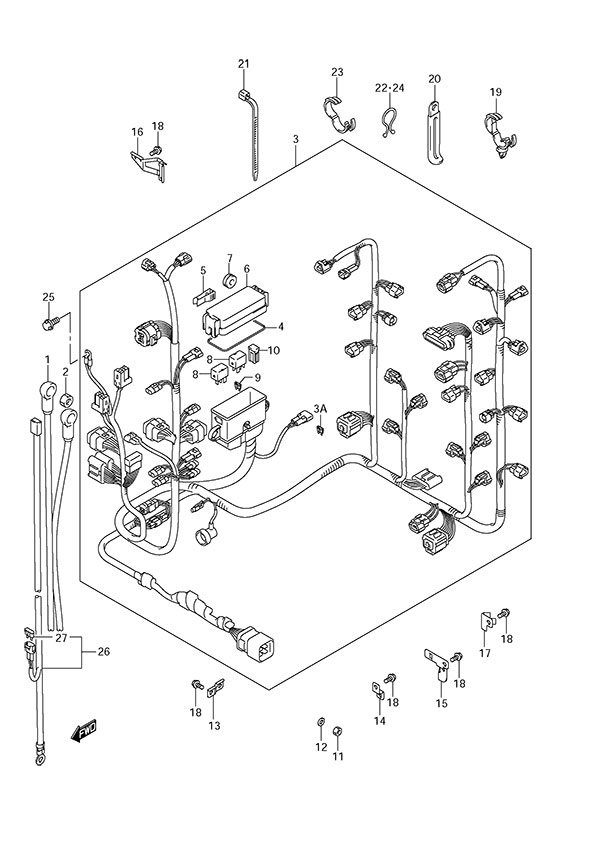

Fig. 25 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-98J01 Starter Motor Cable Assembly
SKU: 33810-98J01 Weight: 5.000000 Brand: Price: $ 306.83 |
Starter Motor Cable Assembly | 1 | $ 306.83 | L:4000 | |
| 2 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 3-1 | 36610-98J02 Wiring Harness Assembly
SKU: 36610-98J02 Weight: 5.000000 Brand: Price: $ 842.80 |
Wiring Harness Assembly | 1 | $ 842.80 | ||
| 3-2 | 36610-98J21 Wiring Harness Assembly
SKU: 36610-98J21 Weight: 5.000000 Brand: Price: $ 919.30 |
Wiring Harness Assembly | 1 | $ 919.30 | DF300T: S/N 880828 Newer DF300Z: S/N 880396 Newer | |
| 3-3 | 36610-98J12 HARNESS ASSY,WI
SKU: 36610-98J12 Weight: 0.000000 Brand: Price: $ 887.77 |
HARNESS ASSY,WI | 1 | $ 887.77 | 2009 to 2010 | |
| 3-4 | 36610-98J32 Wiring Harness Assembly
SKU: 36610-98J32 Weight: 5.000000 Brand: Price: $ 1,350.06 |
Wiring Harness Assembly | 1 | $ 1,350.06 | S/N 110001 Newer | |
| 3A-1 | 09481-10501 10 Amp Fuse
SKU: 09481-10501 Weight: 0.062500 Brand: Price: $ 2.06 |
10 Amp Fuse | 2 | $ 2.06 | ||
| 3A-2 | 09481-15501 15 Amp Fuse
SKU: 09481-15501 Weight: 0.060000 Brand: Price: $ 2.06 |
15 Amp Fuse | 1 | $ 2.06 | S/N 110001 Newer | |
| 4 | 36721-96J00 Upper Cover O-Ring
SKU: 36721-96J00 Weight: 0.060000 Brand: Price: $ 11.89 |
Upper Cover O-Ring | 1 | $ 11.89 | ||
| 5 | 36737-96J00 Fuse Puller (NLA)
SKU: 36737-96J00 Weight: 0.060000 Brand: Price: $ 4.01 |
Fuse Puller (NLA) | 1 | $ 4.01 | ||
| 6 | 36738-98J00 Fuse Case Upper Cover
SKU: 36738-98J00 Weight: 0.060000 Brand: Price: $ 18.07 |
Fuse Case Upper Cover | 1 | $ 18.07 | ||
| 7 | 09320-08510 Cushion (8.5x20x8)
SKU: 09320-08510 Weight: 0.060000 Brand: Price: $ 1.71 |
Cushion (8.5x20x8) | 1 | $ 1.71 | ||
| 8-1 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | Control Unit | |
| 8-2 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | Starter Motor | |
| 9-1 | 09481-15501 15 Amp Fuse
SKU: 09481-15501 Weight: 0.060000 Brand: Price: $ 2.06 |
15 Amp Fuse | 3 | $ 2.06 | ||
| 9-2 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.33 |
30 Amp Fuse | 3 | $ 2.33 | ||
| 10-1 | 09481-40401 40 Amp Fuse
SKU: 09481-40401 Weight: 0.060000 Brand: Price: $ 6.92 |
40 Amp Fuse | 1 | $ 6.92 | ||
| 10-2 | 09481-60401 60 Amp Fuse
SKU: 09481-60401 Weight: 0.060000 Brand: Price: $ 6.71 |
60 Amp Fuse | 2 | $ 6.71 | ||
| 11 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 1 | $ 1.85 | Relay Fuse Box | |
| 12 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Lock Washer | 1 | $ 1.85 | Relay Fuse Box | |
| 13 | 36617-93J00 Harness Bracket
SKU: 36617-93J00 Weight: 0.125000 Brand: Price: $ 2.05 |
Harness Bracket | 3 | $ 2.05 | ||
| 14-1 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.00 |
Harness Bracket | 5 | $ 2.00 | ||
| 14-2 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.00 |
Harness Bracket | 7 | $ 2.00 | DF300T: S/N 880828 Newer DF300Z: S/N 880396 Newer | |
| 15 | 36617-93J20 Harness Bracket
SKU: 36617-93J20 Weight: 0.400000 Brand: Price: $ 5.65 |
Harness Bracket | 1 | $ 5.65 | ||
| 16 | 36617-93J30 Harness Bracket (NLA)
SKU: 36617-93J30 Weight: 0.080000 Brand: Price: $ 7.22 |
Harness Bracket (NLA) | 1 | $ 7.22 | ||
| 17 | 36617-98J00 Harness Bracket (NLA)
SKU: 36617-98J00 Weight: 0.060000 Brand: Price: $ 5.92 |
Harness Bracket (NLA) | 1 | $ 5.92 | ||
| 18-1 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 12 | $ 2.33 | ||
| 18-2 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 14 | $ 2.33 | DF300T: S/N 880828 Newer DF300Z: S/N 880396 Newer | |
| 19 | 09403-20308 Clip
SKU: 09403-20308 Weight: 0.060000 Brand: Price: $ 3.61 |
Clip | 1 | $ 3.61 | ||
| 21 | 09407-18402 Clamp (L:165)
SKU: 09407-18402 Weight: 0.060000 Brand: Price: $ 2.21 |
Clamp (L:165) | 4 | $ 2.21 | ||
| 22 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.13 |
Clamp | 2 | $ 2.13 | ||
| 23 | 09408-00184 Clamp
SKU: 09408-00184 Weight: 0.125000 Brand: Price: $ 2.95 |
Clamp | 4 | $ 2.95 | ||
| 24 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.13 |
Clamp | 1 | $ 2.13 | Fuel Pump Lead | |
| 25 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 26 | 36625-98J00 Battery Wire Assembly
SKU: 36625-98J00 Weight: 0.400000 Brand: Price: $ 66.54 |
Battery Wire Assembly | 1 | $ 66.54 | Optional | |
| 27 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.33 |
30 Amp Fuse | 1 | $ 2.33 | Optional |
