Suzuki DF 300 Parts Listings 2007 to S/N 30002F-11XXXX 2007 to S/N 30002Z-11XXXX

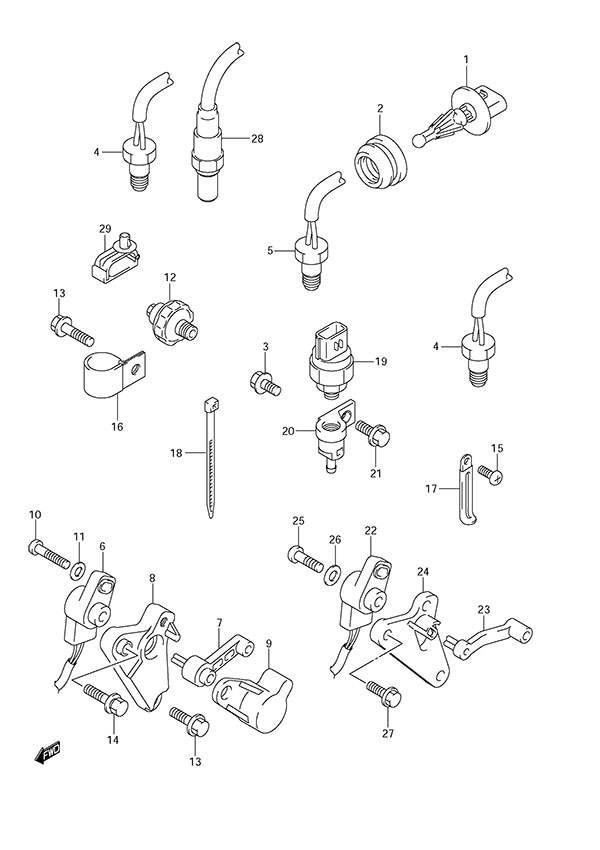

Fig. 24 - Sensor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13650-52G00 Inlet Air Temp Sensor
SKU: 13650-52G00 Weight: 0.060000 Brand: Price: $ 117.32 |
Inlet Air Temp Sensor | 1 | $ 117.32 | ||
| 2 | 13655-87J01 Air Temp Sensor Grommet
SKU: 13655-87J01 Weight: 0.125000 Brand: Price: $ 3.01 |
Air Temp Sensor Grommet | 1 | $ 3.01 | ||
| 3 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.12 |
Bolt (6x12) | 1 | $ 2.12 | PTT Motor Lead Clamp | |
| 4 | 34830-87J20 Temp Sensor Assy
SKU: 34830-87J20 Weight: 0.060000 Brand: Price: $ 74.07 |
Temp Sensor Assy | 2 | $ 74.07 | Exhaust Temp | |
| 5 | 34830-87J20 Temp Sensor Assy
SKU: 34830-87J20 Weight: 0.060000 Brand: Price: $ 74.07 |
Temp Sensor Assy | 1 | $ 74.07 | Cylinder Temp | |
| 6 | 34840-98J03 Trim Sensor Assembly
SKU: 34840-98J03 Weight: 0.150000 Brand: Price: $ 184.47 |
Trim Sensor Assembly | 1 | $ 184.47 | ||
| 7 | 34841-98J00 Trim Sensor Lever
SKU: 34841-98J00 Weight: 0.060000 Brand: Price: $ 6.89 |
Trim Sensor Lever | 1 | $ 6.89 | 2010 Older | |
| 8 | 34845-98J00 Trim Sensor Bracket
SKU: 34845-98J00 Weight: 0.100000 Brand: Price: $ 18.72 |
Trim Sensor Bracket | 1 | $ 18.72 | 2010 Older | |
| 9 | 34846-98J00 Trim Sensor Lever Bracket
SKU: 34846-98J00 Weight: 0.100000 Brand: Price: $ 12.03 |
Trim Sensor Lever Bracket | 1 | $ 12.03 | 2010 Older | |
| 10 | 34847-98J00 Trim Sensor Screw
SKU: 34847-98J00 Weight: 0.100000 Brand: Price: $ 1.84 |
Trim Sensor Screw | 1 | $ 1.84 | 2010 Older | |
| 11 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.76 |
Washer (5.5x10x0.8) | 1 | $ 1.76 | 2010 Older | |
| 12 | 37820-99E02 Oil Pressure Switch
SKU: 37820-99E02 Weight: 0.125000 Brand: Price: $ 24.95 |
Oil Pressure Switch | 1 | $ 24.95 | ||
| 13 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 1 | $ 2.45 | 2010 Older | |
| 14 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.87 |
Bolt (6x25) | 1 | $ 2.87 | 2010 Older | |
| 15 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 2.07 |
Screw (6x10) | 1 | $ 2.07 | ||
| 16 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.55 |
CLAMP | 1 | $ 5.55 | ||
| 17 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.62 |
Clamp (L:65) | 1 | $ 1.62 | ||
| 18 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.25 |
Clamp (L:140) | 2 | $ 3.25 | ||
| 19 | 34960-98J00 Speed Sensor Assembly
SKU: 34960-98J00 Weight: 0.100000 Brand: Price: $ 266.76 |
Speed Sensor Assembly | 1 | $ 266.76 | ||
| 20 | 34115-98J00 Water Pressure Connector
SKU: 34115-98J00 Weight: 1.000000 Brand: Price: $ 7.38 |
Water Pressure Connector | 1 | $ 7.38 | ||
| 21 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 1 | $ 2.45 | ||
| 22 | 34840-98J03 Trim Sensor Assembly
SKU: 34840-98J03 Weight: 0.150000 Brand: Price: $ 184.47 |
Trim Sensor Assembly | 1 | $ 184.47 | ||
| 23 | 34841-88L01 Trim Sensor Lever
SKU: 34841-88L01 Weight: 0.060000 Brand: Price: $ 5.14 |
Trim Sensor Lever | 1 | $ 5.14 | S/N 110001 Newer | |
| 24 | 34845-88L02 Trim Sender Bracket
SKU: 34845-88L02 Weight: 0.250000 Brand: Price: $ 9.87 |
Trim Sender Bracket | 1 | $ 9.87 | S/N 110001 Newer | |
| 25 | 09136-05041 Screw (5x20)
SKU: 09136-05041 Weight: 0.060000 Brand: Price: $ 2.08 |
Screw (5x20) | 1 | $ 2.08 | S/N 110001 Newer | |
| 26 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.76 |
Washer (5.5x10x0.8) | 1 | $ 1.76 | S/N 110001 Newer | |
| 27 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 2 | $ 2.45 | S/N 110001 Newer | |
| 28 | 18213-98J30 Oxygen Sensor
SKU: 18213-98J30 Weight: 0.250000 Brand: Price: $ 247.98 |
Oxygen Sensor | 1 | $ 247.98 | S/N 110001 Newer | |
| 29 | 09403-07340 Clamp
SKU: 09403-07340 Weight: 0.100000 Brand: Price: $ 4.10 |
Clamp | 1 | $ 4.10 | S/N 110001 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
