Suzuki DF 300 Parts Listings 2007 to S/N 30002F-11XXXX 2007 to S/N 30002Z-11XXXX

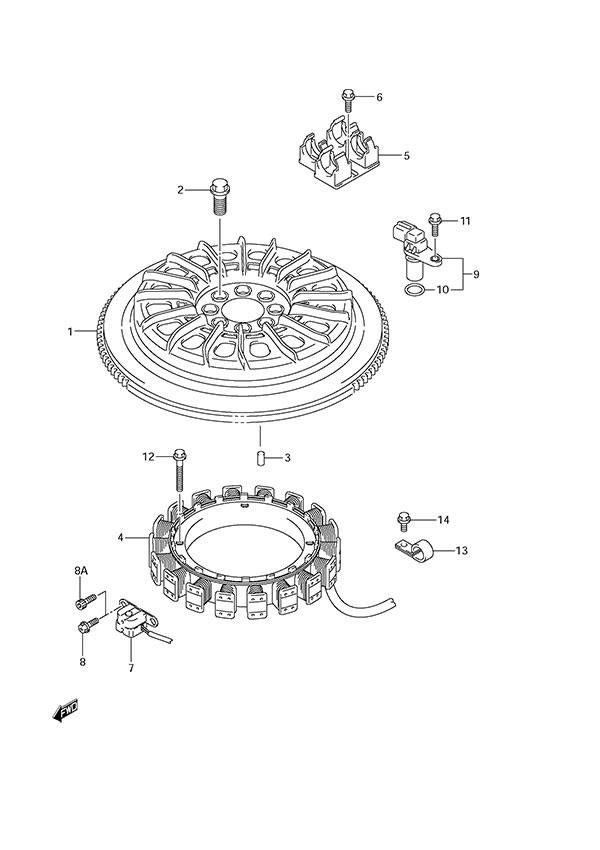

Fig. 22 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 32102-93J20 Flywheel
SKU: 32102-93J20 Weight: 18.000000 Brand: Price: $ 825.53 |
Flywheel | 1 | $ 825.53 | ||
| 1-2 | 32102-98J20 FLYWHEEL COMP,M
SKU: 32102-98J20 Weight: 0.000000 Brand: Price: $ 869.59 |
FLYWHEEL COMP,M | 1 | $ 869.59 | S/N 110001 Newer | |
| 2 | 09103-12071 Flywheel Bolt (12x26)
SKU: 09103-12071 Weight: 0.100000 Brand: Price: $ 3.42 |
Flywheel Bolt (12x26) | 8 | $ 3.42 | ||
| 3 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 1 | $ 2.07 | ||
| 4 | 32120-93J10 COIL,BATTERY CH
SKU: 32120-93J10 Weight: 0.000000 Brand: Price: $ 459.49 |
COIL,BATTERY CH | 1 | $ 459.49 | ||
| 5 | 32131-93J00 Stator Connector Holder (NLA)
SKU: 32131-93J00 Weight: 0.100000 Brand: Price: $ 6.48 |
Stator Connector Holder (NLA) | 1 | $ 6.48 | ||
| 6 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 7-1 | 32160-87L01 CKP/Ignition Timimg Coil
SKU: 32160-87L01 Weight: 0.120000 Brand: Price: $ 96.82 |
CKP/Ignition Timimg Coil | 1 | $ 96.82 | ||
| 7-2 | 32160-88L01 CKP/Ignition Timimg Coil
SKU: 32160-88L01 Weight: 0.120000 Brand: Price: $ 96.82 |
CKP/Ignition Timimg Coil | 1 | $ 96.82 | S/N 110001 Newer | |
| 8 | 02162-05167 BOLT
SKU: 02162-05167 Weight: 0.060000 Brand: Price: $ 2.06 |
BOLT | 2 | $ 2.06 | DF300T: S/N 980662 Older DF300Z: S/N 980241 Older | |
| 8A | 09106-05030 Bolt (5x10)
SKU: 09106-05030 Weight: 0.060000 Brand: Price: $ 2.62 |
Bolt (5x10) | 2 | $ 2.62 | DF300T: S/N 980663 Newer DF300Z: S/N 980242 Newer | |
| 9 | 33220-98J00 Cam Position Sensor
SKU: 33220-98J00 Weight: 0.250000 Brand: Price: $ 117.17 |
Cam Position Sensor | 3 | $ 117.17 | ||
| 10 | 33221-42F00 O-Ring
SKU: 33221-42F00 Weight: 0.100000 Brand: Price: $ 6.88 |
O-Ring | 3 | $ 6.88 | ||
| 11 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 12 | 09103-06231 Bolt (6x35)
SKU: 09103-06231 Weight: 0.060000 Brand: Price: $ 2.81 |
Bolt (6x35) | 4 | $ 2.81 | ||
| 13 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 2 | $ 5.28 | ||
| 14 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
