Suzuki DF 300 Parts Listings 2007 to S/N 30002Z-11XXXX

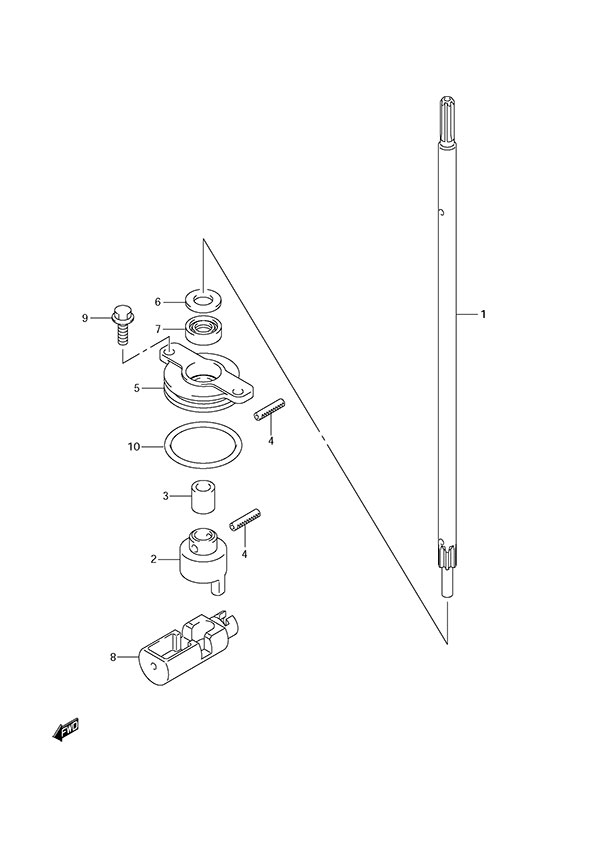

Fig. 18 - Clutch Rod Counter Rotation
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 25111-98J00 Shift Rod (L, X)
SKU: 25111-98J00 Weight: 0.100000 Brand: Price: $ 100.54 |
Shift Rod (L, X) | 1 | $ 100.54 | ||
| 1-2 | 25111-98J10 Shift Rod (XX)
SKU: 25111-98J10 Weight: 0.500000 Brand: Price: $ 110.69 |
Shift Rod (XX) | 1 | $ 110.69 | ||
| 2 | 25131-98J00 Shifter Yoke
SKU: 25131-98J00 Weight: 0.200000 Brand: Price: $ 154.27 |
Shifter Yoke | 1 | $ 154.27 | ||
| 3 | 25232-90J00 Gear Case Magnet
SKU: 25232-90J00 Weight: 0.100000 Brand: Price: $ 6.49 |
Gear Case Magnet | 1 | $ 6.49 | ||
| 4 | 09205-04002 Spring Pin (4x20)
SKU: 09205-04002 Weight: 0.060000 Brand: Price: $ 1.26 |
Spring Pin (4x20) | 2 | $ 1.26 | ||
| 5 | 25141-98J01 Shift Rod Guide Housing
SKU: 25141-98J01 Weight: 0.060000 Brand: Price: $ 12.33 |
Shift Rod Guide Housing | 1 | $ 12.33 | ||
| 6 | 25222-90J01 Shift Guide Cover Seal
SKU: 25222-90J01 Weight: 0.060000 Brand: Price: $ 1.57 |
Shift Guide Cover Seal | 1 | $ 1.57 | ||
| 7 | 09283-10011 Oil Seal (10x22x8)
SKU: 09283-10011 Weight: 0.060000 Brand: Price: $ 5.87 |
Oil Seal (10x22x8) | 1 | $ 5.87 | ||
| 8 | 25321-98J00 Horizontal Shift Slider
SKU: 25321-98J00 Weight: 0.200000 Brand: Price: $ 164.92 |
Horizontal Shift Slider | 1 | $ 164.92 | ||
| 9 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 2 | $ 2.55 | ||
| 10 | 09280-40019 O-Ring
SKU: 09280-40019 Weight: 0.060000 Brand: Price: $ 5.87 |
O-Ring | 1 | $ 5.87 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
