Suzuki DF 300 Parts Listings 2007 to S/N 30002F-11XXXX 2007 to S/N 30002Z-11XXXX

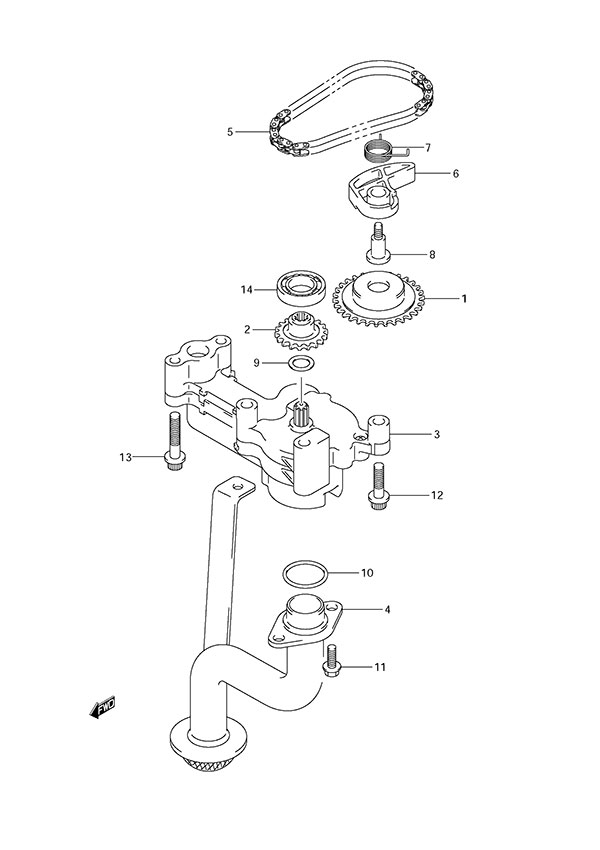

Fig. 14 - Oil Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12632-93J11 Oil Pump Drive Sprocket
SKU: 12632-93J11 Weight: 0.500000 Brand: Price: $ 57.66 |
Oil Pump Drive Sprocket | 1 | $ 57.66 | ||
| 2 | 16113-93J10 Oil Pump Driven Sprocket
SKU: 16113-93J10 Weight: 0.500000 Brand: Price: $ 32.71 |
Oil Pump Driven Sprocket | 1 | $ 32.71 | ||
| 3-1 | 16400-93J20 Oil Pump Assembly
SKU: 16400-93J20 Weight: 5.000000 Brand: Price: $ 171.49 |
Oil Pump Assembly | 1 | $ 171.49 | Requires Ref# 13-3 | |
| 3-2 | 16400-93J20 Oil Pump Assembly
SKU: 16400-93J20 Weight: 5.000000 Brand: Price: $ 171.49 |
Oil Pump Assembly | 1 | $ 171.49 | DF300F: S/N 881419 Newer DF300Z: S/N 880619 Newer | |
| 4 | 16520-93J00 Oil Pump Strainer
SKU: 16520-93J00 Weight: 1.000000 Brand: Price: $ 44.63 |
Oil Pump Strainer | 1 | $ 44.63 | ||
| 5 | 16760-93J00 Oil Pump Chain
SKU: 16760-93J00 Weight: 0.100000 Brand: Price: $ 40.72 |
Oil Pump Chain | 1 | $ 40.72 | ||
| 6 | 16781-93J00 Oil Pump Chain Tensioner
SKU: 16781-93J00 Weight: 0.100000 Brand: Price: $ 22.12 |
Oil Pump Chain Tensioner | 1 | $ 22.12 | ||
| 7 | 16782-93J00 Oil Pump Tensioner Spring
SKU: 16782-93J00 Weight: 0.060000 Brand: Price: $ 8.02 |
Oil Pump Tensioner Spring | 1 | $ 8.02 | ||
| 8 | 16783-93J01 Oil Pump Tensioner Bolt
SKU: 16783-93J01 Weight: 0.060000 Brand: Price: $ 5.79 |
Oil Pump Tensioner Bolt | 1 | $ 5.79 | ||
| 9 | 09181-12158 Washer (12x20x0.5)
SKU: 09181-12158 Weight: 0.100000 Brand: Price: $ 2.27 |
Washer (12x20x0.5) | 1 | $ 2.27 | ||
| 10 | 09280-22020 O-Ring
SKU: 09280-22020 Weight: 0.060000 Brand: Price: $ 3.39 |
O-Ring | 2 | $ 3.39 | ||
| 11 | 01550-0616A BOLT
SKU: 01550-0616A Weight: 0.100000 Brand: Price: $ 1.97 |
BOLT | 3 | $ 1.97 | ||
| 12 | 01550-0845A BOLT
SKU: 01550-0845A Weight: 0.060000 Brand: Price: $ 3.19 |
BOLT | 1 | $ 3.19 | ||
| 13-1 | 01550-0865A BOLT
SKU: 01550-0865A Weight: 0.060000 Brand: Price: $ 3.56 |
BOLT | 4 | $ 3.56 | ||
| 13-2 | 01550-0865A BOLT
SKU: 01550-0865A Weight: 0.060000 Brand: Price: $ 3.56 |
BOLT | 3 | $ 3.56 | DF300F: S/N 881419 Newer DF300Z: S/N 880619 Newer | |
| 13-3 | 01550-0885A BOLT
SKU: 01550-0885A Weight: 0.100000 Brand: Price: $ 3.61 |
BOLT | 1 | $ 3.61 | DF300F: S/N 881419 Newer DF300Z: S/N 880619 Newer | |
| 14 | 08110-60020 B1 15X32X9 BEAR
SKU: 08110-60020 Weight: 0.200000 Brand: Price: $ 16.29 |
B1 15X32X9 BEAR | 1 | $ 16.29 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
