Suzuki DF 300 Parts Listings 2007 to S/N 30002F-11XXXX 2007 to S/N 30002Z-11XXXX

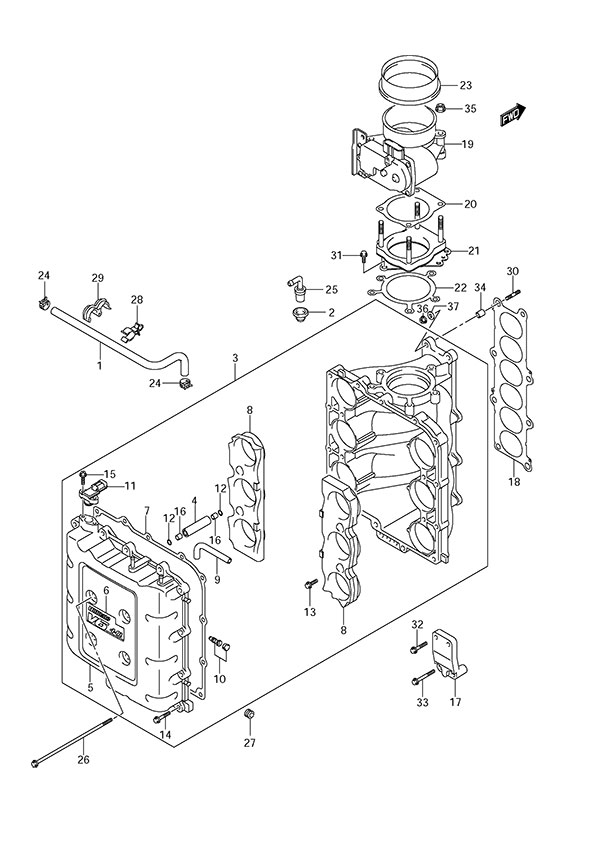

Fig. 13 - Throttle Body

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 11193-98J00 PVC Hose 1 $ 14.48
2 11198-58B00 PCV Valve Seal 1 $ 4.84
3 13100-98J01 Collector Assembly (NLA) 1 $ 1,488.90

Not Available

4 13137-98J00 Collector Spacer 4 $ 37.96

Not Available

5 13140-98J01 Collector Cover 1 $ 421.08

Not Available

6 61436-98J00 Emblem Mark V6 (4.0L) 1 $ 13.81
7 13147-98J00 Collector Cover Gasket 1 $ 75.78
8 13180-98J01 Collector Funnel 2 $ 69.51
9 13312-98J00 Bypass Air Hose (NLA) 1 $ 4.29

Not Available

2007
10 13350-99E00 Bypass Air Screw Set 1 $ 8.78
11 18590-68H00 MAP Sensor 1 $ 297.49
MAP Sensor
12 09280-10009 O-Ring 8 $ 1.99
13 01550-08167 BOLT 4 $ 2.84
14 01550-08357 BOLT 11 $ 3.54
15 02162-05207 SCREW 2 $ 1.95
16 04211-11129 11 X 12 DOWEL P 8 $ 1.78
17 13134-98J00 Collector Bracket 1 $ 53.49
18 13139-98J01 Collector Gasket 1 $ 32.72
19 13310-98J01 Throttle Body Assembly 1 $ 848.38
20 13343-98J10 Throttle Body Gasket 1 $ 57.36
21 13315-98J00 Throttle Body Damper 1 $ 183.22
22 13421-98L00 GASKET,THROTLE 1 $ 9.36
23 13813-98J01 GROMMET,THROTTL 1 $ 10.37
24 09401-14409 Clip 2 $ 1.58
25 18118-93J00 PCV Valve 1 $ 20.79
26 09103-08370 Bolt (8x250) 6 $ 14.02
27 09320-08517 CUSHION,CABLE H 4 $ 4.47
28 09403-13310 Clamp 1 $ 2.50

Not Available

29 09408-00201 Clamp (NLA) 1 $ 3.02

Not Available

30 01421-08357 BOLT,STUD 2 $ 4.62
31 01550-08167 BOLT 5 $ 2.84
32 01550-08357 BOLT 2 $ 3.54
33 01550-08607 BOLT 2 $ 3.82
34 04211-11129 11 X 12 DOWEL P 2 $ 1.78
35 09159-08136 Nut 4 $ 2.72
36 08316-10087 Nut 2 $ 2.27
37 09160-08161 Washer (8.2x23x3.2) (NLA) 2 $ 4.50

Not Available


Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
