Suzuki DF 300 Parts Listings 2007 to S/N 30002F-11XXXX 2007 to S/N 30002Z-11XXXX

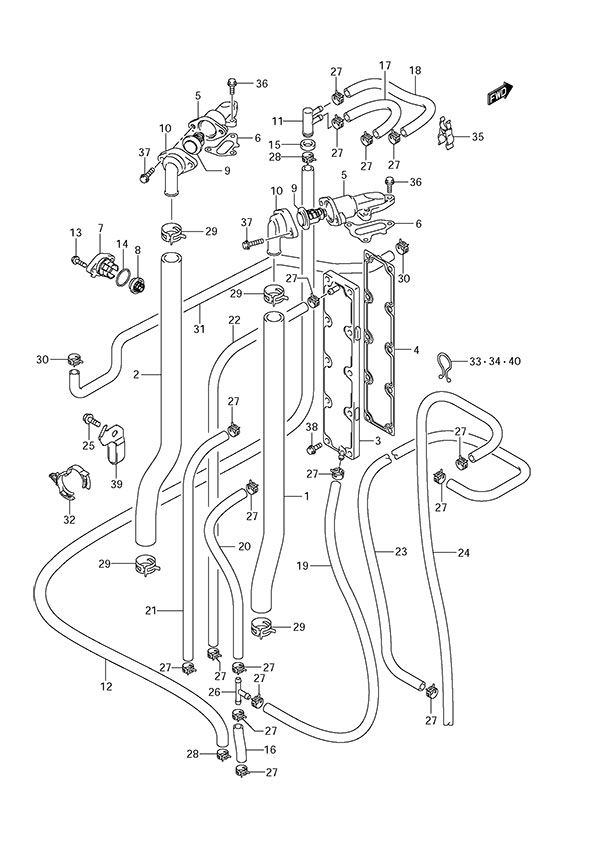

Fig. 12 - Thermostat
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11196-93J00 Water Return Hose
SKU: 11196-93J00 Weight: 1.000000 Brand: Price: $ 16.44 |
Water Return Hose | 1 | $ 16.44 | Starboard | |
| 2 | 11197-93J00 Water Return Hose
SKU: 11197-93J00 Weight: 1.000000 Brand: Price: $ 16.44 |
Water Return Hose | 1 | $ 16.44 | Port | |
| 3 | 11270-93J00 Cylinder Block Water Jacket Plate
SKU: 11270-93J00 Weight: 0.500000 Brand: Price: $ 134.12 |
Cylinder Block Water Jacket Plate | 1 | $ 134.12 | ||
| 4 | 11272-93J00 Cylinder Block Plate Gasket
SKU: 11272-93J00 Weight: 0.060000 Brand: Price: $ 7.36 |
Cylinder Block Plate Gasket | 1 | $ 7.36 | ||
| 5 | 17581-93J00 Water Outlet Pipe
SKU: 17581-93J00 Weight: 0.250000 Brand: Price: $ 41.30 |
Water Outlet Pipe | 2 | $ 41.30 | ||
| 6 | 17582-93J00 Water Outlet Pipe Gasket
SKU: 17582-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Water Outlet Pipe Gasket | 2 | $ 2.55 | ||
| 7 | 17611-90J00 Water Pressure Valve Cover
SKU: 17611-90J00 Weight: 0.200000 Brand: Price: $ 34.00 |
Water Pressure Valve Cover | 1 | $ 34.00 | ||
| 8 | 17660-99E01 Water Pressure Valve
SKU: 17660-99E01 Weight: 0.125000 Brand: Price: $ 17.21 |
Water Pressure Valve | 1 | $ 17.21 | ||
| 9-1 | 17670-90J01 Thermostat (60c)
SKU: 17670-90J01 Weight: 0.250000 Brand: Price: $ 62.65 |
Thermostat (60c) | 2 | $ 62.65 | Standard | |
| 9-2 | 17670-90J11 Thermostat (71c)
SKU: 17670-90J11 Weight: 0.120000 Brand: Price: $ 62.65 |
Thermostat (71c) | 2 | $ 62.65 | Optional | |
| 10 | 17681-93J00 Thermostat Cover
SKU: 17681-93J00 Weight: 0.180000 Brand: Price: $ 21.38 |
Thermostat Cover | 2 | $ 21.38 | ||
| 11 | 17711-90J00 Water Hose 3 Way
SKU: 17711-90J00 Weight: 0.060000 Brand: Price: $ 4.14 |
Water Hose 3 Way | 1 | $ 4.14 | ||
| 12 | 17712-93J01 HOSE,WATER(3 WA
SKU: 17712-93J01 Weight: 0.000000 Brand: Price: $ 17.00 |
HOSE,WATER(3 WA | 1 | $ 17.00 | 3 Way to E/H Cover | |
| 13 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 14 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 15 | 09320-12093 CUSHION
SKU: 09320-12093 Weight: 0.000000 Brand: Price: $ 1.55 |
CUSHION | 1 | $ 1.55 | ||
| 16 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | E/H Cover to 3 Way L:600->60 | |
| 17 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Cooler to 3 Way L:600->120 | |
| 18 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Case to 3 Way L:600->190 | |
| 19 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 3 Way to Block L:600->300 | |
| 20 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 3 Way to Intake Manifold L:600->330 | |
| 21 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Intake Manifold to E/H Cover | |
| 22 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Block to E/H Cover | |
| 23 | 09352-50006-00B Hose (5x9x2000)
SKU: 09352-50006-00B Weight: 0.250000 Brand: Price: $ 17.89 |
Hose (5x9x2000) | 1 | $ 17.89 | Oil Pan to Case L:2000->850 | |
| 24 | 09352-50006-00B Hose (5x9x2000)
SKU: 09352-50006-00B Weight: 0.250000 Brand: Price: $ 17.89 |
Hose (5x9x2000) | 1 | $ 17.89 | E/H Cover to Cooler L:2000->1010 | |
| 25 | 01550-08127 BOLT 8 X 12
SKU: 01550-08127 Weight: 0.100000 Brand: Price: $ 2.84 |
BOLT 8 X 12 | 1 | $ 2.84 | ||
| 26 | 09367-06002 3 Way
SKU: 09367-06002 Weight: 0.060000 Brand: Price: $ 2.65 |
3 Way | 1 | $ 2.65 | ||
| 27 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 18 | $ 2.09 | ||
| 28 | 09401-14409 Clip
SKU: 09401-14409 Weight: 0.200000 Brand: Price: $ 1.58 |
Clip | 2 | $ 1.58 | ||
| 29 | 09401-25406 Clip
SKU: 09401-25406 Weight: 0.060000 Brand: Price: $ 3.57 |
Clip | 4 | $ 3.57 | ||
| 30 | 09401-15414 Clip
SKU: 09401-15414 Weight: 0.062500 Brand: Price: $ 2.34 |
Clip | 2 | $ 2.34 | ||
| 31 | 17915-98J02 HOSE,WATER FLUS
SKU: 17915-98J02 Weight: 0.000000 Brand: Price: $ 20.80 |
HOSE,WATER FLUS | 1 | $ 20.80 | ||
| 32 | 09403-25304 Clamp (NLA)
SKU: 09403-25304 Weight: 0.100000 Brand: Price: $ 1.57 |
Clamp (NLA) | 1 | $ 1.57 | ||
| 33 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.13 |
Clamp | 1 | $ 2.13 | ||
| 34 | 09408-00024 Clamp
SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.52 |
Clamp | 1 | $ 1.52 | ||
| 35 | 09408-00056 Clip
SKU: 09408-00056 Weight: 0.100000 Brand: Price: $ 2.67 |
Clip | 1 | $ 2.67 | ||
| 36 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 6 | $ 2.33 | ||
| 37 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 38 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 10 | $ 2.33 | ||
| 39 | 17713-98J01 HOLDER,WATER HO
SKU: 17713-98J01 Weight: 0.000000 Brand: Price: $ 4.94 |
HOLDER,WATER HO | 1 | $ 4.94 | ||
| 40 | 09408-00021 Clamp (NLA)
SKU: 09408-00021 Weight: 0.100000 Brand: Price: $ 0.85 |
Clamp (NLA) | 1 | $ 0.85 | 2008 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
