Suzuki DF 225 Parts Listings - 2022
S/N 22503F-240001 to 22503F-24XXXX
S/N 22503Z-240001 to 22503Z-24XXXX

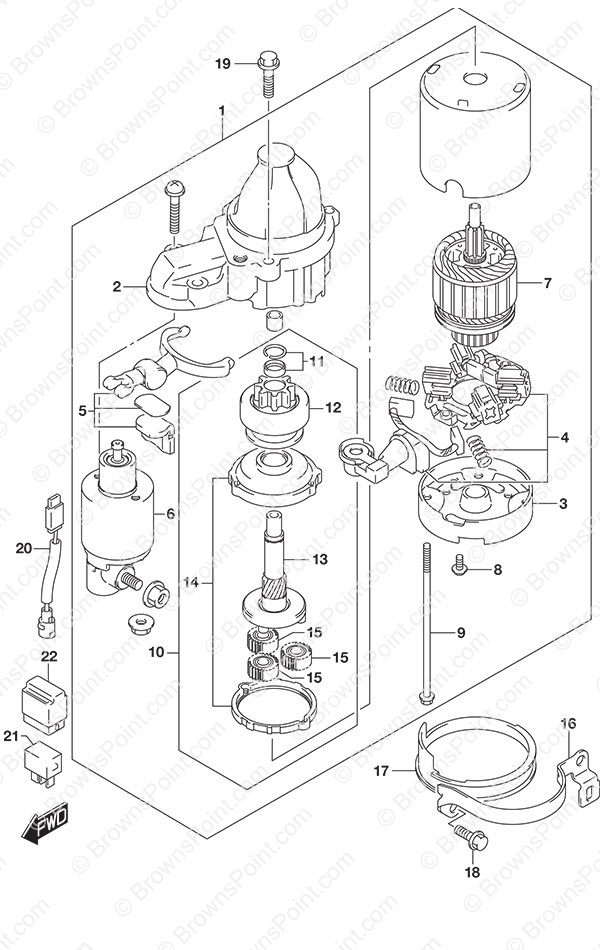

Fig. 301 - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31100-98L10 Starter Motor Assembly
SKU: 31100-98L10 Weight: 7.000000 Brand: Price: $ 911.82 |
Starter Motor Assembly | 1 | $ 911.82 | ||
| 2 | 31150-98L00 Gear Case
SKU: 31150-98L00 Weight: 1.000000 Brand: Price: $ 143.75 |
Gear Case | 1 | $ 143.75 | ||
| 3 | 31170-92J00 Rear Housing
SKU: 31170-92J00 Weight: 0.500000 Brand: Price: $ 24.19 |
Rear Housing | 1 | $ 24.19 | ||
| 4 | 31173-98L00 Brush Holder Assembly
SKU: 31173-98L00 Weight: 0.500000 Brand: Price: $ 105.88 |
Brush Holder Assembly | 1 | $ 105.88 | ||
| 5 | 31191-63J00 Lever Assembly
SKU: 31191-63J00 Weight: 0.250000 Brand: Price: $ 12.15 |
Lever Assembly | 1 | $ 12.15 | ||
| 6 | 31220-98L00 Switch Assembly
SKU: 31220-98L00 Weight: 0.500000 Brand: Price: $ 171.93 |
Switch Assembly | 1 | $ 171.93 | ||
| 7 | 31311-63J00 Armature
SKU: 31311-63J00 Weight: 0.500000 Brand: Price: $ 238.32 |
Armature | 1 | $ 238.32 | ||
| 8 | 31192-92J00 Screw Set
SKU: 31192-92J00 Weight: 0.060000 Brand: Price: $ 6.44 |
Screw Set | 1 | $ 6.44 | ||
| 9 | 31261-75F10 Through Bolt
SKU: 31261-75F10 Weight: 0.060000 Brand: Price: $ 0.00 |
Through Bolt | 2 | $ 0.00 | ||
| 10 | 31340-98L00 Starting Motor Clutch Set
SKU: 31340-98L00 Weight: 1.000000 Brand: Price: $ 360.31 |
Starting Motor Clutch Set | 1 | $ 360.31 | ||
| 11 | 31313-86030 Stopper Set
SKU: 31313-86030 Weight: 0.060000 Brand: Price: $ 0.00 |
Stopper Set | 1 | $ 0.00 | ||
| 12 | 31320-98L00 Pinion Assembly
SKU: 31320-98L00 Weight: 0.500000 Brand: Price: $ 215.78 |
Pinion Assembly | 1 | $ 215.78 | ||
| 13 | 31341-98L00 Pinion Shaft
SKU: 31341-98L00 Weight: 0.250000 Brand: Price: $ 105.88 |
Pinion Shaft | 1 | $ 105.88 | ||
| 14 | 31343-63J00 Internal Gear
SKU: 31343-63J00 Weight: 0.060000 Brand: Price: $ 0.00 |
Internal Gear | 1 | $ 0.00 | ||
| 15 | 31344-63J00 Planetary Gear
SKU: 31344-63J00 Weight: 0.125000 Brand: Price: $ 0.00 |
Planetary Gear | 3 | $ 0.00 | ||
| 16 | 31912-93J01 Starting Motor Band
SKU: 31912-93J01 Weight: 0.100000 Brand: Price: $ 7.47 |
Starting Motor Band | 1 | $ 7.47 | ||
| 17 | 31918-92J01 Lower Damper
SKU: 31918-92J01 Weight: 0.060000 Brand: Price: $ 7.72 |
Lower Damper | 1 | $ 7.72 | ||
| 18 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 19 | 01550-08307 BOLT
SKU: 01550-08307 Weight: 0.060000 Brand: Price: $ 3.59 |
BOLT | 2 | $ 3.59 | ||
| 20 | 36645-93J00 Wire Lead
SKU: 36645-93J00 Weight: 0.100000 Brand: Price: $ 10.86 |
Wire Lead | 1 | $ 10.86 | ||
| 21 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | ||
| 22 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 1 | $ 4.39 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
