Suzuki DF 225 Parts Listings - 2022
S/N 22503F-240001 to 22503F-24XXXX
S/N 22503Z-240001 to 22503Z-24XXXX

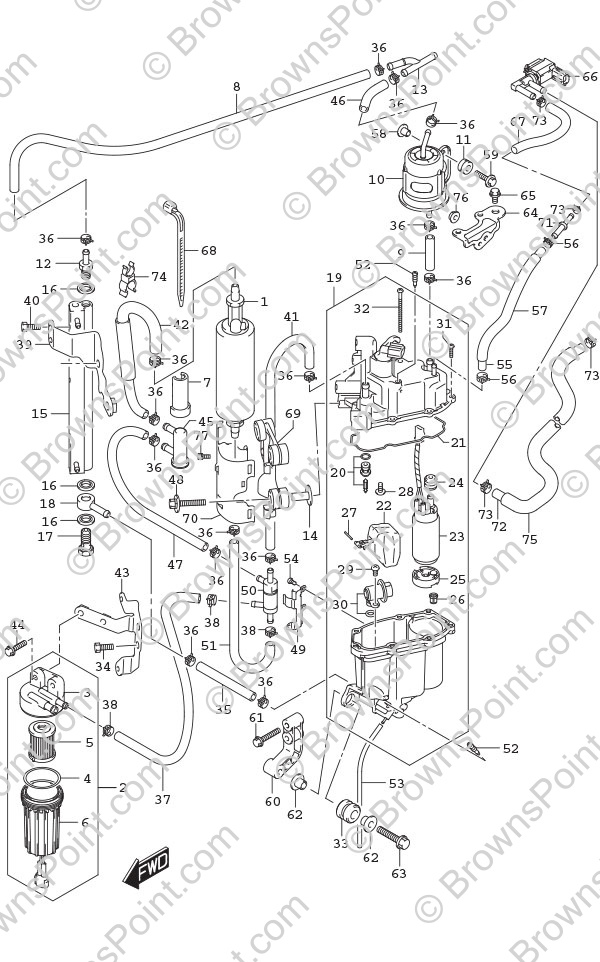

Fig. 147 - Fuel Pump/Fuel Vapor Separator
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-98J00 Fuel Pump (L)
SKU: 15100-98J00 Weight: 2.000000 Brand: Price: $ 698.95 |
Fuel Pump (L) | 1 | $ 698.95 | Low Pressure | |
| 2 | 15410-93J11 Fuel Filter Assembly
SKU: 15410-93J11 Weight: 0.500000 Brand: Price: $ 181.30 |
Fuel Filter Assembly | 1 | $ 181.30 | Low Pressure | |
| 3 | 15411-93J10 Fuel Filter Cap
SKU: 15411-93J10 Weight: 0.250000 Brand: Price: $ 61.29 |
Fuel Filter Cap | 1 | $ 61.29 | ||
| 4 | 15415-93J10 Fuel Filter O-Ring
SKU: 15415-93J10 Weight: 0.060000 Brand: Price: $ 10.90 |
Fuel Filter O-Ring | 1 | $ 10.90 | ||
| 5 | 15412-93J10 Fuel Filter Element
SKU: 15412-93J10 Weight: 0.125000 Brand: Price: $ 24.80 |
Fuel Filter Element | 1 | $ 24.80 | ||
| 6 | 15413-93J10 Fuel Filter Cup
SKU: 15413-93J10 Weight: 0.140000 Brand: Price: $ 82.13 |
Fuel Filter Cup | 1 | $ 82.13 | ||
| 7 | 15644-93J00 Fuel Filter Cover
SKU: 15644-93J00 Weight: 0.060000 Brand: Price: $ 9.33 |
Fuel Filter Cover | 3 | $ 9.33 | ||
| 8 | 15633-93J20 Fuel Hose (H)
SKU: 15633-93J20 Weight: 1.000000 Brand: Price: $ 77.26 |
Fuel Hose (H) | 1 | $ 77.26 | ||
| 9 | 09343-75002-600 Hose (7.5x13.5x600)
SKU: 09343-75002-600 Weight: 0.250000 Brand: Price: $ 34.42 |
Hose (7.5x13.5x600) | 1 | $ 34.42 | L:600->65 | |
| 10 | 15440-93J00 H/P Fuel Filter
SKU: 15440-93J00 Weight: 0.840000 Brand: Price: $ 80.72 |
H/P Fuel Filter | 1 | $ 80.72 | ||
| 11 | 09320-08501 Cushion
SKU: 09320-08501 Weight: 0.060000 Brand: Price: $ 3.28 |
Cushion | 2 | $ 3.28 | ||
| 12 | 15773-90J10 UNION,FUEL HOSE
SKU: 15773-90J10 Weight: 0.000000 Brand: Price: $ 18.53 |
UNION,FUEL HOSE | 1 | $ 18.53 | ||
| 13 | 15830-93J00 3 Way Union
SKU: 15830-93J00 Weight: 0.060000 Brand: Price: $ 17.23 |
3 Way Union | 1 | $ 17.23 | ||
| 14 | 09169-06093 Washer
SKU: 09169-06093 Weight: 0.060000 Brand: Price: $ 2.38 |
Washer | 3 | $ 2.38 | ||
| 15 | 15770-93J00 Fuel Cooler
SKU: 15770-93J00 Weight: 1.000000 Brand: Price: $ 94.67 |
Fuel Cooler | 1 | $ 94.67 | ||
| 16 | 09168-12013 Gasket
SKU: 09168-12013 Weight: 0.060000 Brand: Price: $ 3.46 |
Gasket | 3 | $ 3.46 | ||
| 17 | 09360-12008 Union Bolt
SKU: 09360-12008 Weight: 0.060000 Brand: Price: $ 9.81 |
Union Bolt | 1 | $ 9.81 | ||
| 18 | 09363-08004 Union
SKU: 09363-08004 Weight: 0.060000 Brand: Price: $ 16.69 |
Union | 1 | $ 16.69 | ||
| 19 | 15600-93J40 SEPARATOR ASSY,
SKU: 15600-93J40 Weight: 0.000000 Brand: Price: $ 563.53 |
SEPARATOR ASSY, | 1 | $ 563.53 | ||
| 20 | 13370-93J10 Needle Valve Assembly
SKU: 13370-93J10 Weight: 0.060000 Brand: Price: $ 46.03 |
Needle Valve Assembly | 1 | $ 46.03 | ||
| 21 | 15626-93J00 Separator Gasket
SKU: 15626-93J00 Weight: 0.060000 Brand: Price: $ 13.02 |
Separator Gasket | 1 | $ 13.02 | ||
| 22 | 15650-93J00 Float Assembly
SKU: 15650-93J00 Weight: 0.100000 Brand: Price: $ 69.39 |
Float Assembly | 1 | $ 69.39 | ||
| 23 | 15200-93J01 Fuel Pump Assembly
SKU: 15200-93J01 Weight: 0.740000 Brand: Price: $ 438.00 |
Fuel Pump Assembly | 1 | $ 438.00 | High Pressure | |
| 24 | 15647-93J00 Fuel Pump Bushing
SKU: 15647-93J00 Weight: 0.060000 Brand: Price: $ 10.12 |
Fuel Pump Bushing | 1 | $ 10.12 | ||
| 25 | 15641-90J00 Fuel Pump Spacer
SKU: 15641-90J00 Weight: 0.060000 Brand: Price: $ 26.17 |
Fuel Pump Spacer | 1 | $ 26.17 | ||
| 26 | 15642-90J00 Fuel Pump Filter
SKU: 15642-90J00 Weight: 0.060000 Brand: Price: $ 11.18 |
Fuel Pump Filter | 1 | $ 11.18 | ||
| 27 | 15654-99E00 Float Pin
SKU: 15654-99E00 Weight: 0.060000 Brand: Price: $ 2.50 |
Float Pin | 1 | $ 2.50 | ||
| 28 | 02142-0408B SCREW
SKU: 02142-0408B Weight: 0.060000 Brand: Price: $ 1.72 |
SCREW | 1 | $ 1.72 | ||
| 29 | 13602-05108 13602-05108
SKU: 13602-05108 Weight: Brand: Price: $ 0.00 |
13602-05108 | 1 | $ 0.00 | ||
| 30 | 15760-93J01 Fuel Pressure Regulator
SKU: 15760-93J01 Weight: 0.160000 Brand: Price: $ 132.70 |
Fuel Pressure Regulator | 1 | $ 132.70 | ||
| 31 | 15628-99E00 Screw (L:15)
SKU: 15628-99E00 Weight: 0.060000 Brand: Price: $ 2.42 |
Screw (L:15) | 6 | $ 2.42 | ||
| 32 | 15627-93J00 Screw (NLA)
SKU: 15627-93J00 Weight: 0.060000 Brand: Price: $ 4.29 |
Screw (NLA) | 1 | $ 4.29 | ||
| 33 | 09320-12094 CUSHION,SLCNR B
SKU: 09320-12094 Weight: 0.000000 Brand: Price: $ 2.18 |
CUSHION,SLCNR B | 3 | $ 2.18 | ||
| 34 | 15675-93J00 Cooler Bracket Bolt
SKU: 15675-93J00 Weight: 0.100000 Brand: Price: $ 2.05 |
Cooler Bracket Bolt | 3 | $ 2.05 | ||
| 35 | 09343-75002-600 Hose (7.5x13.5x600)
SKU: 09343-75002-600 Weight: 0.250000 Brand: Price: $ 34.42 |
Hose (7.5x13.5x600) | 1 | $ 34.42 | L:600->50 | |
| 36 | 09401-11414 Clip
SKU: 09401-11414 Weight: 0.060000 Brand: Price: $ 2.81 |
Clip | 14 | $ 2.81 | ||
| 37 | 15636-93J30 Fuel Hose (L)
SKU: 15636-93J30 Weight: 0.250000 Brand: Price: $ 54.79 |
Fuel Hose (L) | 1 | $ 54.79 | ||
| 38 | 15686-93J00 Fuel Hose Clip
SKU: 15686-93J00 Weight: 0.060000 Brand: Price: $ 4.34 |
Fuel Hose Clip | 1 | $ 4.34 | ||
| 39 | 15672-93J10 Fuel Cooler Bracket
SKU: 15672-93J10 Weight: 0.100000 Brand: Price: $ 101.12 |
Fuel Cooler Bracket | 1 | $ 101.12 | ||
| 40 | 01500-06167 BOLT
SKU: 01500-06167 Weight: 0.125000 Brand: Price: $ 1.97 |
BOLT | 4 | $ 1.97 | ||
| 41 | 15635-93J30 Fuel Hose (H)
SKU: 15635-93J30 Weight: 0.500000 Brand: Price: $ 143.21 |
Fuel Hose (H) | 1 | $ 143.21 | ||
| 42 | 15632-93J30 Fuel Hose (H)
SKU: 15632-93J30 Weight: 0.500000 Brand: Price: $ 134.82 |
Fuel Hose (H) | 1 | $ 134.82 | ||
| 43 | 15673-98J00 Fuel Filter Bracket
SKU: 15673-98J00 Weight: 0.250000 Brand: Price: $ 39.32 |
Fuel Filter Bracket | 1 | $ 39.32 | ||
| 44 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 45 | 15643-93J00 Fuel Filter (L)
SKU: 15643-93J00 Weight: 0.060000 Brand: Price: $ 33.84 |
Fuel Filter (L) | 1 | $ 33.84 | ||
| 46 | 09343-75002-600 Hose (7.5x13.5x600)
SKU: 09343-75002-600 Weight: 0.250000 Brand: Price: $ 34.42 |
Hose (7.5x13.5x600) | 1 | $ 34.42 | L:600->65 | |
| 47 | 15634-93J20 Fuel Hose (H)
SKU: 15634-93J20 Weight: 0.060000 Brand: Price: $ 80.31 |
Fuel Hose (H) | 1 | $ 80.31 | ||
| 48 | 09116-06525 Bolt
SKU: 09116-06525 Weight: 0.060000 Brand: Price: $ 2.42 |
Bolt | 3 | $ 2.42 | ||
| 49 | 15674-93J00 Check Valve Bracket
SKU: 15674-93J00 Weight: 0.100000 Brand: Price: $ 15.45 |
Check Valve Bracket | 1 | $ 15.45 | ||
| 50 | 15645-93J00 Check Valve
SKU: 15645-93J00 Weight: 0.110000 Brand: Price: $ 90.51 |
Check Valve | 1 | $ 90.51 | ||
| 51 | 15637-93J30 Fuel Hose (L)
SKU: 15637-93J30 Weight: 0.500000 Brand: Price: $ 67.42 |
Fuel Hose (L) | 1 | $ 67.42 | ||
| 52 | 15629-99E10 Drain Screw
SKU: 15629-99E10 Weight: 0.060000 Brand: Price: $ 5.49 |
Drain Screw | 2 | $ 5.49 | ||
| 53 | 15683-87J00 Drain Hose (L:120)
SKU: 15683-87J00 Weight: 0.125000 Brand: Price: $ 3.37 |
Drain Hose (L:120) | 1 | $ 3.37 | ||
| 54 | 02112-0406B SCREW
SKU: 02112-0406B Weight: 0.060000 Brand: Price: $ 1.57 |
SCREW | 3 | $ 1.57 | ||
| 55 | 09343-70503-600 Fuel Hose (7x12x600)
SKU: 09343-70503-600 Weight: 0.160000 Brand: Price: $ 53.16 |
Fuel Hose (7x12x600) | 1 | $ 53.16 | L:600->240 | |
| 56 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 2 | $ 2.09 | ||
| 57 | 18498-90J61 Protector (15.4x18.4x70)
SKU: 18498-90J61 Weight: 0.250000 Brand: Price: $ 4.08 |
Protector (15.4x18.4x70) | 1 | $ 4.08 | ||
| 58 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 2 | $ 2.52 | ||
| 59 | 09116-06202 Bolt w/Washer (6x25)
SKU: 09116-06202 Weight: 0.250000 Brand: Price: $ 3.54 |
Bolt w/Washer (6x25) | 2 | $ 3.54 | ||
| 60 | 15671-93J00 Vapor Separator Bracket (NLA)
SKU: 15671-93J00 Weight: 0.100000 Brand: Price: $ 22.97 |
Vapor Separator Bracket (NLA) | 1 | $ 22.97 | ||
| 61 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | ||
| 62 | 09169-08042 Washer
SKU: 09169-08042 Weight: 0.060000 Brand: Price: $ 5.86 |
Washer | 6 | $ 5.86 | ||
| 63 | 01550-0840C Bolt
SKU: 01550-0840C Weight: 0.060000 Brand: Price: $ 1.80 |
Bolt | 3 | $ 1.80 | ||
| 64 | 18417-93J00 Purge Valve Bracket
SKU: 18417-93J00 Weight: 0.100000 Brand: Price: $ 5.38 |
Purge Valve Bracket | 1 | $ 5.38 | ||
| 65 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 2 | $ 1.73 | ||
| 66 | 18117-52G10 Evap Purge Valve Assy
SKU: 18117-52G10 Weight: 0.250000 Brand: Price: $ 135.74 |
Evap Purge Valve Assy | 1 | $ 135.74 | ||
| 67 | 09352-50003-080 HOSE(5X8.2X080)
SKU: 09352-50003-080 Weight: 0.000000 Brand: Price: $ 6.67 |
HOSE(5X8.2X080) | 1 | $ 6.67 | ||
| 68 | 13671-02F00 Clip
SKU: 13671-02F00 Weight: 0.060000 Brand: Price: $ 2.15 |
Clip | 1 | $ 2.15 | ||
| 69 | 15114-93J00 Fuel Pump Bracket No. 1
SKU: 15114-93J00 Weight: 0.250000 Brand: Price: $ 17.70 |
Fuel Pump Bracket No. 1 | 1 | $ 17.70 | ||
| 70 | 15115-93J02 RACKET,FUEL PUP
SKU: 15115-93J02 Weight: 0.000000 Brand: Price: $ 17.18 |
RACKET,FUEL PUP | 1 | $ 17.18 | ||
| 71 | 15695-98L00 Evaporation Union
SKU: 15695-98L00 Weight: 0.060000 Brand: Price: $ 9.76 |
Evaporation Union | 1 | $ 9.76 | ||
| 72 | 09352-50003-550 HOSE(5X8.2X550)
SKU: 09352-50003-550 Weight: 0.000000 Brand: Price: $ 51.16 |
HOSE(5X8.2X550) | 1 | $ 51.16 | ||
| 73 | 09401-08412 Clip
SKU: 09401-08412 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 74 | 09408-00056 Clip
SKU: 09408-00056 Weight: 0.100000 Brand: Price: $ 2.67 |
Clip | 1 | $ 2.67 | ||
| 75 | 18498-87JC1 Protector (L:450)
SKU: 18498-87JC1 Weight: 0.120000 Brand: Price: $ 5.05 |
Protector (L:450) | 1 | $ 5.05 | ||
| 76 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 1 | $ 2.25 | ||
| 77 | 15118-93J00 Bolt
SKU: 15118-93J00 Weight: 0.060000 Brand: Price: $ 11.39 |
Bolt | 1 | $ 11.39 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
