Suzuki DF 300 Parts Listings 2007 to S/N 30002F-11XXXX 2007 to S/N 30002Z-11XXXX

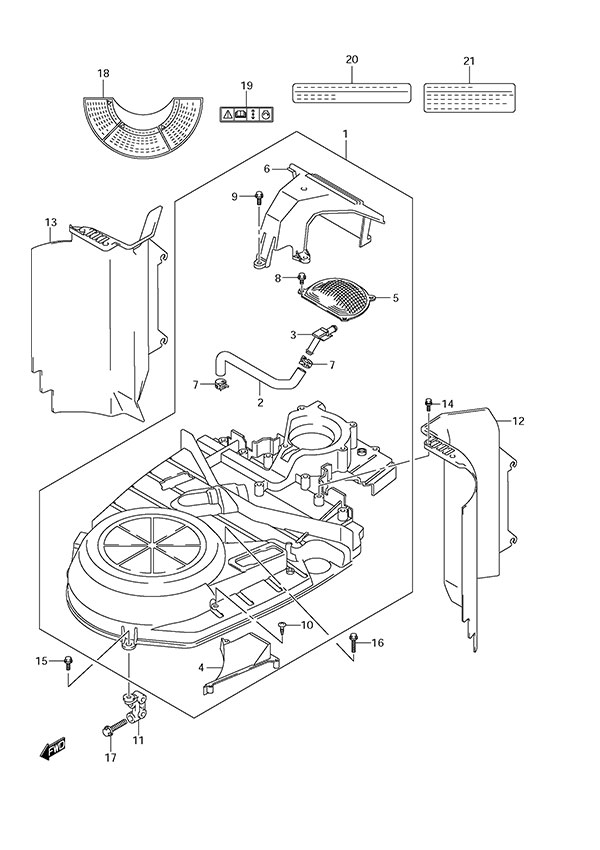

Fig. 3 - Ring Gear Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11510-98J03 COVER COMP,RING
SKU: 11510-98J03 Weight: 0.000000 Brand: Price: $ 310.98 |
COVER COMP,RING | 1 | $ 310.98 | ||
| 2 | 11174-98J01 HOSE,BREATHER
SKU: 11174-98J01 Weight: 0.000000 Brand: Price: $ 13.96 |
HOSE,BREATHER | 1 | $ 13.96 | ||
| 3 | 11176-98J00 Breather Union
SKU: 11176-98J00 Weight: 0.100000 Brand: Price: $ 3.66 |
Breather Union | 1 | $ 3.66 | ||
| 4 | 11514-98J00 Ring Gear Cover Plate
SKU: 11514-98J00 Weight: 0.100000 Brand: Price: $ 18.33 |
Ring Gear Cover Plate | 1 | $ 18.33 | ||
| 5 | 13710-98J00 Flame Arrester
SKU: 13710-98J00 Weight: 0.100000 Brand: Price: $ 28.80 |
Flame Arrester | 1 | $ 28.80 | ||
| 6 | 13811-98J00 Upper Cover Silencer
SKU: 13811-98J00 Weight: 1.000000 Brand: Price: $ 65.87 |
Upper Cover Silencer | 1 | $ 65.87 | ||
| 7 | 09401-18410 Clip
SKU: 09401-18410 Weight: 0.060000 Brand: Price: $ 3.64 |
Clip | 2 | $ 3.64 | ||
| 8 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 9 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 5 | $ 2.33 | ||
| 10-1 | 03542-06209 SCREW
SKU: 03542-06209 Weight: 0.100000 Brand: Price: $ 2.24 |
SCREW | 3 | $ 2.24 | ||
| 10-2 | 11517-98J00 Screw
SKU: 11517-98J00 Weight: 0.100000 Brand: Price: $ 2.44 |
Screw | 3 | $ 2.44 | 2008 Newer | |
| 11 | 11515-93J00 Ring Gear Cover Brace
SKU: 11515-93J00 Weight: 0.100000 Brand: Price: $ 26.55 |
Ring Gear Cover Brace | 1 | $ 26.55 | ||
| 12 | 13841-98J10 Air Duct Starboard Guard
SKU: 13841-98J10 Weight: 0.250000 Brand: Price: $ 106.20 |
Air Duct Starboard Guard | 1 | $ 106.20 | ||
| 13 | 13851-98J10 Air Duct Port Guard
SKU: 13851-98J10 Weight: 0.100000 Brand: Price: $ 106.20 |
Air Duct Port Guard | 1 | $ 106.20 | ||
| 14 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 15 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 16 | 01550-06407 BOLT
SKU: 01550-06407 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | ||
| 17 | 01550-08357 BOLT
SKU: 01550-08357 Weight: 0.060000 Brand: Price: $ 3.54 |
BOLT | 2 | $ 3.54 | ||
| 18 | 61472-93E33 LABEL,RECOIL,ST
SKU: 61472-93E33 Weight: 0.000000 Brand: Price: $ 7.74 |
LABEL,RECOIL,ST | 1 | $ 7.74 | ||
| 19 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 | ||
| 20 | 61493-93J00 Clearance Label
SKU: 61493-93J00 Weight: 0.100000 Brand: Price: $ 6.68 |
Clearance Label | 1 | $ 6.68 | 2009 Newer | |
| 21 | 61494-96J11 LABEL,OIL & CLE
SKU: 61494-96J11 Weight: 0.000000 Brand: Price: $ 7.70 |
LABEL,OIL & CLE | 1 | $ 7.70 | 2009 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
