Suzuki DF 300 Parts Listings 2007 to S/N 30002F-11XXXX 2007 to S/N 30002Z-11XXXX

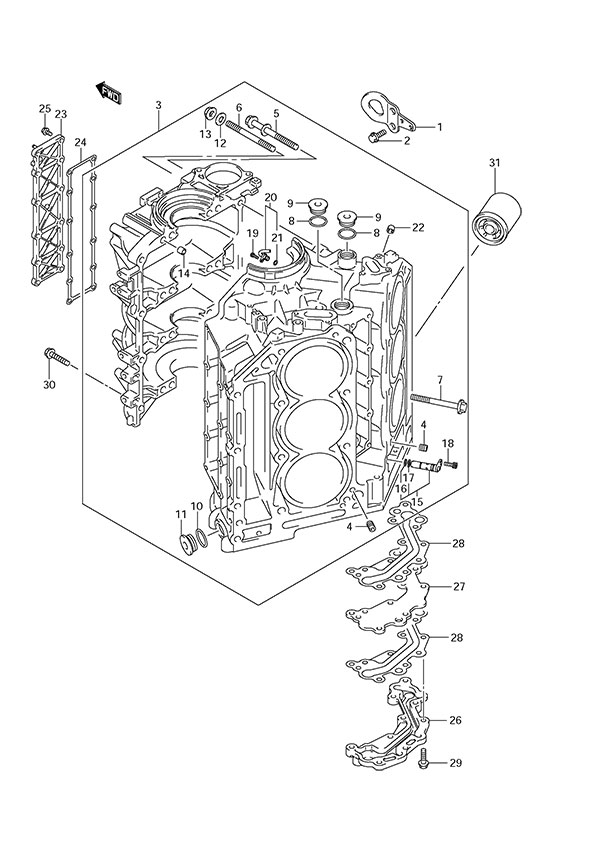

Fig. 2 - Cylinder Block
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11293-98J00 Front Engine Hook
SKU: 11293-98J00 Weight: 0.250000 Brand: Price: $ 15.80 |
Front Engine Hook | 1 | $ 15.80 | ||
| 2 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 3-1 | 11301-98J50 Cylinder Block Set
SKU: 11301-98J50 Weight: 50.000000 Brand: Price: $ 5,265.84 |
Cylinder Block Set | 1 | $ 5,265.84 | ||
| 3-2 | 11301-98J21 Cylinder Block Set
SKU: 11301-98J21 Weight: 50.000000 Brand: Price: $ 4,915.83 |
Cylinder Block Set | 1 | $ 4,915.83 | S/N 110001 Newer | |
| 4 | 11112-93J00 Oil Venturi Plug
SKU: 11112-93J00 Weight: 0.100000 Brand: Price: $ 4.34 |
Oil Venturi Plug | 2 | $ 4.34 | ||
| 5-1 | 11117-93J10 Crankcase Bolt
SKU: 11117-93J10 Weight: 0.025000 Brand: Price: $ 7.57 |
Crankcase Bolt | 12 | $ 7.57 | ||
| 5-2 | 11117-93J10 Crankcase Bolt
SKU: 11117-93J10 Weight: 0.025000 Brand: Price: $ 7.57 |
Crankcase Bolt | 12 | $ 7.57 | DF300T: S/N 010542 Newer DF300Z: S/N 010268 Newer | |
| 6-1 | 11117-98J00 Crankcase Stud Bolt
SKU: 11117-98J00 Weight: 0.100000 Brand: Price: $ 10.39 |
Crankcase Stud Bolt | 4 | $ 10.39 | ||
| 6-2 | 11117-98J10 Crankcase Stud Bolt
SKU: 11117-98J10 Weight: 0.100000 Brand: Price: $ 14.73 |
Crankcase Stud Bolt | 4 | $ 14.73 | DF300T: S/N 010542 Newer DF300Z: S/N 010268 Newer | |
| 7 | 11119-93J00 Cylinder Head Bolt
SKU: 11119-93J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Cylinder Head Bolt | 16 | $ 7.13 | ||
| 8 | 11217-85FA0 M26 Plug Gasket
SKU: 11217-85FA0 Weight: 0.060000 Brand: Price: $ 3.57 |
M26 Plug Gasket | 3 | $ 3.57 | ||
| 9 | 09248-26001 M26 Oil Gallery Plug
SKU: 09248-26001 Weight: 0.120000 Brand: Price: $ 15.49 |
M26 Oil Gallery Plug | 3 | $ 15.49 | ||
| 10 | 09160-18031 Exhaust Plug Gasket
SKU: 09160-18031 Weight: 0.060000 Brand: Price: $ 2.46 |
Exhaust Plug Gasket | 2 | $ 2.46 | ||
| 11 | 09248-18006 Exhaust Plug
SKU: 09248-18006 Weight: 0.060000 Brand: Price: $ 6.12 |
Exhaust Plug | 2 | $ 6.12 | ||
| 12 | 09159-10116 Crankcase Nut
SKU: 09159-10116 Weight: 0.100000 Brand: Price: $ 2.79 |
Crankcase Nut | 4 | $ 2.79 | ||
| 13 | 09160-10142 Washer
SKU: 09160-10142 Weight: 0.100000 Brand: Price: $ 2.34 |
Washer | 4 | $ 2.34 | DF300T: S/N 010541 Older DF300Z: S/N 010267 Older | |
| 14 | 09206-13019 Knock Pin
SKU: 09206-13019 Weight: 0.062500 Brand: Price: $ 2.54 |
Knock Pin | 5 | $ 2.54 | ||
| 15 | 16700-93J00 Piston Jet Valve
SKU: 16700-93J00 Weight: 0.100000 Brand: Price: $ 46.96 |
Piston Jet Valve | 1 | $ 46.96 | ||
| 16 | 09280-10009 O-Ring
SKU: 09280-10009 Weight: 0.060000 Brand: Price: $ 1.99 |
O-Ring | 1 | $ 1.99 | ||
| 17 | 09280-10016 O-Ring
SKU: 09280-10016 Weight: 0.060000 Brand: Price: $ 3.41 |
O-Ring | 1 | $ 3.41 | ||
| 18 | 07130-0616B BOLT
SKU: 07130-0616B Weight: 0.060000 Brand: Price: $ 2.40 |
BOLT | 1 | $ 2.40 | ||
| 19 | 07130-0510A BOLT
SKU: 07130-0510A Weight: 0.100000 Brand: Price: $ 2.32 |
BOLT | 6 | $ 2.32 | ||
| 20 | 11390-98J00 Piston Cooling Jet
SKU: 11390-98J00 Weight: 0.125000 Brand: Price: $ 42.58 |
Piston Cooling Jet | 6 | $ 42.58 | ||
| 21 | 09280-06005 O-Ring
SKU: 09280-06005 Weight: 0.125000 Brand: Price: $ 1.44 |
O-Ring | 6 | $ 1.44 | ||
| 22 | 09246-04009 Plug
SKU: 09246-04009 Weight: 0.060000 Brand: Price: $ 3.68 |
Plug | 1 | $ 3.68 | ||
| 23 | 11330-93J01 Crankcase Water Jacket Cover
SKU: 11330-93J01 Weight: 0.500000 Brand: Price: $ 164.92 |
Crankcase Water Jacket Cover | 1 | $ 164.92 | ||
| 24 | 11332-93J00 Crankcase Water Jacket Cover Gasket
SKU: 11332-93J00 Weight: 0.250000 Brand: Price: $ 9.00 |
Crankcase Water Jacket Cover Gasket | 1 | $ 9.00 | ||
| 25 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 12 | $ 2.33 | ||
| 26 | 16430-93J00 Oil Gallery Cover (NLA)
SKU: 16430-93J00 Weight: 0.100000 Brand: Price: $ 85.14 |
Oil Gallery Cover (NLA) | 1 | $ 85.14 | ||
| 27 | 16431-93J00 Oil Gallery Plate
SKU: 16431-93J00 Weight: 0.100000 Brand: Price: $ 15.80 |
Oil Gallery Plate | 1 | $ 15.80 | ||
| 28 | 16433-93J00 Oil Gallery Gasket
SKU: 16433-93J00 Weight: 0.080000 Brand: Price: $ 7.36 |
Oil Gallery Gasket | 2 | $ 7.36 | ||
| 29 | 01550-0835A BOLT
SKU: 01550-0835A Weight: 0.060000 Brand: Price: $ 3.09 |
BOLT | 9 | $ 3.09 | ||
| 30 | 01550-08457 BOLT
SKU: 01550-08457 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT | 8 | $ 3.48 | ||
| 31 | 16510-96J11 Engine Oil Filter
SKU: 16510-96J11 Weight: 0.000000 Brand: Price: $ 16.10 |
Engine Oil Filter | 1 | $ 16.10 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
