Suzuki DF 175AP Parts Listings - 2022
S/N 17503P-240001 to 17503P-24XXXX

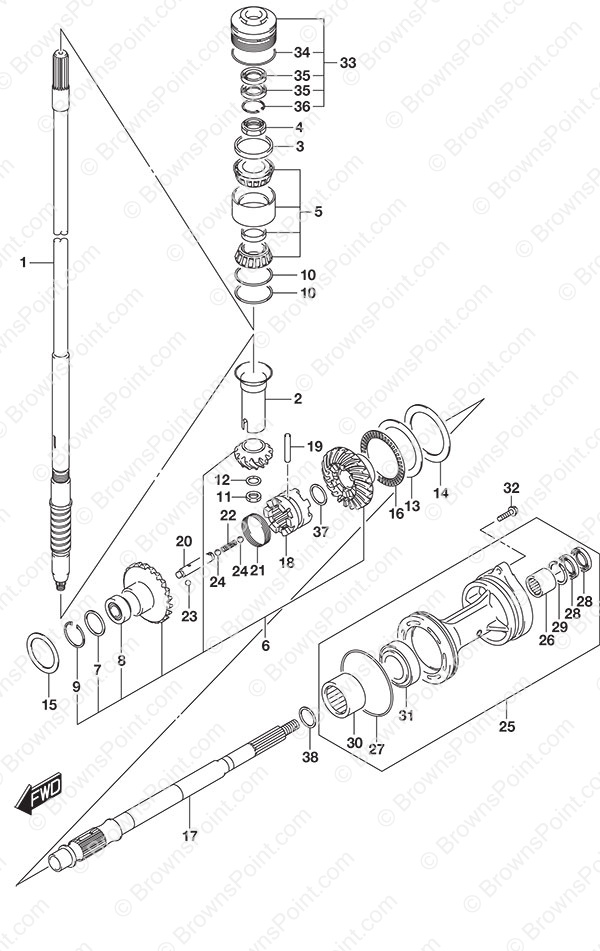

Fig. 220 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 57110-96J41 Drive Shaft (L)
SKU: 57110-96J41 Weight: 11.000000 Brand: Price: $ 585.58 |
Drive Shaft (L) | 1 | $ 585.58 | w/Transom (L) | |
| 1-2 | 57110-96J31 Drive Shaft (X)
SKU: 57110-96J31 Weight: 11.000000 Brand: Price: $ 595.69 |
Drive Shaft (X) | 1 | $ 595.69 | w/Transom (X) | |
| 2 | 57133-93J00 Drive Shaft Collar
SKU: 57133-93J00 Weight: 0.060000 Brand: Price: $ 12.24 |
Drive Shaft Collar | 1 | $ 12.24 | ||
| 3 | 57134-93J00 Drive Shaft Bearing Spacer
SKU: 57134-93J00 Weight: 0.250000 Brand: Price: $ 25.91 |
Drive Shaft Bearing Spacer | 1 | $ 25.91 | ||
| 4 | 09159-28003 Drive Shaft Bearing Nut
SKU: 09159-28003 Weight: 0.100000 Brand: Price: $ 44.52 |
Drive Shaft Bearing Nut | 1 | $ 44.52 | ||
| 5 | 09269-32002 Bearing (32x66x49)
SKU: 09269-32002 Weight: 0.500000 Brand: Price: $ 205.05 |
Bearing (32x66x49) | 1 | $ 205.05 | ||
| 6 | 57300-96870 Pinion & Gear Set
SKU: 57300-96870 Weight: 5.000000 Brand: Price: $ 695.23 |
Pinion & Gear Set | 1 | $ 695.23 | ||
| 7 | 09160-41004 Washer
SKU: 09160-41004 Weight: 0.060000 Brand: Price: $ 19.71 |
Washer | 1 | $ 19.71 | ||
| 8 | 09265-25046 Bearing (25x52x19.25)
SKU: 09265-25046 Weight: 0.500000 Brand: Price: $ 75.79 |
Bearing (25x52x19.25) | 1 | $ 75.79 | ||
| 9 | 09381-52008 Circlip
SKU: 09381-52008 Weight: 0.060000 Brand: Price: $ 10.88 |
Circlip | 1 | $ 10.88 | ||
| 10-1 | 09181-60004 Shim (0.45)
SKU: 09181-60004 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.45) | 1 | $ 4.85 | ||
| 10-2 | 09181-60005 Shim (0.50)
SKU: 09181-60005 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.50) | 1 | $ 4.85 | ||
| 10-3 | 09181-60006 Shim (0.55)
SKU: 09181-60006 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.55) | 1 | $ 4.85 | ||
| 10-4 | 09181-60007 Shim (0.60)
SKU: 09181-60007 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.60) | 1 | $ 4.85 | ||
| 10-5 | 09181-60008 Shim (0.65)
SKU: 09181-60008 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.65) | 1 | $ 4.85 | ||
| 10-6 | 09181-60009 Shim (0.70)
SKU: 09181-60009 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.70) | 1 | $ 4.85 | ||
| 10-7 | 09181-60010 Shim (0.75)
SKU: 09181-60010 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.75) | 1 | $ 4.85 | ||
| 10-8 | 09181-60011 Shim (0.80)
SKU: 09181-60011 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.80) | 1 | $ 4.85 | ||
| 10-9 | 09181-60012 Shim (0.85)
SKU: 09181-60012 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.85) | 1 | $ 4.85 | ||
| 10-10 | 09181-60013 Shim (0.90)
SKU: 09181-60013 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.90) | 1 | $ 4.85 | ||
| 11 | 09140-16021 Pinion Nut
SKU: 09140-16021 Weight: 0.060000 Brand: Price: $ 3.76 |
Pinion Nut | 1 | $ 3.76 | ||
| 12 | 08221-16256 Washer
SKU: 08221-16256 Weight: 0.060000 Brand: Price: $ 1.91 |
Washer | 1 | $ 1.91 | ||
| 13 | 09160-75002 Thrust Washer
SKU: 09160-75002 Weight: 0.062500 Brand: Price: $ 40.65 |
Thrust Washer | 1 | $ 40.65 | Fwd Gear | |
| 14-1 | 09181-75018 Shim (0.50)
SKU: 09181-75018 Weight: 0.060000 Brand: Price: $ 7.30 |
Shim (0.50) | 1 | $ 7.30 | Rev Gear | |
| 14-2 | 09181-75019 Shim (0.55)
SKU: 09181-75019 Weight: 0.060000 Brand: Price: $ 9.97 |
Shim (0.55) | 1 | $ 9.97 | ||
| 14-3 | 09181-75012 Shim (0.60)
SKU: 09181-75012 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (0.60) | 1 | $ 7.44 | ||
| 14-4 | 09181-75013 Shim (0.65)
SKU: 09181-75013 Weight: 0.060000 Brand: Price: $ 7.57 |
Shim (0.65) | 1 | $ 7.57 | ||
| 14-5 | 09181-75008 Shim (0.70)
SKU: 09181-75008 Weight: 0.060000 Brand: Price: $ 7.57 |
Shim (0.70) | 1 | $ 7.57 | ||
| 14-6 | 09181-75014 Shim (0.75)
SKU: 09181-75014 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (0.75) | 1 | $ 7.44 | ||
| 14-7 | 09181-75009 Shim (0.80)
SKU: 09181-75009 Weight: 0.060000 Brand: Price: $ 7.30 |
Shim (0.80) | 1 | $ 7.30 | ||
| 14-8 | 09181-75015 Shim (0.85)
SKU: 09181-75015 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (0.85) | 1 | $ 7.44 | ||
| 14-9 | 09181-75010 Shim (0.90)
SKU: 09181-75010 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (0.90) | 1 | $ 7.44 | ||
| 14-10 | 09181-75016 Shim (0.95)
SKU: 09181-75016 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (0.95) | 1 | $ 7.44 | ||
| 14-11 | 09181-75011 Shim (1.00)
SKU: 09181-75011 Weight: 0.060000 Brand: Price: $ 7.44 |
Shim (1.00) | 1 | $ 7.44 | ||
| 15-1 | 09181-65001 Shim (0.50)
SKU: 09181-65001 Weight: 0.060000 Brand: Price: $ 7.70 |
Shim (0.50) | 1 | $ 7.70 | Fwd Gear | |
| 15-2 | 09181-65002 Shim (0.55)
SKU: 09181-65002 Weight: 0.060000 Brand: Price: $ 7.70 |
Shim (0.55) | 1 | $ 7.70 | ||
| 15-3 | 09181-65003 Shim (0.60)
SKU: 09181-65003 Weight: 0.060000 Brand: Price: $ 7.70 |
Shim (0.60) | 1 | $ 7.70 | ||
| 15-4 | 09181-65004 Shim (0.65)
SKU: 09181-65004 Weight: 0.060000 Brand: Price: $ 7.70 |
Shim (0.65) | 1 | $ 7.70 | ||
| 15-5 | 09181-65005 Shim (0.70)
SKU: 09181-65005 Weight: 0.060000 Brand: Price: $ 7.70 |
Shim (0.70) | 1 | $ 7.70 | ||
| 15-6 | 09181-65006 Shim (0.75)
SKU: 09181-65006 Weight: 0.060000 Brand: Price: $ 7.70 |
Shim (0.75) | 1 | $ 7.70 | ||
| 15-7 | 09181-65007 Shim (0.80)
SKU: 09181-65007 Weight: 0.060000 Brand: Price: $ 7.70 |
Shim (0.80) | 1 | $ 7.70 | ||
| 15-8 | 09181-65008 Shim (0.85)
SKU: 09181-65008 Weight: 0.060000 Brand: Price: $ 7.70 |
Shim (0.85) | 1 | $ 7.70 | ||
| 15-9 | 09181-65009 Shim (0.90)
SKU: 09181-65009 Weight: 0.060000 Brand: Price: $ 7.70 |
Shim (0.90) | 1 | $ 7.70 | ||
| 15-10 | 09181-65010 Shim (0.95)
SKU: 09181-65010 Weight: 0.060000 Brand: Price: $ 7.70 |
Shim (0.95) | 1 | $ 7.70 | ||
| 16 | 09269-75002 Thrust Bearing
SKU: 09269-75002 Weight: 0.200000 Brand: Price: $ 70.26 |
Thrust Bearing | 1 | $ 70.26 | ||
| 17 | 57610-96L00 Propeller Shaft Assembly
SKU: 57610-96L00 Weight: 5.000000 Brand: Price: $ 457.96 |
Propeller Shaft Assembly | 1 | $ 457.96 | ||
| 18 | 57621-96L00 Clutch Dog Shifter
SKU: 57621-96L00 Weight: 2.000000 Brand: Price: $ 86.11 |
Clutch Dog Shifter | 1 | $ 86.11 | ||
| 19 | 09202-08011 Clutch Dog Shifter Pin
SKU: 09202-08011 Weight: 0.250000 Brand: Price: $ 13.70 |
Clutch Dog Shifter Pin | 1 | $ 13.70 | ||
| 20 | 57631-96J00 Connector Pin
SKU: 57631-96J00 Weight: 0.250000 Brand: Price: $ 38.68 |
Connector Pin | 1 | $ 38.68 | ||
| 21 | 09440-56001 Clutch Dog Shifter Spring
SKU: 09440-56001 Weight: 0.187500 Brand: Price: $ 6.53 |
Clutch Dog Shifter Spring | 1 | $ 6.53 | ||
| 22 | 09440-09040 Detent Spring
SKU: 09440-09040 Weight: 0.100000 Brand: Price: $ 2.82 |
Detent Spring | 1 | $ 2.82 | ||
| 23 | 06111-07004 STEEL BALL 7/32
SKU: 06111-07004 Weight: 0.060000 Brand: Price: $ 1.24 |
STEEL BALL 7/32 | 2 | $ 1.24 | ||
| 24 | 06111-11004 BALL
SKU: 06111-11004 Weight: 0.060000 Brand: Price: $ 1.87 |
BALL | 2 | $ 1.87 | ||
| 25-1 | 56120-96L10-YAY Propeller Shaft Bearing Housing
SKU: 56120-96L10-YAY Weight: 0.000000 Brand: Price: $ 423.55 |
Propeller Shaft Bearing Housing | 1 | $ 423.55 | Black | |
| 25-2 | 56120-96L10-QTN Propeller Shaft Bearing Housing
SKU: 56120-96L10-QTN Weight: 0.000000 Brand: Price: $ 423.55 |
Propeller Shaft Bearing Housing | 1 | $ 423.55 | White | |
| 26 | 09263-30063 Bearing (30x40x25)
SKU: 09263-30063 Weight: 0.200000 Brand: Price: $ 43.67 |
Bearing (30x40x25) | 1 | $ 43.67 | ||
| 27 | 09280-00040 O-Ring
SKU: 09280-00040 Weight: 0.060000 Brand: Price: $ 7.36 |
O-Ring | 1 | $ 7.36 | ||
| 28 | 09282-30006 Oil Seal (30x45x6)
SKU: 09282-30006 Weight: 0.060000 Brand: Price: $ 5.72 |
Oil Seal (30x45x6) | 2 | $ 5.72 | ||
| 29 | 09381-40003 Circlip
SKU: 09381-40003 Weight: 0.060000 Brand: Price: $ 4.73 |
Circlip | 1 | $ 4.73 | ||
| 30 | 09263-50009 Forward Gear Bearing
SKU: 09263-50009 Weight: 0.500000 Brand: Price: $ 104.40 |
Forward Gear Bearing | 1 | $ 104.40 | ||
| 31 | 09265-32003 Bearing (32x58x17)
SKU: 09265-32003 Weight: 0.250000 Brand: Price: $ 47.65 |
Bearing (32x58x17) | 1 | $ 47.65 | ||
| 32 | 09116-08158 Bolt (8x35)
SKU: 09116-08158 Weight: 0.250000 Brand: Price: $ 7.60 |
Bolt (8x35) | 2 | $ 7.60 | ||
| 33 | 56130-93J02 Drive Shaft Bearing Housing
SKU: 56130-93J02 Weight: 0.560000 Brand: Price: $ 91.72 |
Drive Shaft Bearing Housing | 1 | $ 91.72 | ||
| 34 | 09280-66004 O-Ring
SKU: 09280-66004 Weight: 0.060000 Brand: Price: $ 5.59 |
O-Ring | 1 | $ 5.59 | ||
| 35 | 09282-24004 Oil Seal (24x40x7)
SKU: 09282-24004 Weight: 0.060000 Brand: Price: $ 6.96 |
Oil Seal (24x40x7) | 2 | $ 6.96 | ||
| 36 | 09381-40003 Circlip
SKU: 09381-40003 Weight: 0.060000 Brand: Price: $ 4.73 |
Circlip | 1 | $ 4.73 | ||
| 37 | 09180-32006 Spacer (32.4x40x3)
SKU: 09180-32006 Weight: 0.060000 Brand: Price: $ 10.41 |
Spacer (32.4x40x3) | 1 | $ 10.41 | ||
| 38-1 | 09181-32017 Shim (0.65)
SKU: 09181-32017 Weight: 0.060000 Brand: Price: $ 3.85 |
Shim (0.65) | 1 | $ 3.85 | ||
| 38-2 | 09181-32131 Shim (0.60)
SKU: 09181-32131 Weight: 0.060000 Brand: Price: $ 3.48 |
Shim (0.60) | 1 | $ 3.48 | ||
| 38-3 | 09181-32132 Shim (0.70)
SKU: 09181-32132 Weight: 0.060000 Brand: Price: $ 3.48 |
Shim (0.70) | 1 | $ 3.48 | ||
| 38-4 | 09181-32133 Shim (0.75)
SKU: 09181-32133 Weight: 0.060000 Brand: Price: $ 3.48 |
Shim (0.75) | 1 | $ 3.48 | ||
| 38-5 | 09181-32134 Shim (0.80)
SKU: 09181-32134 Weight: 0.060000 Brand: Price: $ 3.48 |
Shim (0.80) | 1 | $ 3.48 | ||
| 38-6 | 09181-32135 Shim (0.85)
SKU: 09181-32135 Weight: 0.060000 Brand: Price: $ 3.48 |
Shim (0.85) | 1 | $ 3.48 | ||
| 38-7 | 09181-32136 Shim (0.90)
SKU: 09181-32136 Weight: 0.060000 Brand: Price: $ 3.48 |
Shim (0.90) | 1 | $ 3.48 | ||
| 38-8 | 09181-32137 Shim (0.95)
SKU: 09181-32137 Weight: 0.060000 Brand: Price: $ 3.48 |
Shim (0.95) | 1 | $ 3.48 | ||
| 38-9 | 09181-32138 Shim (1.00)
SKU: 09181-32138 Weight: 0.060000 Brand: Price: $ 3.71 |
Shim (1.00) | 1 | $ 3.71 | ||
| 38-10 | 09181-32141 Shim (1.05)
SKU: 09181-32141 Weight: 0.060000 Brand: Price: $ 3.71 |
Shim (1.05) | 1 | $ 3.71 | ||
| 38-11 | 09181-32144 Shim (1.10)
SKU: 09181-32144 Weight: 0.060000 Brand: Price: $ 3.71 |
Shim (1.10) | 1 | $ 3.71 | ||
| 38-12 | 09181-32146 Shim (1.15)
SKU: 09181-32146 Weight: 0.060000 Brand: Price: $ 3.71 |
Shim (1.15) | 1 | $ 3.71 | ||
| 38-13 | 09181-32148 Shim (1.20)
SKU: 09181-32148 Weight: 0.060000 Brand: Price: $ 3.71 |
Shim (1.20) | 1 | $ 3.71 | ||
| 38-14 | 09181-32151 Shim (1.25)
SKU: 09181-32151 Weight: 0.060000 Brand: Price: $ 3.71 |
Shim (1.25) | 1 | $ 3.71 | ||
| 38-15 | 09181-32153 Shim (1.30)
SKU: 09181-32153 Weight: 0.060000 Brand: Price: $ 3.71 |
Shim (1.30) | 1 | $ 3.71 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
