Suzuki DF 9.9 Parts Listings - 2012
S/N 00993F-210001 to 00993F-21XXXX

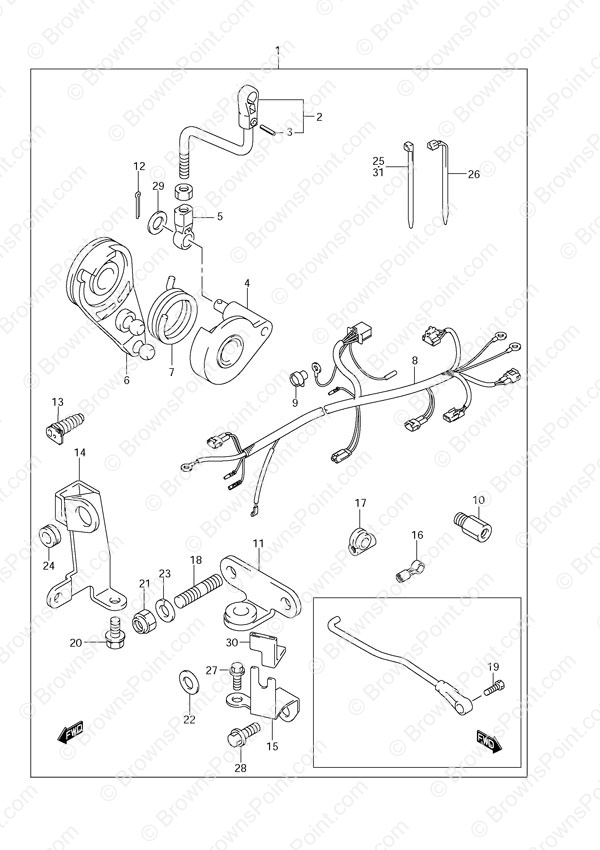

Fig. 84 - Opt: Remote Control Parts Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67130-94J11 Remote Control Parts Kit
SKU: 67130-94J11 Weight: 5.000000 Brand: Price: $ 193.14 |
Remote Control Parts Kit | 1 | $ 193.14 | ||
| 2 | 13510-93E01 Throttle Rod Assembly
SKU: 13510-93E01 Weight: 0.060000 Brand: Price: $ 13.84 |
Throttle Rod Assembly | 1 | $ 13.84 | ||
| 36 | 09205-02006 Spring Pin (2x12)
SKU: 09205-02006 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (2x12) | 1 | $ 1.07 | ||
| 4 | 19121-94J10 Throttle Control Lever
SKU: 19121-94J10 Weight: 0.100000 Brand: Price: $ 6.56 |
Throttle Control Lever | 1 | $ 6.56 | ||
| 5 | 19131-94J00 Throttle Connector
SKU: 19131-94J00 Weight: 0.060000 Brand: Price: $ 5.52 |
Throttle Connector | 1 | $ 5.52 | ||
| 6 | 19148-93E10 Throttle Drum
SKU: 19148-93E10 Weight: 0.100000 Brand: Price: $ 9.64 |
Throttle Drum | 1 | $ 9.64 | ||
| 7 | 19185-93E00 Throttle Lever Spring
SKU: 19185-93E00 Weight: 0.100000 Brand: Price: $ 5.75 |
Throttle Lever Spring | 1 | $ 5.75 | ||
| 8 | 36610-94J20 Wiring Harness Assembly
SKU: 36610-94J20 Weight: 5.000000 Brand: Price: $ 186.34 |
Wiring Harness Assembly | 1 | $ 186.34 | ||
| 9 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.60 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.60 | ||
| 10 | 41141-89E00 Steering Cable Attachment
SKU: 41141-89E00 Weight: 0.100000 Brand: Price: $ 68.18 |
Steering Cable Attachment | 1 | $ 68.18 | ||
| 11 | 43755-94J01 Steering Bracket Attachment
SKU: 43755-94J01 Weight: 0.200000 Brand: Price: $ 33.10 |
Steering Bracket Attachment | 1 | $ 33.10 | ||
| 12 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 13 | 67331-94J10 Side Cover Grommet
SKU: 67331-94J10 Weight: 0.100000 Brand: Price: $ 16.56 |
Side Cover Grommet | 1 | $ 16.56 | ||
| 14 | 67340-94J01 Remocon Cable Holder
SKU: 67340-94J01 Weight: 1.000000 Brand: Price: $ 44.08 |
Remocon Cable Holder | 1 | $ 44.08 | Clutch | |
| 15 | 67351-94J00 Remocon Cable Holder
SKU: 67351-94J00 Weight: 0.100000 Brand: Price: $ 11.23 |
Remocon Cable Holder | 1 | $ 11.23 | Throttle | |
| 16 | 67466-95200 Cable Connector
SKU: 67466-95200 Weight: 0.060000 Brand: Price: $ 5.35 |
Cable Connector | 1 | $ 5.35 | Throttle | |
| 17 | 67467-93E01 Cable Connector
SKU: 67467-93E01 Weight: 0.060000 Brand: Price: $ 7.55 |
Cable Connector | 1 | $ 7.55 | Clutch | |
| 18 | 09108-08130 Stud Bolt (8x20)
SKU: 09108-08130 Weight: 0.200000 Brand: Price: $ 5.67 |
Stud Bolt (8x20) | 2 | $ 5.67 | ||
| 19 | 09111-06064 Bolt (6x17)
SKU: 09111-06064 Weight: 0.060000 Brand: Price: $ 6.74 |
Bolt (6x17) | 1 | $ 6.74 | ||
| 20 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 21 | 09159-08059 Nut
SKU: 09159-08059 Weight: 0.060000 Brand: Price: $ 5.21 |
Nut | 2 | $ 5.21 | ||
| 22 | 09160-08059 Washer (8.5x18x1.6)
SKU: 09160-08059 Weight: 0.060000 Brand: Price: $ 1.69 |
Washer (8.5x18x1.6) | 1 | $ 1.69 | ||
| 23 | 29162-93J10 Lock Washer
SKU: 29162-93J10 Weight: 0.100000 Brand: Price: $ 1.57 |
Lock Washer | 2 | $ 1.57 | ||
| 24 | 09308-08013 Grommet
SKU: 09308-08013 Weight: 0.060000 Brand: Price: $ 1.26 |
Grommet | 1 | $ 1.26 | ||
| 25 | 09407-10404 Clamp (L:100)
SKU: 09407-10404 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp (L:100) | 2 | $ 2.52 | ||
| 26 | 09407-11401 Clamp (L:95)
SKU: 09407-11401 Weight: 0.060000 Brand: Price: $ 2.28 |
Clamp (L:95) | 2 | $ 2.28 | ||
| 27 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 28 | 01550-08167 BOLT
SKU: 01550-08167 Weight: 0.060000 Brand: Price: $ 2.84 |
BOLT | 1 | $ 2.84 | ||
| 29 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 1 | $ 1.85 | ||
| 30 | 67356-94J00 Cable Holder Cushion
SKU: 67356-94J00 Weight: 0.100000 Brand: Price: $ 12.37 |
Cable Holder Cushion | 1 | $ 12.37 | ||
| 31 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
