Suzuki DF 60A Parts Listings - 2023
S/N 06002F-340001 to 06002F-34XXXX

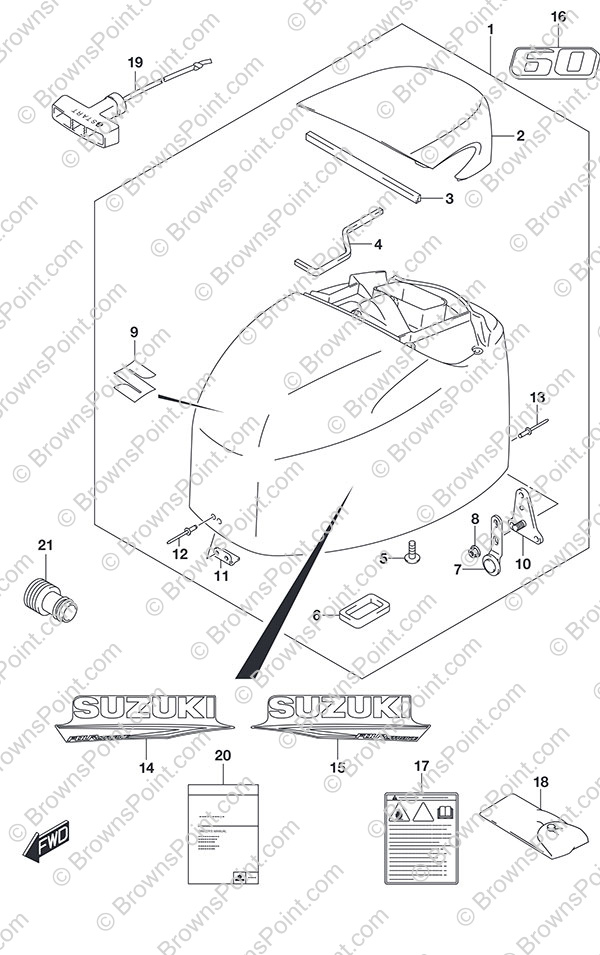

Fig. 420A - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61400-88840-YAY COVER SET,ENGIN
SKU: 61400-88840-YAY Weight: 0.000000 Brand: Price: $ 800.30 |
COVER SET,ENGIN | 1 | $ 800.30 | Black | |
| 1-2 | 61400-88850-QTN COVER SET,ENGIN
SKU: 61400-88850-QTN Weight: 0.000000 Brand: Price: $ 800.30 |
COVER SET,ENGIN | 1 | $ 800.30 | White | |
| 2-1 | 61431-88L10-YAY Tilt Up Handle
SKU: 61431-88L10-YAY Weight: 5.000000 Brand: Price: $ 84.77 |
Tilt Up Handle | 1 | $ 84.77 | Black | |
| 2-2 | 61431-88L10-QTN HANDLE,TILT UP
SKU: 61431-88L10-QTN Weight: 0.000000 Brand: Price: $ 75.47 |
HANDLE,TILT UP | 1 | $ 75.47 | White | |
| 3 | 61438-88L01 Tilt Up Handle Seal No 1
SKU: 61438-88L01 Weight: 0.250000 Brand: Price: $ 6.86 |
Tilt Up Handle Seal No 1 | 1 | $ 6.86 | ||
| 4 | 61439-88L01 Tilt Up Handle Seal No 2
SKU: 61439-88L01 Weight: 0.100000 Brand: Price: $ 10.84 |
Tilt Up Handle Seal No 2 | 1 | $ 10.84 | ||
| 5 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 5 | $ 2.16 | ||
| 6 | 61476-88L00 Air Vent Seal
SKU: 61476-88L00 Weight: 0.250000 Brand: Price: $ 7.24 |
Air Vent Seal | 1 | $ 7.24 | ||
| 7 | 61610-95J00 Rear Fastener
SKU: 61610-95J00 Weight: 0.200000 Brand: Price: $ 29.40 |
Rear Fastener | 1 | $ 29.40 | ||
| 8 | 09159-06084 Nut (NLA)
SKU: 09159-06084 Weight: 0.100000 Brand: Price: $ 1.62 |
Nut (NLA) | 1 | $ 1.62 | ||
| 9 | 68111-88L10 Emblem Mark (S)
SKU: 68111-88L10 Weight: 0.060000 Brand: Price: $ 11.30 |
Emblem Mark (S) | 1 | $ 11.30 | ||
| 10 | 61620-95J00 Rear Fastener Bracket
SKU: 61620-95J00 Weight: 0.060000 Brand: Price: $ 10.84 |
Rear Fastener Bracket | 1 | $ 10.84 | ||
| 12 | 09229-04018 Rivet
SKU: 09229-04018 Weight: 0.060000 Brand: Price: $ 1.72 |
Rivet | 2 | $ 1.72 | ||
| 13 | 09229-04005 Rivet
SKU: 09229-04005 Weight: 0.060000 Brand: Price: $ 1.66 |
Rivet | 2 | $ 1.66 | ||
| 14-1 | 61443-88L40 STRIPE,ENG CVR
SKU: 61443-88L40 Weight: 0.000000 Brand: Price: $ 30.17 |
STRIPE,ENG CVR | 2 | $ 30.17 | Black | |
| 14-2 | 61443-88L50 STRIPE,ENG CVR
SKU: 61443-88L50 Weight: 0.000000 Brand: Price: $ 30.17 |
STRIPE,ENG CVR | 1 | $ 30.17 | White | |
| 15-1 | 61453-88L40 STRIPE,ENG CVR
SKU: 61453-88L40 Weight: 0.000000 Brand: Price: $ 30.17 |
STRIPE,ENG CVR | 2 | $ 30.17 | Black | |
| 15-2 | 61453-88L50 STRIPE,ENG CVR
SKU: 61453-88L50 Weight: 0.000000 Brand: Price: $ 30.17 |
STRIPE,ENG CVR | 1 | $ 30.17 | White | |
| 16-1 | 61435-88LG0 MARK,EMBLEM REA
SKU: 61435-88LG0 Weight: 0.000000 Brand: Price: $ 9.11 |
MARK,EMBLEM REA | 1 | $ 9.11 | For Black | |
| 16-2 | 61435-88LH0 MARK,EMBLEM REA
SKU: 61435-88LH0 Weight: 0.000000 Brand: Price: $ 13.61 |
MARK,EMBLEM REA | 1 | $ 13.61 | For Whte | |
| 17 | 61458-90J01 Engine Cover Label
SKU: 61458-90J01 Weight: 0.125000 Brand: Price: $ 4.27 |
Engine Cover Label | 1 | $ 4.27 | ||
| 18 | 09800-81812 Tool Set
SKU: 09800-81812 Weight: 1.600000 Brand: Price: $ 81.82 |
Tool Set | 1 | $ 81.82 | ||
| 19 | 18210-88L00 Starter Knob Assembly
SKU: 18210-88L00 Weight: 0.500000 Brand: Price: $ 13.57 |
Starter Knob Assembly | 1 | $ 13.57 | ||
| 20 | 99011-88LA0-03B MANUAL,OWNER'S
SKU: 99011-88LA0-03B Weight: 0.000000 Brand: Price: $ 15.42 |
MANUAL,OWNER'S | 1 | $ 15.42 | ||
| 21 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.07 |
Water Flush Connector | 1 | $ 10.07 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
