Suzuki DF 9.9 Parts Listings - 2012
S/N 00993F-210001 to 00993F-21XXXX

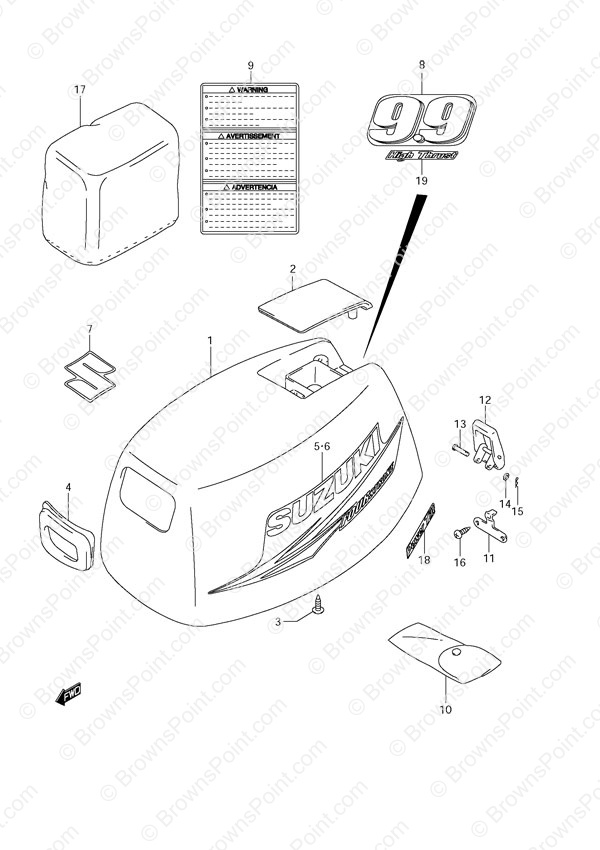

Fig. 65 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61400-94J00-0EP Engine Cover Assembly
SKU: 61400-94J00-0EP Weight: 10.000000 Brand: Price: $ 469.27 |
Engine Cover Assembly | 1 | $ 469.27 | ||
| 2 | 61431-94J00-0EP Tilt Up Handle
SKU: 61431-94J00-0EP Weight: 0.100000 Brand: Price: $ 68.64 |
Tilt Up Handle | 1 | $ 68.64 | ||
| 3 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 3 | $ 2.16 | ||
| 4 | 61622-93E03 Recoil Starter Seal
SKU: 61622-93E03 Weight: 0.080000 Brand: Price: $ 12.23 |
Recoil Starter Seal | 1 | $ 12.23 | ||
| 5 | 61443-91J40 Starboard Engine Cover Stripe
SKU: 61443-91J40 Weight: 0.250000 Brand: Price: $ 25.85 |
Starboard Engine Cover Stripe | 1 | $ 25.85 | ||
| 6 | 61453-91J40 Port Engine Cover Stripe
SKU: 61453-91J40 Weight: 0.100000 Brand: Price: $ 25.85 |
Port Engine Cover Stripe | 1 | $ 25.85 | ||
| 7 | 68111-99J00 S Emblem
SKU: 68111-99J00 Weight: 0.100000 Brand: Price: $ 5.37 |
S Emblem | 1 | $ 5.37 | ||
| 8 | 61435-99J10 Rear Emblem Mark (9.9)
SKU: 61435-99J10 Weight: 0.060000 Brand: Price: $ 14.80 |
Rear Emblem Mark (9.9) | 1 | $ 14.80 | ||
| 9 | 61458-99E31 Engine Cover Label
SKU: 61458-99E31 Weight: 0.060000 Brand: Price: $ 11.87 |
Engine Cover Label | 1 | $ 11.87 | ||
| 10 | 59800-99J01 Tool Set
SKU: 59800-99J01 Weight: 0.100000 Brand: Price: $ 54.54 |
Tool Set | 1 | $ 54.54 | ||
| 11 | 61412-93E00 Engine Cover Hook
SKU: 61412-93E00 Weight: 0.060000 Brand: Price: $ 7.28 |
Engine Cover Hook | 1 | $ 7.28 | ||
| 12 | 61610-90L00 Fastener
SKU: 61610-90L00 Weight: 0.080000 Brand: Price: $ 40.56 |
Fastener | 1 | $ 40.56 | ||
| 13 | 61616-93EL0 Lever Pin
SKU: 61616-93EL0 Weight: 0.060000 Brand: Price: $ 7.55 |
Lever Pin | 1 | $ 7.55 | ||
| 14 | 09161-04012 Washer (4.2x11x1)
SKU: 09161-04012 Weight: 0.060000 Brand: Price: $ 1.51 |
Washer (4.2x11x1) | 1 | $ 1.51 | ||
| 15 | 09385-04003 Snap Pin
SKU: 09385-04003 Weight: 0.060000 Brand: Price: $ 2.41 |
Snap Pin | 1 | $ 2.41 | ||
| 16 | 61643-94J00 Screw
SKU: 61643-94J00 Weight: 0.100000 Brand: Price: $ 3.13 |
Screw | 2 | $ 3.13 | ||
| 17 | 68110-96110 Weather Cover (NLA)
SKU: 68110-96110 Weight: 0.100000 Brand: Price: $ 17.30 |
Weather Cover (NLA) | 1 | $ 17.30 | ||
| 18 | 61447-94J00 Power Tilt Emblem Mark
SKU: 61447-94J00 Weight: 0.125000 Brand: Price: $ 4.10 |
Power Tilt Emblem Mark | 1 | $ 4.10 | ||
| 19 | 61448-94J00 High Thrust Emblem Mark
SKU: 61448-94J00 Weight: 0.125000 Brand: Price: $ 2.42 |
High Thrust Emblem Mark | 1 | $ 2.42 | ||
| 20 | 99011-94J30-03B Owners Manual DF9.9T/DF9.9TH - 2012
SKU: 99011-94J30-03B Weight: 0.250000 Brand: Price: $ 10.78 |
Owners Manual DF9.9T/DF9.9TH - 2012 | 1 | $ 10.78 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
