Suzuki DF 9.9 Parts Listings - 2012
S/N 00993F-210001 to 00993F-21XXXX

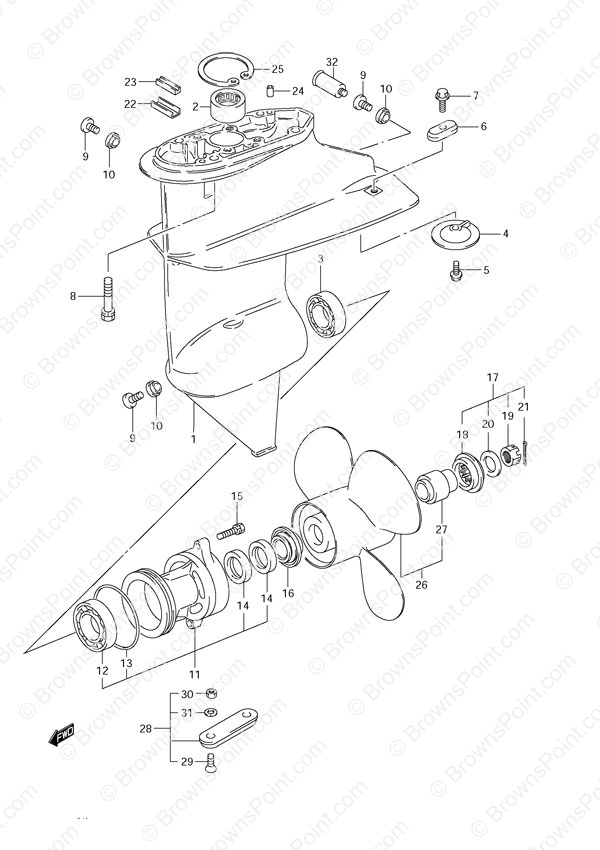

Fig. 59 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55100-94J20-0EP Gear Case Housing (NLA)
SKU: 55100-94J20-0EP Weight: 7.000000 Brand: Price: $ 650.58 |
Gear Case Housing (NLA) | 1 | $ 650.58 | ||
| 2 | 09263-15019 Bearing (15x21x12)
SKU: 09263-15019 Weight: 0.060000 Brand: Price: $ 13.41 |
Bearing (15x21x12) | 2 | $ 13.41 | ||
| 3 | 09262-25003 Bearing (25x52x15)
SKU: 09262-25003 Weight: 0.300000 Brand: Price: $ 25.27 |
Bearing (25x52x15) | 1 | $ 25.27 | ||
| 4 | 55321-939L0 Zinc Anode
SKU: 55321-939L0 Weight: 0.120000 Brand: Price: $ 4.90 |
Zinc Anode | 1 | $ 4.90 | ||
| 5 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 6 | 55321-90L00 Zinc Anode
SKU: 55321-90L00 Weight: 0.250000 Brand: Price: $ 5.39 |
Zinc Anode | 1 | $ 5.39 | ||
| 7 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 1 | $ 2.28 | ||
| 8 | 09117-08047 Bolt (8x30)
SKU: 09117-08047 Weight: 0.060000 Brand: Price: $ 5.05 |
Bolt (8x30) | 4 | $ 5.05 | ||
| 9 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 3 | $ 6.59 | ||
| 10 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 3 | $ 1.60 | ||
| 11 | 56120-90L00-0EP Propeller Shaft Bearing Housing
SKU: 56120-90L00-0EP Weight: 1.000000 Brand: Price: $ 232.92 |
Propeller Shaft Bearing Housing | 1 | $ 232.92 | ||
| 12 | 08110-60050 B1 25X47X12 BEA
SKU: 08110-60050 Weight: 0.200000 Brand: Price: $ 20.46 |
B1 25X47X12 BEA | 1 | $ 20.46 | ||
| 13 | 09280-57002 O-Ring
SKU: 09280-57002 Weight: 0.060000 Brand: Price: $ 2.65 |
O-Ring | 1 | $ 2.65 | ||
| 14 | 09289-17L02 Oil Seal (17x30x6)
SKU: 09289-17L02 Weight: 0.060000 Brand: Price: $ 7.39 |
Oil Seal (17x30x6) | 2 | $ 7.39 | ||
| 15 | 29116-93J00 Bolt (6x20)
SKU: 29116-93J00 Weight: 0.060000 Brand: Price: $ 2.55 |
Bolt (6x20) | 2 | $ 2.55 | ||
| 16 | 57632-94J00 Propeller Stopper
SKU: 57632-94J00 Weight: 0.125000 Brand: Price: $ 53.57 |
Propeller Stopper | 1 | $ 53.57 | ||
| 17 | 57630-93900 Propeller Hardware Kit DT9.9 / DT15c & DF9.9 / DF15
SKU: 57630-93900 Weight: 0.240000 Brand: Price: $ 24.27 |
Propeller Hardware Kit DT9.9 / DT15c & DF9.9 / DF15 | 1 | $ 24.27 | Optional | |
| 18 | 57633-93901 Propeller Nut Spacer
SKU: 57633-93901 Weight: 0.200000 Brand: Price: $ 31.31 |
Propeller Nut Spacer | 1 | $ 31.31 | ||
| 19 | 09141-12005 Nut
SKU: 09141-12005 Weight: 0.060000 Brand: Price: $ 9.54 |
Nut | 1 | $ 9.54 | ||
| 20 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 1 | $ 1.80 | ||
| 21 | 09204-02004 Cotter Pin
SKU: 09204-02004 Weight: 0.060000 Brand: Price: $ 1.32 |
Cotter Pin | 1 | $ 1.32 | ||
| 22 | 55331-93901 Exhaust Core Seal
SKU: 55331-93901 Weight: 0.060000 Brand: Price: $ 2.14 |
Exhaust Core Seal | 1 | $ 2.14 | ||
| 23 | 55332-92D01 Exhaust Seal Rubber
SKU: 55332-92D01 Weight: 0.060000 Brand: Price: $ 4.33 |
Exhaust Seal Rubber | 1 | $ 4.33 | ||
| 24 | 09202-06023 Knock Pin (6x10)
SKU: 09202-06023 Weight: 0.060000 Brand: Price: $ 3.00 |
Knock Pin (6x10) | 2 | $ 3.00 | ||
| 25 | 08331-41329 Circlip
SKU: 08331-41329 Weight: 0.060000 Brand: Price: $ 2.43 |
Circlip | 1 | $ 2.43 | ||
| 26 | 58100-94JA2-019 High Thrust Propeller 4x10x5
SKU: 58100-94JA2-019 Weight: 2.500000 Brand: Price: $ 298.34 |
High Thrust Propeller 4x10x5 | 1 | $ 298.34 | ||
| 27 | 58120-94JA0 Propeller Bushing (NLA)
SKU: 58120-94JA0 Weight: 0.250000 Brand: Price: $ 175.88 |
Propeller Bushing (NLA) | 1 | $ 175.88 | ||
| 28 | 55300-95500 Zinc Anode
SKU: 55300-95500 Weight: 0.240000 Brand: Price: $ 16.96 |
Zinc Anode | 1 | $ 16.96 | Optional | |
| 29 | 09126-06006 Screw (6x20)
SKU: 09126-06006 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (6x20) | 2 | $ 1.88 | Optional | |
| 30 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 2 | $ 1.80 | Optional | |
| 31 | 29162-93J00 Lock Washer
SKU: 29162-93J00 Weight: 0.060000 Brand: Price: $ 1.52 |
Lock Washer | 2 | $ 1.52 | Optional | |
| 32 | 55181-95200 Flush Hose Attachment
SKU: 55181-95200 Weight: 0.080000 Brand: Price: $ 7.16 |
Flush Hose Attachment | 1 | $ 7.16 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
